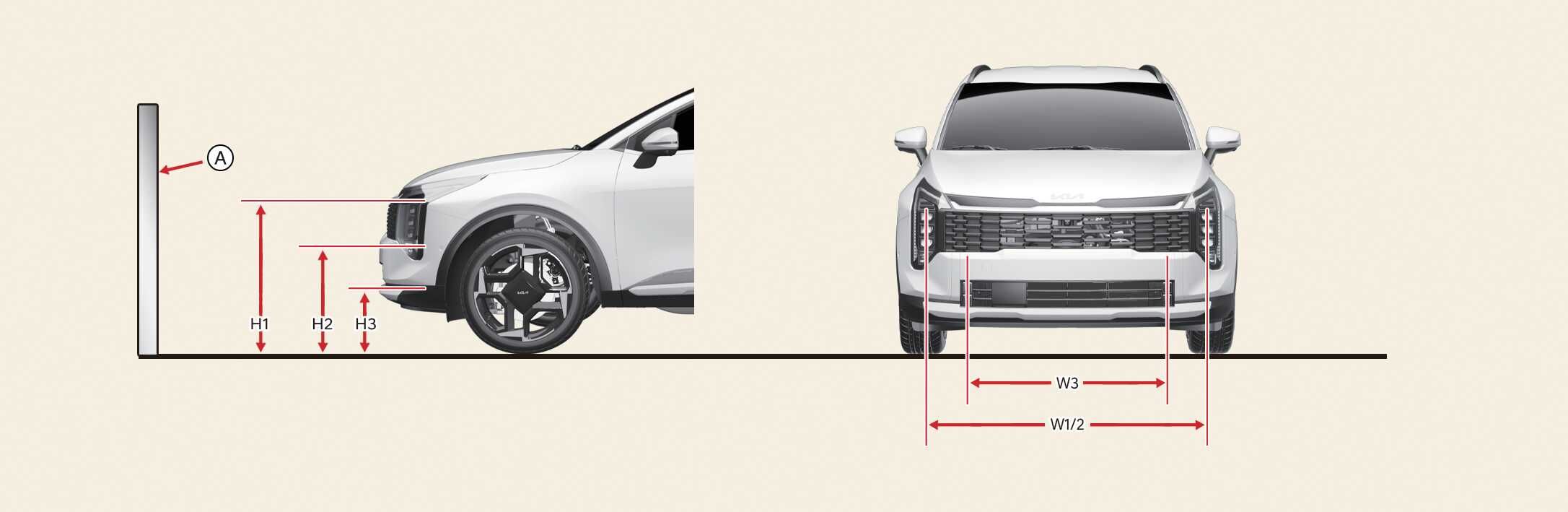

Aiming point
ONQ5075030L
A: Screen
|
Vehicle condition |
Head lamp (LED type) |
Front Fog lamp (LED type) (if equipped) |
|||||
|---|---|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
||||
|
Low/High beam |
Low/High beam |
||||||
|
H1 |
H2 |
W1 |
W2 |
H3 |
W3 |
||
|
without driver [mm (in)] |
Type A |
801.8 (31.6) |
665.9 (26.2) |
1,532 (60.3) |
1,546 (60.9) |
441.5 (17.4) |
1037.2 (40.8) |
|
Type B |
809.6 (31.9) |
660.9 (26) |
1,532 (60.3) |
1,546 (60.9) |
410.9 (16.2) |
1298 (51.1) |
|
|
with driver [mm (in)] |
Type A |
796.8 (31.4) |
689.6 (27.1) |
1,532 (60.3) |
1,546 (60.9) |
436.5 (17.2) |
1,037.2 (40.8) |
|
Type B |
804.6 (31.7) |
684.6 (27) |
1,532 (60.3) |
1,546 (60.9) |
405.9 (16) |
1,298 (51.1) |
|
