Head lamp low beam (LHD Vehicle)

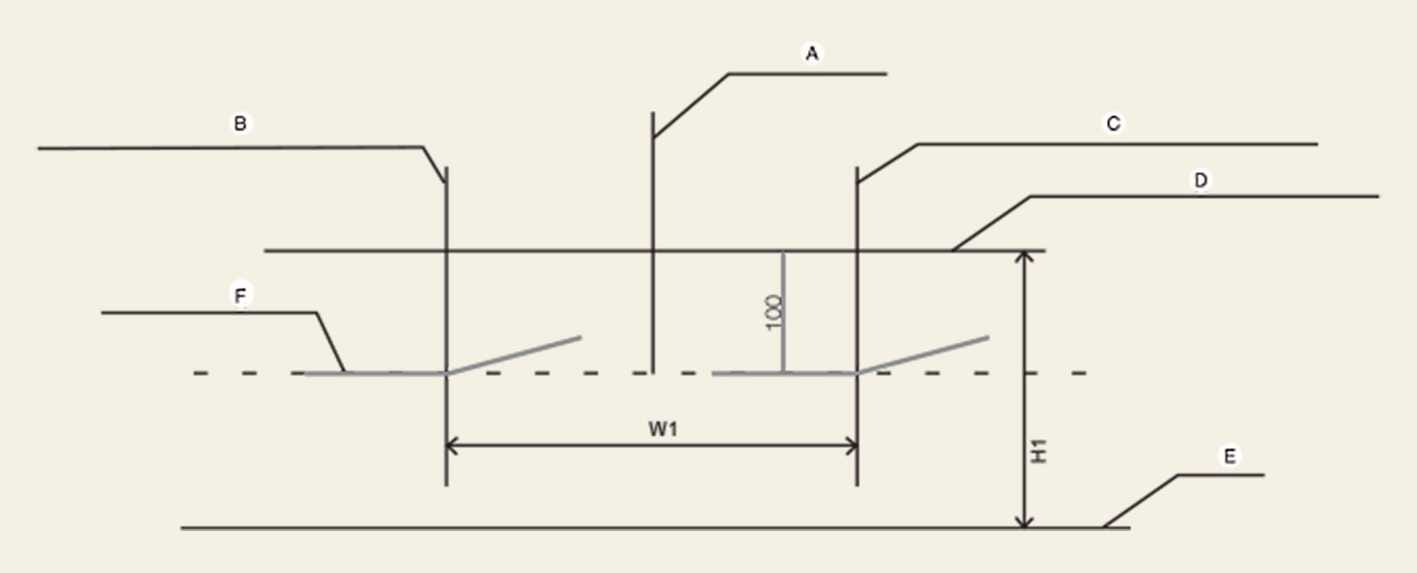

Figure 1. Based on 10m screen
OCV071055L

  • A: Vehicle axis

  • B: Vertical line of the left head lamp bulb centre

  • C: Vertical line of the right head lamp bulb centre

  • D: Horizontal line of head lamp bulb centre

  • E: Ground

  • F: Cut-Off line

Operation

  1. Turn the low beam on without driver aboard.

  2. The cut-off line should be projected in the cut-off line shown in the picture.

  3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

  4. If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
