Plug-in hybrid mode indicator (Plug-in hybrid vehicle)

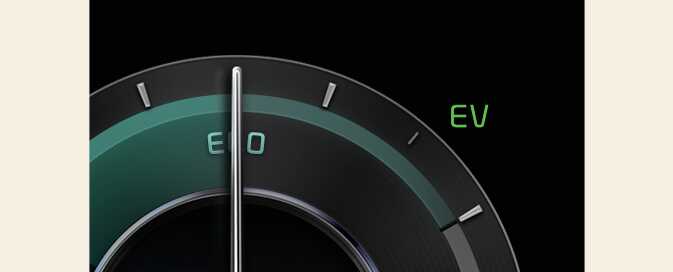

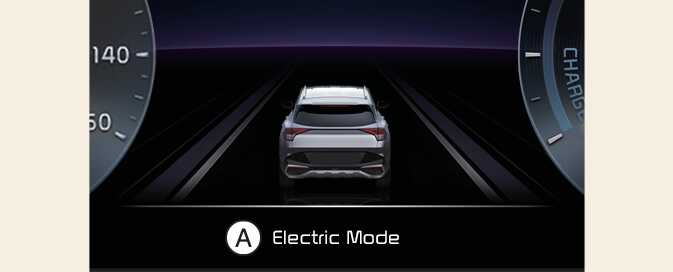

  • CD (Charge Depleting, Electric) mode: The high-voltage (hybrid) battery is used to drive the vehicle.

    ONQ5EP031416L0

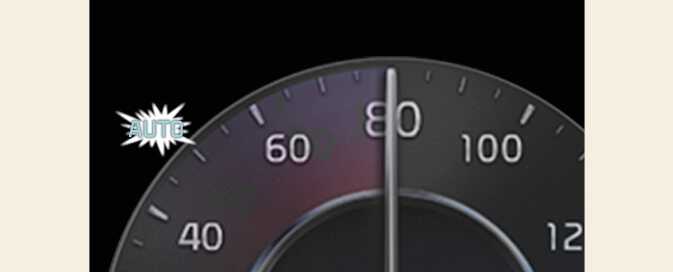

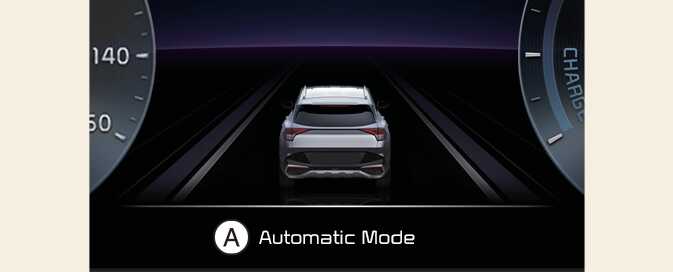

  • AUTO mode: The AUTO mode will be automatically selected from either from Electric (CD) mode or Hybrid (CS) mode by the system according to the driving condition.

    ONQ5P041107N

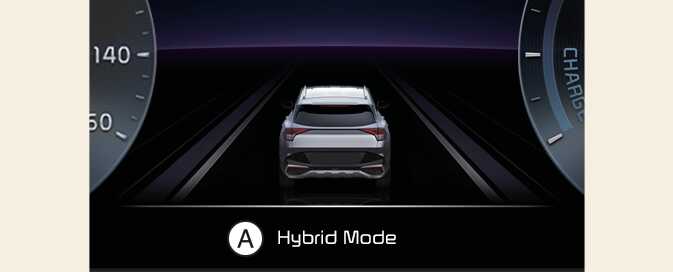

  • CS (Charge Sustaining, Hybrid) mode: The high-voltage (hybrid) battery and gasoline engine is used to drive the vehicle.

    ONQ5P041108N
ONQ5P041120N0
ONQ5P041121N0
ONQ5P041122N0

A corresponding message is displayed to indicate the selected mode.
