LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

Table 1. Type A
	Mode
	Driving Assist	Trip Computer	Turn By Turn (TBT)*	User Settings*	Information/Master Warning
Up/Down	Forward Collision-Avoidance Assist Lane Keeping Assist Blind-Spot Collision-Avoidance Assist* Smart Cruise Control* Lane Following Assist Highway Driving Assist*	Range ^*1	Route Guidance	Driver Assistance*	Driving force distribution (AWD) ^*
	Driver Attention Warning	Drive Info	Destination Info	Eco Vehicle	TPMS
		Since Refueling		Cluster	Engine Temperature
		Accumulated Info		Lights*	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
		Energy Flow		Door*
		Digital Speedometer		Convenience*
				Units
				Language
				Reset

Table 2. Type B
	Mode
	Driving Assist	Trip Computer	Turn By Turn (TBT)*
Up/Down	Forward Collision-Avoidance Assist Lane Keeping Assist Blind-Spot Collision-Avoidance Assist* Smart Cruise Control* Lane Following Assist Highway Driving Assist*	Range ^*1	Route Guidance
	Driver Attention Warning	Drive Info	Destination Info
		Since Refueling
		Accumulated Info
		Energy Flow
		TPMS
		Engine Temperature
		Driving Force Distribution (AWD)*
		Digital Speedometer

The information provided may differ depending on which functions are applicable to your vehicle.

: if equipped

1: For Plug-in Hybrid vehicle

NOTE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

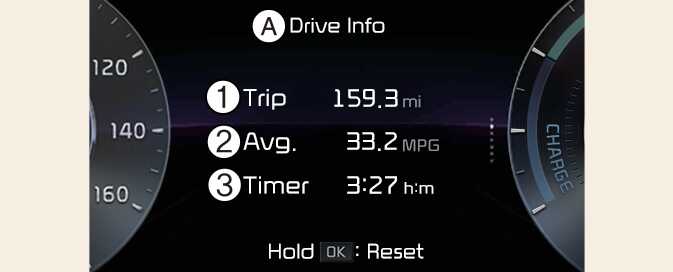

Trip computer mode

A: Drive info

Accumulated trip distance
Average fuel efficiency
Total driving time

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and timer.

For more details, refer to Trip information (trip computer).

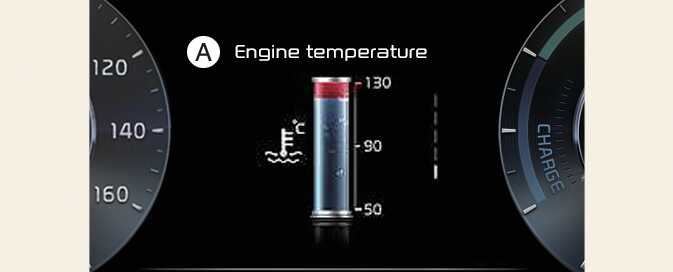

Engine coolant temperature

A : Engine temperature

This gauge indicates the temperature of the engine coolant when the engine is running.

NOTE

When the gauge indicator gets out of the normal range, toward the "130 or H(Hot)" position, it indicates overheating of the engine. It may damage the engine. Do not continue driving with the overheated engine.

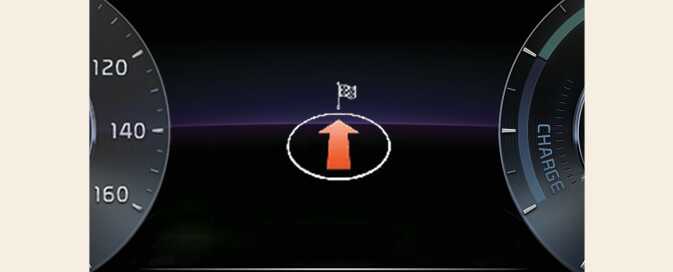

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

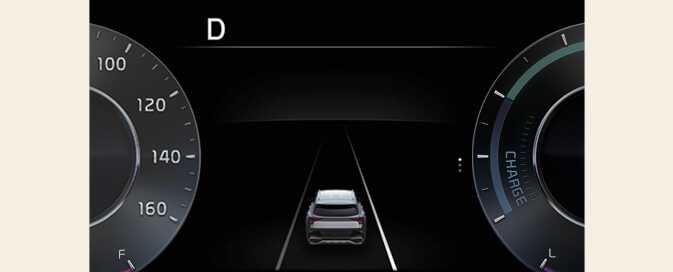

Driving Assist mode

This mode displays the state of:

Lane Safety
Smart Cruise Control
Driver Attention Warning

Information mode

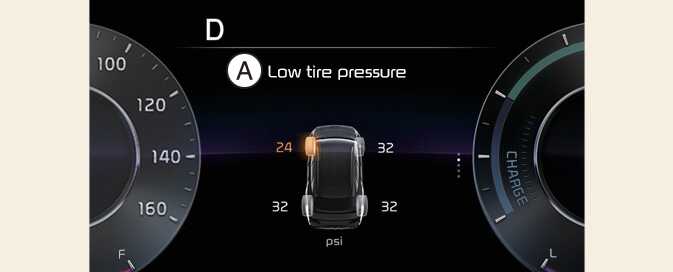

Tire Pressure

A: Low tire pressure

This mode displays the state of:

Engine temperature
Tire pressure
AWD traction: (if equipped)

Tire pressure status

This mode displays information related to Tire Pressure.

For more details, refer to Tire Pressure Monitoring System (TPMS).

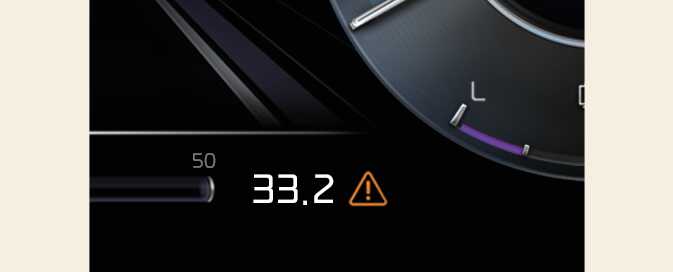

Master warning mode

This warning light informs the driver the following situations.

LED headlamp malfunction
Lamp malfunction
High Beam Assist malfunction: (if equipped)

At this time, a Master Warning icon ( ) will appear beside the User Settings icon ( ), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

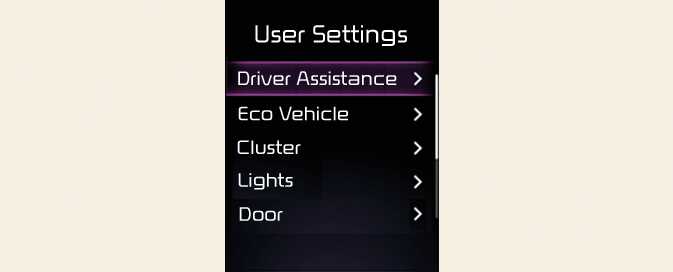

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Driver Assistance
Eco Vehicle
Cluster
Lights
Door
Convenience
Units
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance


Items	Explanation
Driving Convenience	To adjust Highway Driving Assist Highway Driving Assist Highway Auto Speed Zone Slowdown Auto Highway Speed Change To select the functions For more details, refer to Highway Driving Assist (HDA).
Speed Limit*	Speed Limit Offset To adjust the Speed Limit Offset Speed Limit Assist/Speed Assist Warning/Off To select the function of Intelligent Speed Limit Assist For more details, refer to Intelligent Speed Limit Assist (ISLA).
Warning Timing	Standard/Late To select the Warning Timing
Warning Volume	High/Medium/Low To select the Warning Volume
Driver Attention Warning	Leading Vehicle Departure Alert To select the function Inattentive Driving Warning To select the function For more details, refer to Driver Attention Warning (DAW).
Forward Safety ^*	To adjust Forward Collision-Avoidance Assist. Active Assist/Warning Only/Off To select the functions For more details, refer to Forward Collision-Avoidance Assist (FCA) (Front Camera Only)
Lane Safety	To adjust Lane Keeping Assist Assist/Warning Only/Off To select the functions For more details, refer to Lane Keeping Assist (LKA).
Blind-Spot Safety ^*	Safe Exit Warning To activate or deactivate Safe Exit Warning. For more details, refer to Safe Exit Warning (SEW). Active Assist/Warning Only/Off For more details, refer to Blind-Spot Collision-Avoidance Assist (BCA).
Parking Safety ^*	Surround View Monitor Auto On Parking Distance Warning Auto On Rear Cross-Traffic Safety To Activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist. Rear Active Assist/ Rear Warning Only/Off For more details, refer to Rear Cross-Traffic Collision-Avoidance Assist (RCCA). For more details, refer to Reverse Parking Collision-Avoidance Assist (PCA).

The information provided may differ depending on which systems are applicable to your vehicle.

2. Eco Vehicle


Items	Explanation
Coasting Guidance	Coasting Gudiance Sound On/Sound Off To select the Coasiting Guidance.
Start coasting	Early/Normal/Late To select the Start Coasting.
Locking Charging Cable	Always lock/Lock while charging/Do not lock To select the Locking Charging Cable
Charge Guidance Sound	High/Medium/Low/Off To select the Charge Guidance Sound.

3. Cluster


Items	Explanation
Theme Selection	Link to Drive Mode Theme A/Theme B/Theme C/Dynamic If this item is checked, the cluster theme will change accordingly.
Wiper/Lights Display	Activate or Deactivate
Traffic Signs	Activate or Deactivate
Icy Road Warning	Activate or Deactivate
Cluster Voice Guidance Volume	0~3 Level To adjust the Cluster Voice Guidance Volume.
Welcome Sound	Activate or Deactivate

4. Lights


Items	Explanation
Illumination	1~20 Level To adjust the instrument cluster illumination.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. For more details, refer to Lighting.
Ambient Light Brightness	4/3/2/1/Off To adjust the brightness of Ambient Light.
Ambient Light Color	8 colors To select the color of Ambient Light.
Headlamp Delay	If this item is checked, the headlamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated. For more details, refer to High Beam Assist (HBA).

The information provided may differ depending on which functions are applicable to your vehicle.

5. Door


Items	Explanation
Automatically Lock	Enable on shift (for Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.) Enable on speed (for Automatic transmission): All doors will be automatically locked when the vehicle speed exceeds 9.3 mph (15 km/h) Off: The auto door unlock operation will be canceled. If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.
Automatically Unlock	On shift to P (for Automatic transmission): All doors will be automatically unlocked if the gear is shifted from R (Reverse), N (Neutral), or D (Drive position to P (Park) position. (With the Engine ON, it is activated.) Vehicle Off: All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position. Off: The auto door unlock operation will be canceled.
2 Press Unlock	If this item is checked, the two press unlock will be activated. Press the door unlock button once to unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.
Horn Feedback	To Select the functions.
Power Liftgate	If this item is checked, Power Liftgate will be activated.
Power Liftgate Opening Speed	Fast/Normal To select the power liftgate speed.
Power Liftgate Opening Height	Level 1/Level 2/Level 3/Full Open/User Height Setting To select the height. For more details, refer to Power liftgate.
Smart Liftgate	To activate or deactivate the Smart Liftgate. For more details, refer to Smart Liftgate with Auto Open.
Remote Window Control (if equipped)	Activate To select the functions.

The information provided may differ depending on which systems are applicable to your vehicle.

6. Convenience


Items	Explanation
Seat Easy Access	Off/Normal/Extended To select the seat movement
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Service Interval	Enable Service Interval/Adjust Interval/Reset To select the Service Interval.
Welcome Mirror/Light	On Door Unlock/On Driver Approach To select the welcome mirror/light function.
Wireless Charging System	Activate or Deactivate
Auto Rear Wiper (in R)	If this item is checked, the Auto Rear Wiper will be activated when the front wiper is On and the gear is selected in R (Reverse).

The information provided may differ depending on which functions are applicable to your vehicle.

7. Units


Items	Explanation
Speedometer Unit	mph, km/h To select the Speedometer unit.
Fuel Economy Unit	US gallon, UK gallon To select the Fuel economy unit. For more details, refer to Trip information (trip computer).
Temperature Unit	°F/°C To select the Temperature unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

The information provided may differ depending on which functions are applicable to your vehicle.

8. Language


Items	Explanation
Language	To select the language.

9. Reset


Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.

*: if equipped
