Utility information view

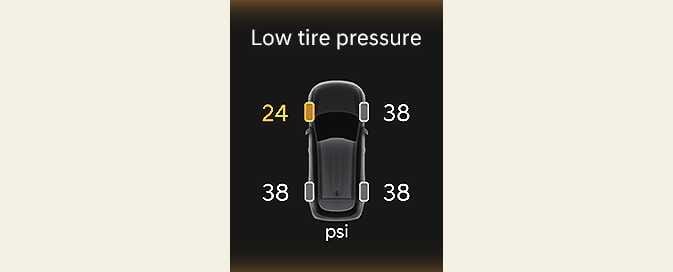

Low tire pressure warning display

ONQ5H035192L

A: Tire pressure

Information related to tire pressure

For more details, refer to each system information in Tire Pressure Monitoring System (TPMS).

Drive info display

This display shows the trip distance (1), the average fuel efficiency (2), and the total driving time (3) information once per one ignition cycle.

OMQ4A033112

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

  • Fuel efficiency is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • The information will automatically reset when the driver's door is opened after the vehicle is turned off, or approximately 3 minutes have passed after the vehicle is turned off.

  • If you press "OK" button for more than approximately 1 second after the Driving Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

NOTE

The vehicle must be driven for a minimum of 0.19 miles (300 m) since the last ignition cycle before the average accumulated driving information is recalculated.

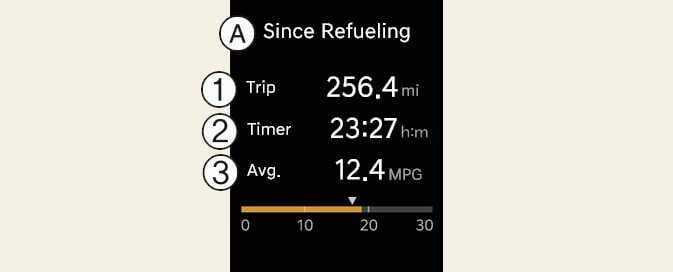

Information since refueling

This display shows the trip distance, the average fuel efficiency, and the instant fuel efficiency (or the total driving time) since refueling.

OMQ4A033110

A: Since Refueling

  1. Trip

  2. Timer

  3. Avg.

  • Information since refueling is calculated after the vehicle has run for more than approximately 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the information since refueling is displayed, the information will be reset.

  • When driving after refueling, the information will be automatically reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

NOTE

The vehicle must be driven for a minimum of 0.19 miles (300 m) since the last ignition cycle before the average accumulated driving information is recalculated.

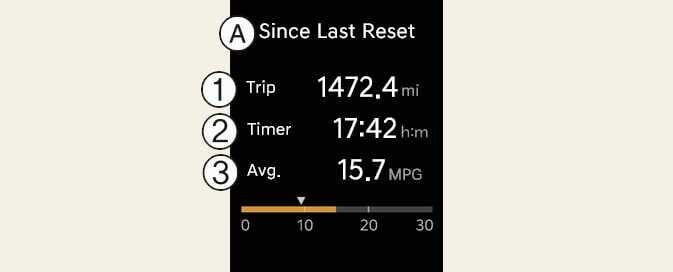

Accumulated driving information mode

This display shows the accumulated trip distance, the average fuel efficiency, and the total driving time.

OMQ4A033111

A: Since Last Reset

  1. Trip

  2. Timer

  3. Avg.

  • Accumulated information is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Fuel economy

This information is always displayed at the bottom center of the Full LCD cluster.

OMQ4PH034164N

  1. Average energy economy

  2. Instant energy economy
Average Fuel Economy (1)

  • The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy resets.

    • Fuel economy range: 0-99.9 MPG or km/L, L/100 km

NOTE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 0.03 mi (50 m) since the ENGINE START/STOP button is turned to ON.

Instant Fuel Economy (2)

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 6.2 mph (10 km/h).

    • Fuel economy range:

      0.0-30 km/L, L/100 km or 0.0-50.0 MPG

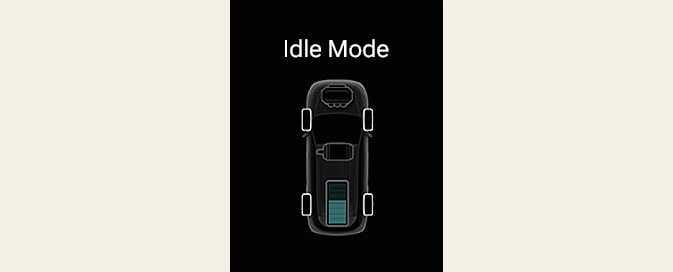

Energy flow

OMQ4PHQ013024L

The hybrid system informs the driver about its energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

* For more details, refer to Energy flow.
