Charging status indicator lamp for portable charger

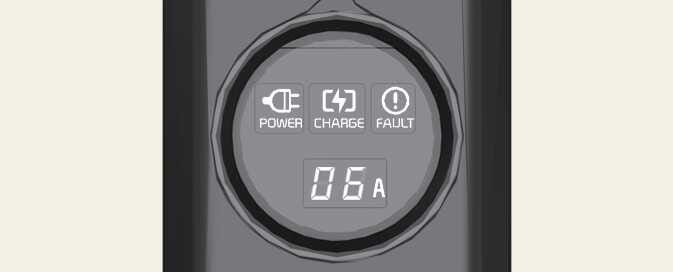

Figure 1. Control Box
ONQ5PQ015010N

Indicator

Details

POWER
ONQ5PQ015011N

On: Power on

CHARGE
ONQ5PQ015012N

On: Charge

Blink: Current limit due to high plug temperature or high Internal temperature

FAULT
ONQ5PQ015013N

Blink: Charging interrupt

CURRENT
ONQ5PQ015014N

Display setting current or trouble shoot code

CHARGE LEVEL

30

30 A

24

24 A

20

20 A

16

16 A

12

12 A

10

10 A

08

8 A

06

6 A

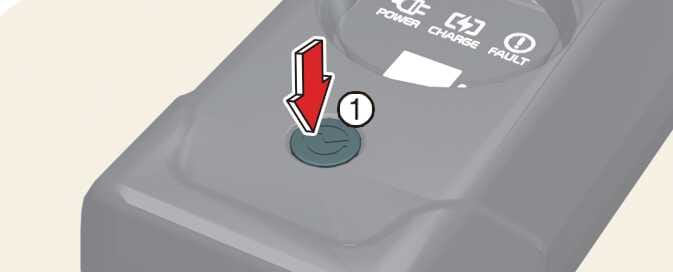

The charging current changes each time the button (1) is pressed, in the following sequence:

  • Detachable Connector (14-50P)

    • 16 A > 20 A > 24 A > 30 A

  • Detachable Connector (5-15P)

    • 6 A > 8 A > 10 A > 12 A

Figure 2. Control box
ONQ5PQ015021N
