Front view function

OKA4053150L
ONQ5H054096

The front view function displays the vehicle's front situation on the navigation system according to the driver's settings, assisting in safe driving.

Parking

While parking, the front view of the Surround View Monitor is activated under the following conditions:

  • P (Park) or N (Neutral) or D (Drive) position with a speed slower than 6 mph (10 km/h), Pressing the Parking/View button (1).

  • Shifting from R (Reverse) to N (Neutral) or D (Drive) and the vehicle speed is slower than 6 mph (10 km/h).

  • Forward Parking Distance Warning warns the driver when the vehicle is in D (Drive)

    * (If Setup > Vehicle > Driver Assistance > Parking Safety > Surround View Monitor Auto On on the infotainment system selected)

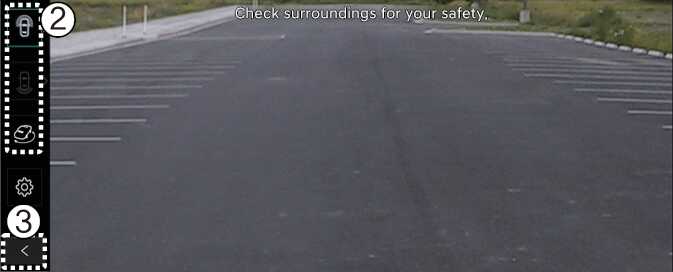

Pressing the view switching button (2) on the Surround View Monitor to select the Top View, Front view, Side view, or Wide View.

While parking, the front view of the Surround View Monitor will be turned off under the following conditions:

  • Shifting to P (Park) or R (Reverse)

  • Pressing the Parking/View button (1)

  • Pressing the back button (3) on the Surround View Monitor screen

  • Pressing the infotainment system power button (4)

  • Driving faster than 6 mph (10 km/h)

NOTE

When the front view is activated, the last used view is displayed.
