Replacing lights (LED type)

If the LED lamp is not functioning, please have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

If the high-mounted stop lamp (LED) is not functioning, have your vehicle inspected by an authorized Kia dealer. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing front lights (LED type)

If the front lights are not functioning, have your vehicle inspected by an authorized Kia dealer.

: if equipped

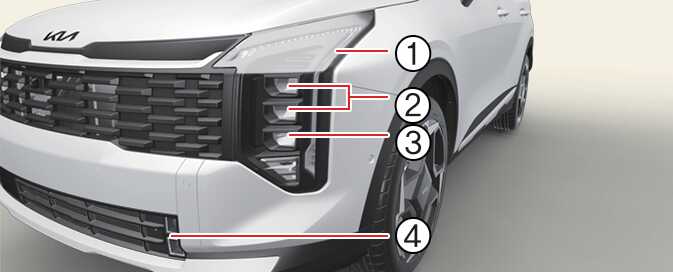

Figure 1. Type A
ONQ5076032L

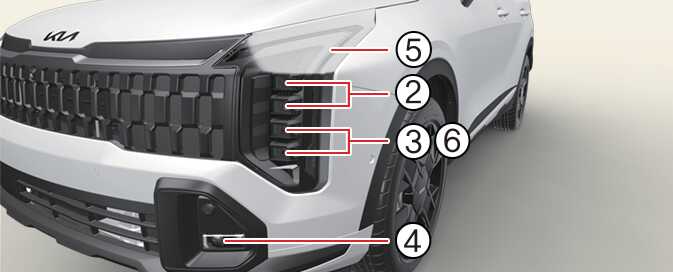

Figure 2. Type B
ONQ5XL076001L

  1. Day time running lamp/Position lamp/Front turn signal lamp/Front side marker lamp (LED type)

  2. Headlamp (Low) (LED type)

  3. Headlamp (High) (LED type)

  4. Headlamp (Low/High) (LED type)

  5. Front fog lamp (LED type)

Replacing side repeater lamp (LED type)

If the side repeater lamp is not functioning, have your vehicle inspected by an authorized Kia dealer.

: if equipped

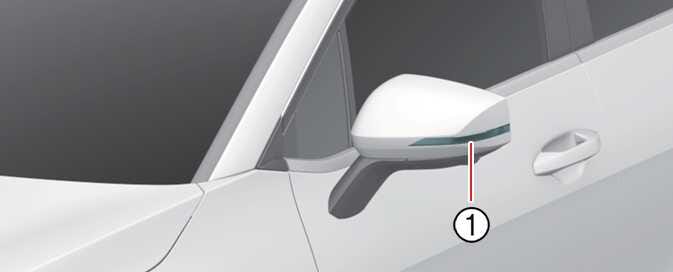

ONQ5H074017

  1. Side repeater lamp (LED type)*

Replacing rear lights (LED type)

If the rear lights are not functioning, have your vehicle inspected by an authorized Kia dealer.

: if equipped

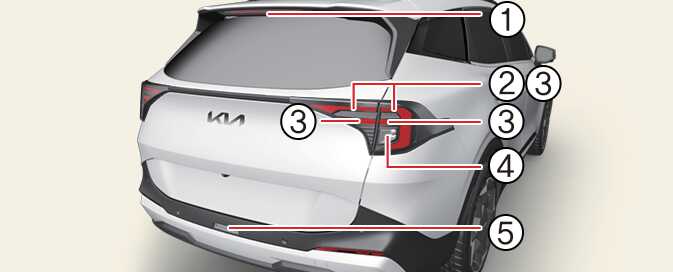

Figure 3. Rear combination lamp (Type A)
ONQ5AH076004

  1. High mounted stop lamp (LED type)

  2. Tail lamp/Stop lamp (LED type)

  3. Rear turn signal lamp (LED type)

  4. Rear turn side marker lamp (LED type)

  5. Back up lamp (LED type)

Replacing interior lights (LED type)

If the interior lights are not functioning, have your vehicle inspected by an authorized Kia dealer.

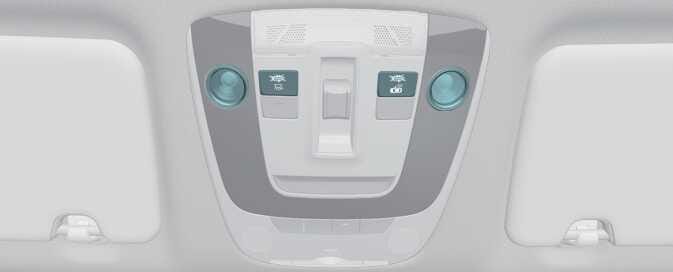

Figure 4. Map lamp
ONQ5036037L
Figure 5. Personal lamp (if equipped)
ONQ5031038
Figure 6. Luggage compartment lamp
ONQ5H031012
