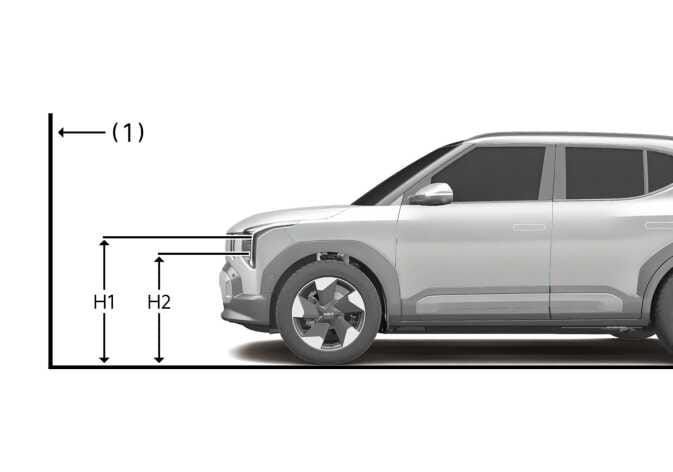

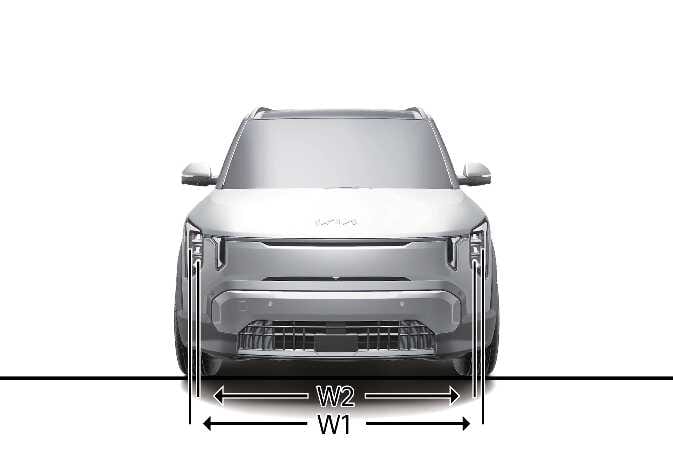

Aiming point
 N_QVe27_B12_043_E |
 N_QVe27_B12_044_E |
-
Screen
|
Vehicle condition |
Head lamp (LED type) |
|||
|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
|||
|
H1 (LOW) |
H2 (HIGH) |
W1 (LOW) |
||
|
Head lamp |
Without driver [mm (inches)] |
836 (32.9) |
704 (27.7) |
1,467 (57.8) |
|
With driver [mm (inches)] |
830 (32.7) |
698 (27.5) |
||

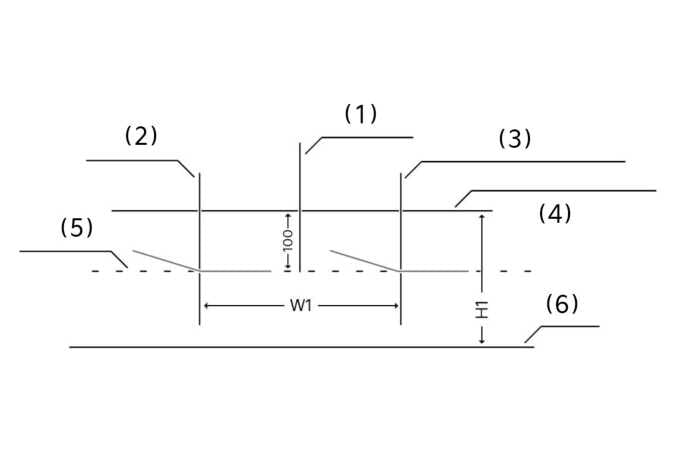

Head lamp low beam (LHD Vehicle)
-
Vehicle axis
-
Vehicle line of the left head lamp bulb center
-
Vehicle line of the right head lamp bulb center
-
Horizontal line of the head lamp bulb center
-
Cut-off line
-
Ground
-
Turn the low beam on without driver aboard.
-
The cut-off line should be projected in the cut-off line shown in the picture.
-
When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
-
Disengage the parking brake and shift to N (Neutral), In addition, if headlamp leveling device is equipped, adjust the headlamp leveling device switch to 0.

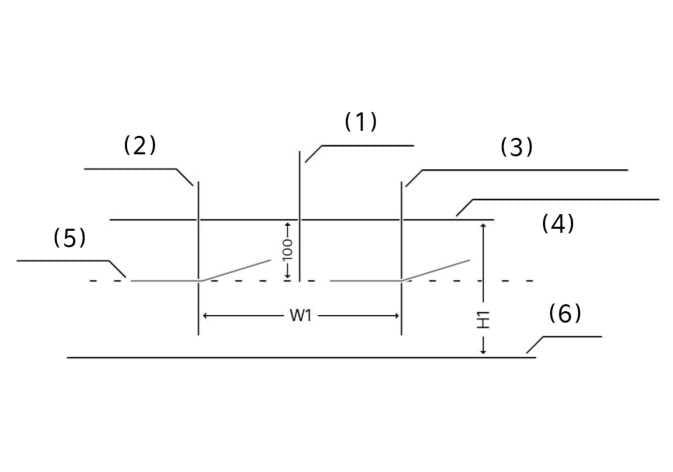

Head lamp low beam (RHD Vehicle)
-
Vehicle axis
-
Vehicle line of the left head lamp bulb center
-
Vehicle line of the right head lamp bulb center
-
Horizontal line of the head lamp bulb center
-
Cut-off line
-
Ground
-
Turn the low beam on without driver aboard.
-
The cut-off line should be projected in the cut-off line shown in the picture.
-
When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
-
Disengage the parking brake and shift to N (Neutral), In addition, if headlamp leveling device is equipped, adjust the headlamp leveling device switch to 0.
