Automatic climate control system

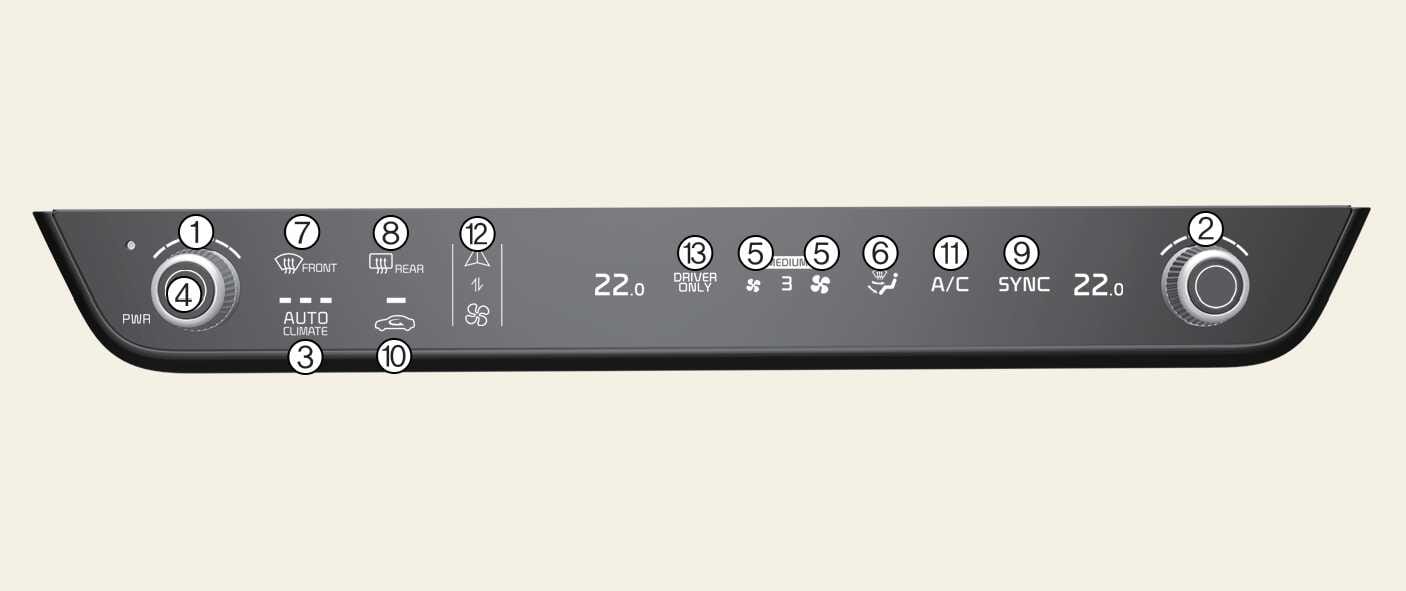

Figure 1. Type A
OSG2PH042302L

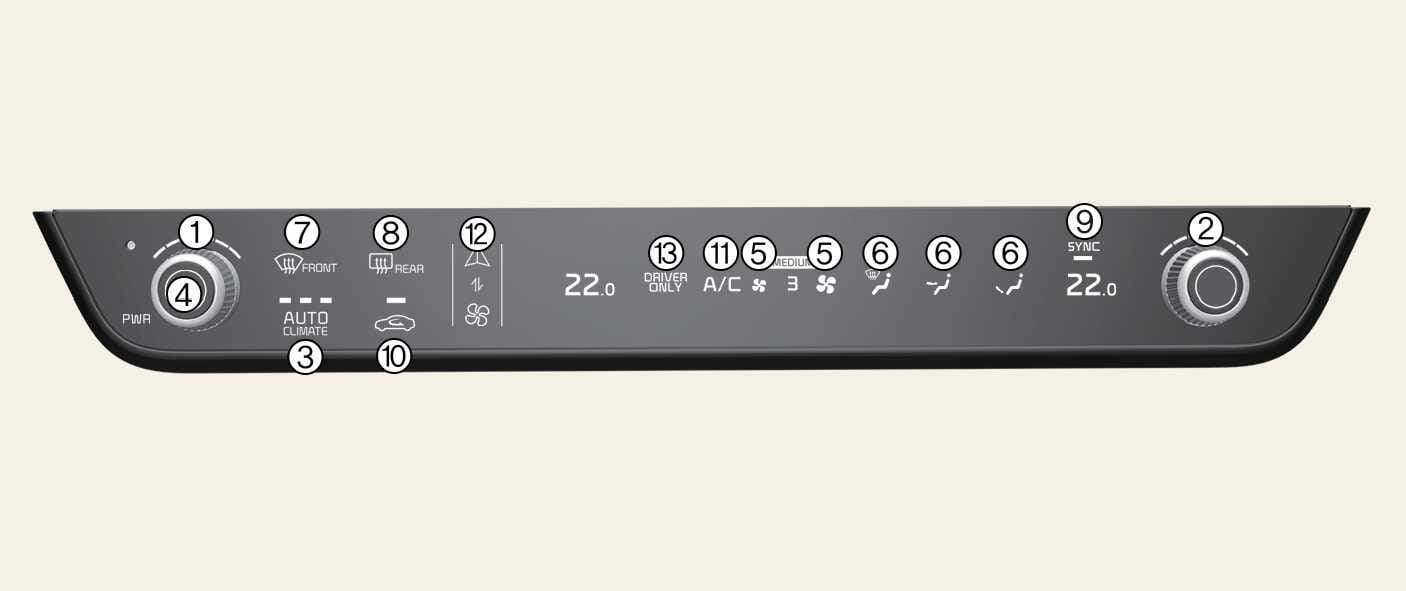

Figure 2. Type B
OSG2PH042303L

  1. Driver's temperature control knob

  2. Passenger's temperature control knob

  3. AUTO (automatic control) button

  4. OFF button

  5. Fan speed control button

  6. Mode selection button

  7. Front windscreen defroster button

  8. Rear window defroster button

  9. SYNC button

  10. Air intake control button

  11. Air conditioning (A/C) button

  12. Infotainment/climate control mode switching button

  13. Driver's side only button

CAUTION

Operating the blower when the vehicle is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
