Highway Driving Assist (HDA): (if equipped)

OSG2H051068

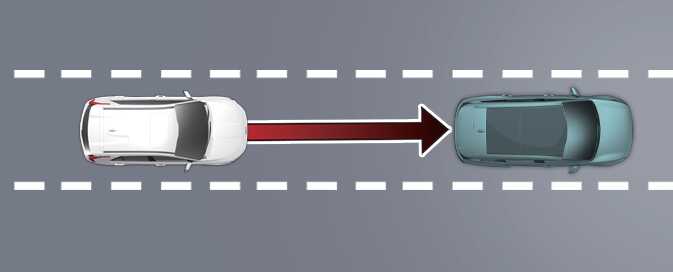

Highway Driving Assist detect lanes and vehicles ahead, and help maintain the distance from the vehicle ahead and the set speed, and center your vehicle in the lane while driving on the highway (or motorway).

NOTE

  • Highway Driving Assist is available only on controlled access road of certain highways.

    Controlled access road indicates roads with limited entrances and exits that allow uninterrupted high speed traffic flow. Only passenger cars and motorcycles are allowed on controlled access roads.

  • Additional highways may be expanded by future navigation updates.

Highway Driving Assist operates on main roads of highways (or motorways), and does not operate on interchanges or junctions.

Detecting sensor

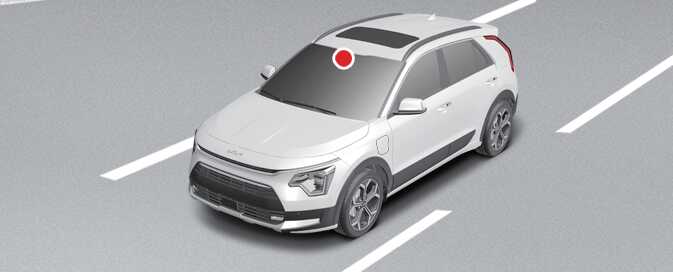

Figure 1. Front view camera
OSG2PH042008L7

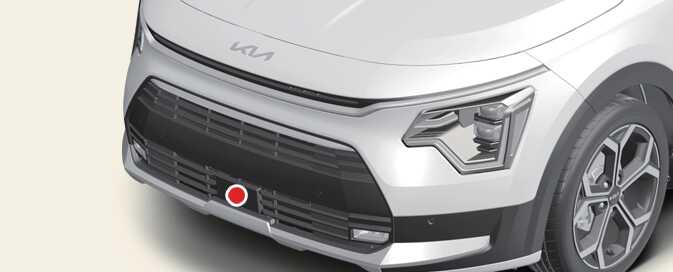

Figure 2. Front radar
OSG2H0510222

Refer to the picture above for the detailed location of the detecting sensors.

CAUTION

For more details on the precautions of the detecting sensors, refer to Forward Collision-Avoidance Assist (FCA) (Sensor Fusion).
