Engine compartment

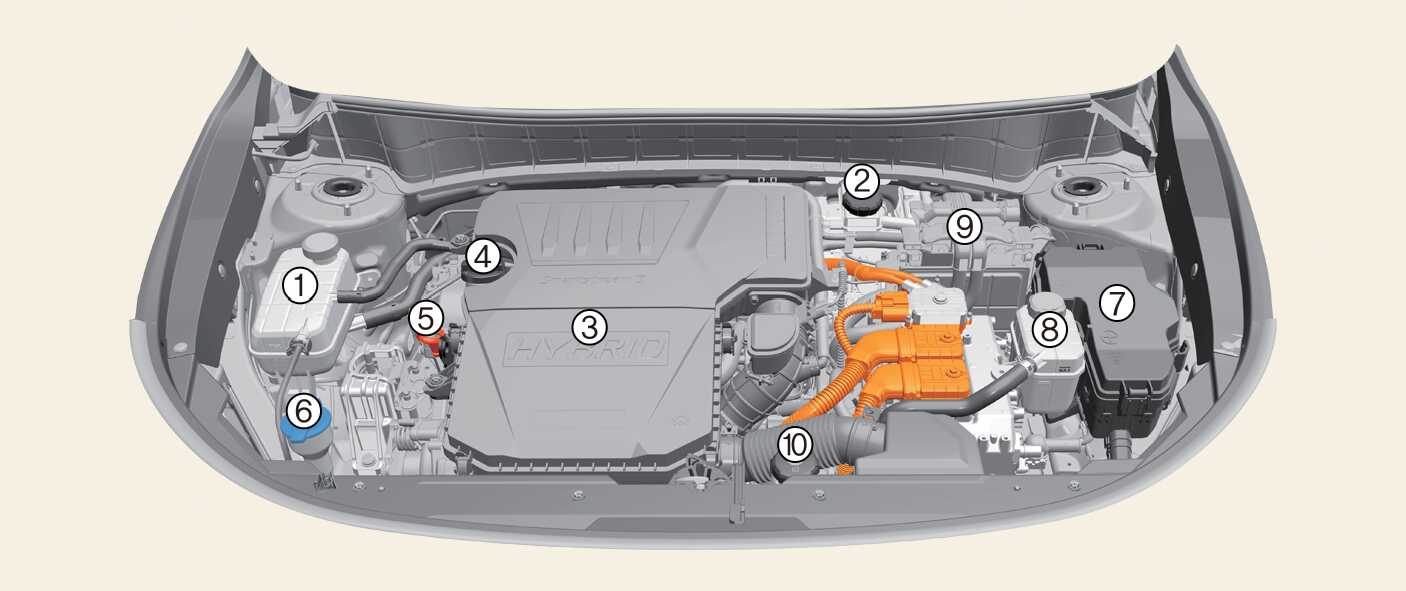

Figure 1. Smartstream G1.6 GDi HEV
OSG2H0710010
Figure 2. Smartstream G1.6 GDi PHEV
OSG2PH072001L0

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Brake fluid reservoir Brake fluid

  3. Air cleaner Air cleaner filter

  4. Engine oil filler cap Engine oil

  5. Engine oil dipstick Engine oil

  6. Windscreen washer fluid reservoir Washer fluid

  7. Fuse box Replacing engine compartment fuse

  8. Inverter coolant reservoir Checking the inverter coolant level (HEV), Checking the inverter coolant level (PHEV)

  9. Electric Control Unit (ECU) Emergency starting

  10. Engine clutch actuator reservoir Engine clutch actuator fluid
