Precautions for charging AC and Trickle charger* (Portable charging cable*) (AC charging)

1. After opening the charging door, check the charging symbol at the bottom of the warning label.

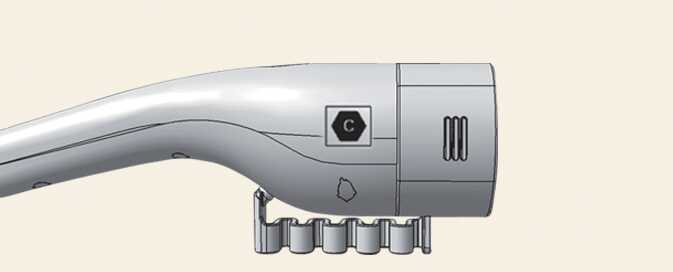

2. Check the charging connector symbol of the AC and Trickle charger cable.

3. After checking the alphabet letter of the charging symbol, proceed the charging step.

   Refer to Electric charging label symbol table (For Europe).

4. Risk of failure, fire, injury, etc. are expected when using the charging connector with an unmatched symbol.

* : Depending on your region, this cable may not be provided in your vehicle.

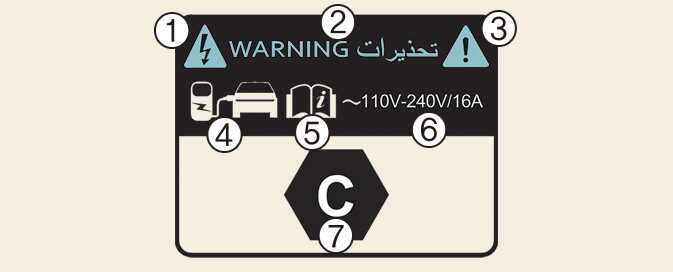

Electric charging label (For Europe)

ONQ5EPQ011003L

The electric charging label is attached on the charging door.

1 ~ 3: Warning for high voltage

4: Identifier for charging door

5: For more details, refer to How to check the symbol on the charging label (For Europe).

6: Charging voltage and current - ( ) AC single phase.

7: Identifiers for charging type. For more details, refer to Electric charging label symbol table (For Europe).

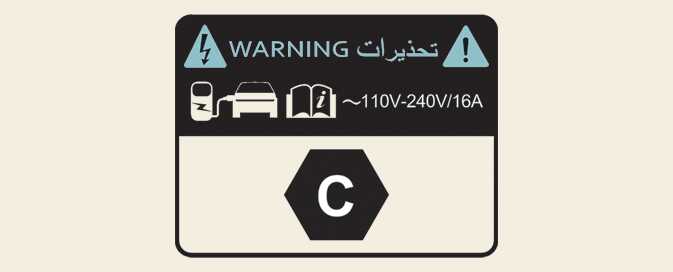

Electric charging label symbol table (For Europe)

AC and Trickle charger* charging

Supply type	Standard	Configuration	Type of Accessory	Voltage range	Identifier
AC	EN 62196-2	TYPE 2	Vehicle connector and vehicle inlet	≤480V RMS	OMQ4PH083004L0

* : Depending on your region, ICCB cable for trickle charge may not be provided in your vehicle.
