Reinstalling headrest

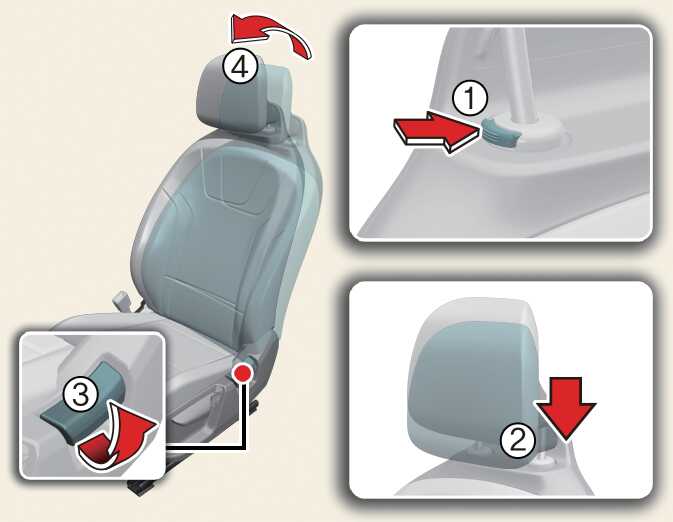

Figure 1. Type A
OSG2PH032039N_3

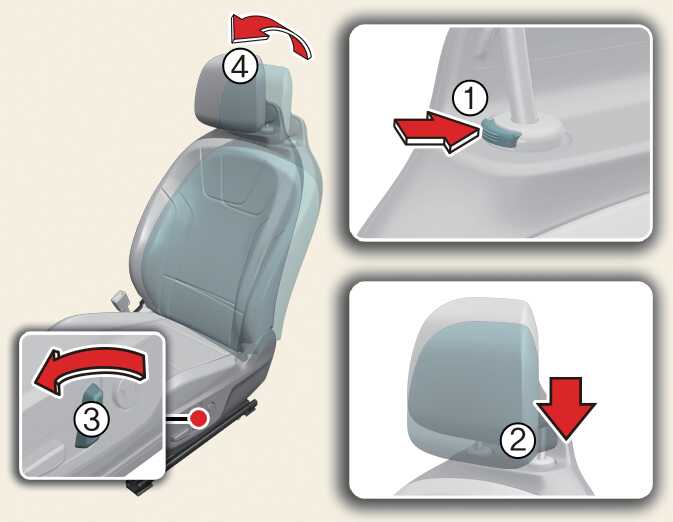

Figure 2. Type B
OSG2PH032040N_3

To reinstall the headrest:

  1. Put the headrest poles (2) into the holes while pressing the release button (1).
  2. Recline the seatback (4) with the recline lever or switch (3).
  3. Adjust the headrest to the appropriate height.
WARNING

Headrest Reinstallation

To reduce the risk of injury to the head or neck, always make sure the headrest is locked into position and adjusted properly after reinstalling.
