Blind-Spot Collision-Avoidance Assist settings

Blind-spot safety

OSG2PH052103L

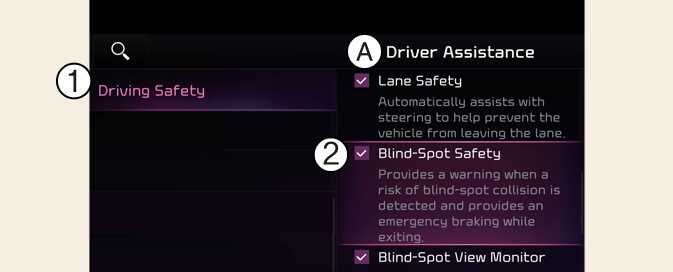

OSG2PH052196N

A: Driver Assistance

  1. Driving Safety

  2. Blind-Spot Safety

With the vehicle on, touch User Settings → Driver Assistance → Driving Safety → Blind-Spot Safety on the instrument cluster or Settings → Vehicle → Driver Assistance → Driving Safety → Blind-Spot Safety on the infotainment system.

  • Blind-Spot Safety: Blind-Spot Collision-Avoidance Assist will warn you with a warning message and an audible warning depending on the collision risk level while driving, and will provide emergency braking depending on the collision risk level for parallel parking exit.

ONQ5041145L

A: Blind-Spot Safety System is Off

When activating Blind-Spot Collision-Avoidance Assist or restarting the vehicle with this function activated, the warning light on the side mirrors will appear for approximately 3 seconds.

When the vehicle is restarted with Blind-Spot Collision-Avoidance Assist inactivated, the warning message will appear on the cluster.

WARNING

If Blind-Spot Safety is deselected, the driver should always be aware of the surroundings and drive safely.

NOTE

If the vehicle is restarted, Blind-Spot Collision-Avoidance Assist will maintain the last setting.

Warning Methods

OSG2EV053163L2

  1. Warning Volume

  2. High

  3. Medium

  4. Low

  5. Off

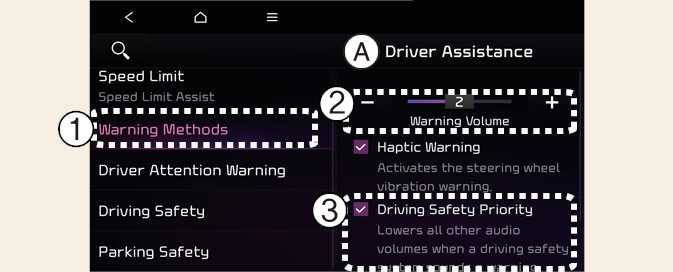

OSG2H053298L

A: Driver Assistance

  1. Warning Methods

  2. Warning Volume

  3. Driving Safety Priority

Warning Methods can be set when the vehicle is in ON position.

  • Warning Volume: Select User Settings → Driver Assistance → Warning Volumeon the instrument cluster or, select Settings → Vehicle → Driver Assistance → Warning Methods → Warning Volume on the infotainment system, and adjust the Warning Volume.

  • : (if equipped)Haptic Warning: Select : (if equipped)Setup → : (if equipped)Vehicle→ : (if equipped)Driver Assistance → : (if equipped)Warning Methods → : (if equipped)Haptic Warning on the infotainment system, and set the steering wheel vibration warning. : (if equipped)

  • Driving Safety Priority:Select Settings→ Vehicle→ Driver Assistance → Warning Methods → Driving Safety Priority on the infotainment system. For safe driving, the audio volume will temporarily decrease to warn the driver with the audible warning.

NOTE

  • Ensure that Warning Methods you have set may apply to the Warning Methods of other driver assistance systems.

  • Warning Methods will maintain its last setting even if the vehicle is restarted.

  • The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

  • The Warning Volume and Haptic Warning cannot be turned off at the same time. When one of the warning is turned off the other is activated
