Main/multi fuse replacement

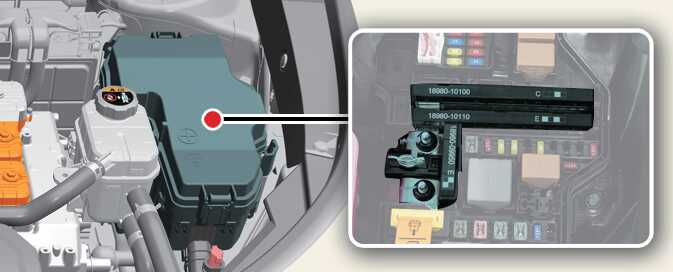

OSG2PH072005L
  1. Turn off the vehicle.
  2. Remove the fuse panel cover by pressing the tab and pulling the cover up.
  3. Disconnect the (-) battery terminal (For plug-in hybrid vehicle) or battery connector (For hybrid vehicle).
  4. Remove the nuts shown in the picture above.
  5. Replace the fuse with a new one of the same rating.
  6. Reinstall in the reverse order of removal.
  7. If it fits loosely, consult an authorized Kia dealer.
CAUTION

Visually inspect the battery cap for secure closing. If the battery cap is not securely latched, the electrical system may be damaged to due influx of moisture into the system.
