Replacing glove box lamp (Bulb type)

OSG2H071030_2
WARNING

Interior lamps

Prior to working on the Interior lamps, ensure that the "OFF" button is depressed to avoid burning your fingers or receiving an electric shock.

  1. Turn off vehicle and disconnect the (-) battery terminal (For plug-in hybrid vehicle) or battery connector (For hybrid vehicle).

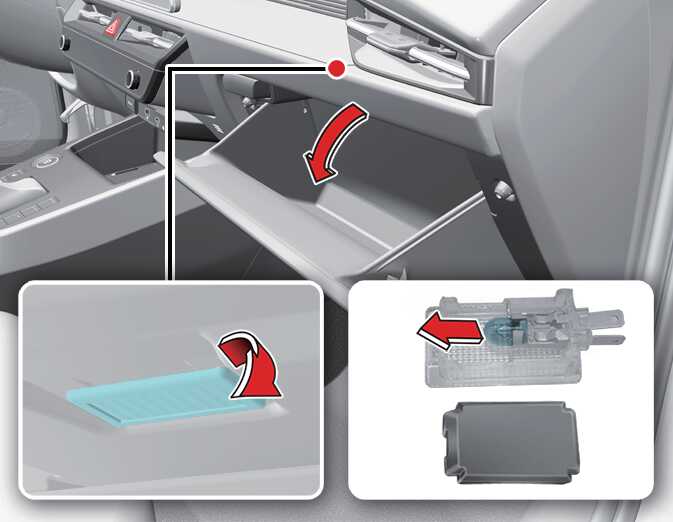

  2. Using a flat-blade screwdriver, gently pry the lamp assembly from interior.
  3. Remove the cover from the lamp assembly.
  4. Remove the bulb by pulling it straight out.
  5. Install a new bulb in the socket.
  6. Install the cover to the lamp assembly.
  7. Install the lamp assembly to interior.
CAUTION

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
