ISG system indicator

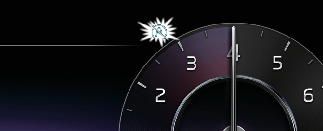

ISG system is indicated by AUTO STOP indicator (
) on the instrument cluster.
The AUTO STOP display shows the warning message. (if equipped)
LCD warning message

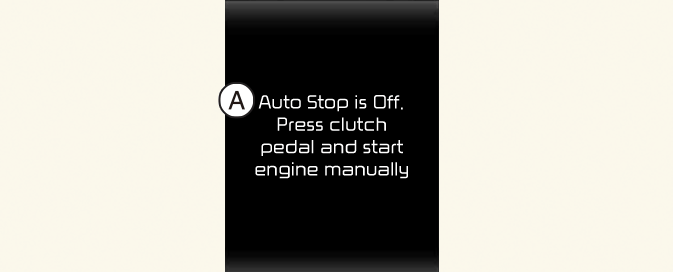

A: Auto Stop is Off. Press clutch pedal and start engine manually
The system may require the engine to manually restart when the light on the ISG OFF button will appear and If your vehicle is equipped with AUTO STOP display, warning message comes on continuously.

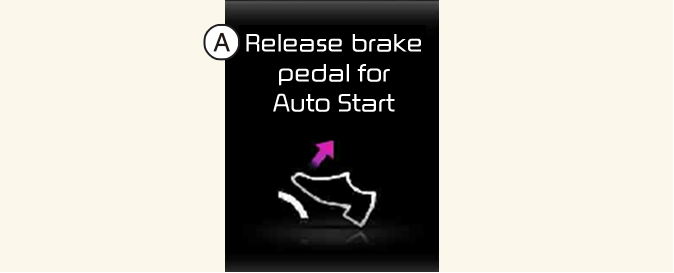

A: Release brake pedal for Auto Start
The engine will not start if the shift lever or dial is moved from N (Neutral) to the D (Drive) position, Manual Mode, or R (Reverse) position without depressing the brake pedal while the engine is stopped automatically. At this time, if you press the brake it will be restarted.

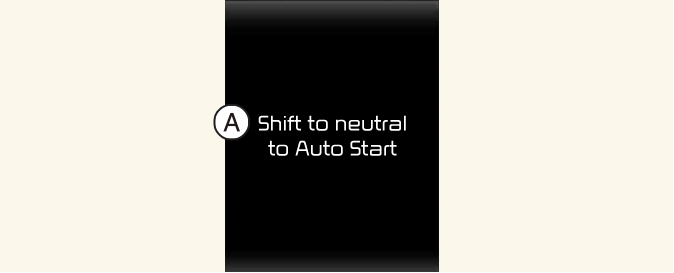

A: Shift to neutral to Auto Start
Conventional MT vehicle (not 48V HEV or not equipped with Late Restart) is able to restart engine, only in Neutral gear. If you select a gear, without depressing clutch pedal fully, then warning will be displayed with chime. You should restart the engine in N (Neutral) gear position.

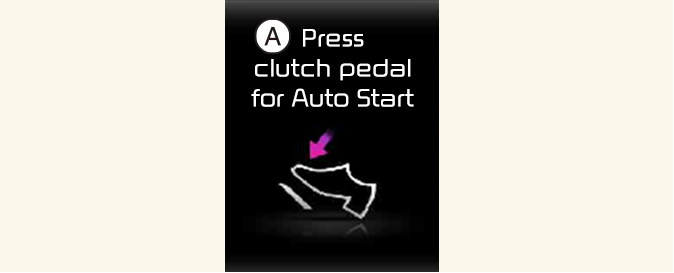

A: Press clutch pedal for Auto Start
Unintentionally, when the engine is turned off or the vehicle is moving, if the gear is engaged and the clutch pedal is not pressed, the system displays the warning message as shown. At this time, if the driver presses the clutch pedal all the way, the engine restarts automatically.(Only with Late Restart equipped ISG system, except 48V HEV)
ISG malfunction
The system may not operate when:
-
The ISG related sensors or system error occurs.
The yellow AUTO STOP indicator () on the instrument cluster will stay on.
When the engine is in Idle Stop mode, it's possible to restart the engine without the driver taking any action. Before leaving the car or doing anything in the engine room compartment, stop the engine by turning the ignition switch or ENGINE START/STOP button to the LOCK/OFF position or removing the ignition key.
-
If the ISG system continuously does not work correctly, have your vehicle inspected by a professional workshop as soon as possible. Kia recommends to contact an authorized Kia dealer/service partner.
-
When the ISG OFF button light comes on, it may stop appearing after driving your vehicle at approximately 80 km/h for a maximum of two hours and setting the fan speed control below the 2nd position. If the ISG OFF button light continues to appear in spite of the procedure, have your vehicle inspected by a professional workshop as soon as possible. Kia recommends to contact an authorized Kia dealer/service partner.
-
If the AGM battery is reconnected or replaced, ISG system will not operate immediately. If you want to use the ISG system, the battery sensor needs to be calibrated for approximately 4 hours with the ignition off. After calibration, turn the engine on and off 2 or 3 times.
