Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
Driver's side fuse panel
ICU Junction Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
DOOR LOCK |
 |
20A |
Center Door Lock/Unlock Relay |
|
P/WINDOW RH |
 |
25A |
Power Window Main Switch, Passenger Power Window Switch |
|
P/WINDOW LH |
 |
25A |
Power Window Main Switch |
|
S/HEATER (REAR) |
 |
20A |
Rear Seat Warmer Control Module |
|
S/HEATER (DRV/PASS) |
 |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
P/SEAT (PASS) |
 |
30A |
Passenger Power Seat Switch |
|
SUNROOF2 |
 |
20A |
Sunroof Controller (Blind Motor) |
|
AIRBAG2 |
 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
SUNROOF1 |
 |
20A |
Sunroof Controller (Glass Motor) |
|
P/SEAT DRV |
 |
30A |
Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module |
|
MODULE9 |
 |
10A |
Clutch Module Cylinder Sensor, Driver IMS (Integrated memory system) Control Module, Driver/Passenger Smart Key Outside Handle, Rain Sensor, Hazard Switch, Data Link Connector, Power Tailgate Unit, Steering Telescopic Unit |
|
AMP (Amplifier) |
 |
25A |
AMP (Amplifier) |
|
IBU (Integrated Body Control Unit)2 |
 |
10A |
IBU (Integrated Body Control Unit), Ignition Switch, Auto Transmission Lever |
|
P/WINDOW SAFETY RH |
 |
25A |
Passenger Safety Power Window Module |
|
P/WINDOW SAFETY LH |
 |
25A |
Driver Safety Power Window Module |
|
MEMORY |
 |
10A |
Outside Mirror Folding/Unfolding Relay, Driver/Passenger Power Outside Mirror, Instrument Cluster, Air Conditioner Controller (LCD), Air Conditioner Control Module, Mood Lamp Unit, Console Mood Lamp, Mood Lamp (Passenger), Crash Pad Switch, ADAS Parking ECU |
|
TAILGATE |
 |
10A |
Tailgate Relay |
|
E-CALL |
 |
10A |
Emergency Call (E-Call) Module |
|
MODULE7 |
 |
7.5A |
IBU (Integrated Body Control Unit) |
|
BRAKE SWITCH |
 |
10A |
Stop Lamp Switch, IBU (Integrated Body Control Unit) |
|
MULTIMEDIA |
 |
20A |
Audio (Display), Audio/Video & Navigation Head Unit |
|
WASHER |
 |
15A |
Multifunction Switch |
|
MODULE8 |
 |
7.5A |
Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module |
|
AIRBAG1 |
 |
15A |
SRS (Supplemental Restraint System) Control Module |
|
Air Conditioner ON |
 |
7.5A |
E/R Junction Block (PTC Heater Relay #1, Blower Relay), Air Conditioner Controller (LCD), Air Conditioner Control Module |
|
MODULE2 |
 |
15A |
Front USB Charger Connector, Driver/Passenger Seat USB Port |
|
MODULE6 |
 |
10A |
Console Switch, Drive Mode Switch, Data Link Connector, Auto Transmission Shift Lever Indicator |
|
MODULE1 |
 |
10A |
ADAS Parking ECU, IBU (Integrated Body Control Unit), Audio Keyboard, Audio/Video & Navigation Keyboard, Power Outside Mirror Switch, Emergency Call (E-Call) Module, AMP (Amplifier), Audio (Display), Audio/Video & Navigation Head Unit |
|
HEATED MIRROR |
 |
10A |
Driver/Passenger Power Outside Mirror |
|
IBU (Integrated Body Control Unit)1 |
 |
7.5A |
IBU (Integrated Body Control Unit) |
|
MODULE5 |
 |
10A |
Driver IMS (Integrated memory system) Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, AMP (Amplifier), Front Seat Warmer Control Module, Audio (Display), Audio/Video & Navigation Head Unit, Front Wireless Charger, Emergency Call (E-Call) Module, Air Conditioner Controller (LCD), Air Conditioner Control Module, Electro Chromic Mirror |
|
AIRBAG IND |
 |
7.5A |
Instrument Cluster |
|
MODULE4 |
 |
7.5A |
IBU (Integrated Body Control Unit), Front View Camera, Crash Pad Switch, ADAS Parking ECU, Rear Corner Radar LH/RH, Clutch Module Cylinder Sensor, 4WD (4 Wheel Drive) ECU (Electronic Control Unit), Head Lamp LH/RH |
|
E-SHIFTER3 |
 |
7.5A |
SCU (System Control Unit), Electronic Auto Transmission Shift Lever Switch |
|
CLUSTER |
 |
7.5A |
Instrument Cluster |
|
MODULE3 |
 |
7.5A |
Stop Lamp Switch, Overhead Console Lamp |
|
Motor Driven Power Steering |
 |
7.5A |
Motor Driven Power Steering Unit |
|
START |
 |
10A |
Burglar Alarm Horn Relay, Transaxle Range Switch, Power train Control Module, IBU (Integrated Body Control Unit), Ignition Switch, E/R Junction Block (Start Relay) |
|
LDC |
 |
10A |
LOW VOLTAGE DC-DC CONVERTER |
|
ECS |
|
15A |
ELECTRONIC CONTROL SUSPENSION |
|
BATTERY C/FAN |
 |
10A |
BATTERY COOLING FAN |
|
BATTERY MANAGEMENT |
 |
10A |
BATTERY MANAGEMENT SYSTEM |
|
MODULE10 |
 |
7.5A |
FUEL FILTER |
Engine compartment fuse panel
Engine Room Junction Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|---|
|
MULTI FUSE-1 |
Motor Driven Power Steering1 |
 |
80A |
Motor Driven Power Steering Unit |
|
COOLING FAN1 |
 |
80A |
Cooling Fan Controller |
|
|
COOLING FAN2 |
 |
60A |
Cooling Fan Controller |
|
|
EPB2 |
 |
60A |
ELECTRONIC PARKING BRAKE |
|
|
B+3 |
 |
60A |
ICU Junction Block (Fuse - S/HEATER (DRV/PASS), P/SEAT(PASS), SUNROOF2, SUNROOF1, P/SEAT DRV, AMP, P/WINDOW SAFETY RH, Power Window Main Relay) |
|
|
CVVD |
 |
50A |
CVVD (Continuous Variable Valve Duration) |
|
|
BLOWER |
 |
40A |
Blower Relay |
|
|
ABS1/EPB1 |
 |
40A |
ANTI-LOCK BRAKE SYSTEM/ELECTRONIC PARKING BRAKE |
|
|
REAR HEATED |
 |
40A |
Rear Heated Relay |
|
|
ABS2 |
 |
30A |
ANTI-LOCK BRAKE SYSTEM |
|
|
MULTI FUSE-2 |
GLOW |
 |
80A |
GLOW Control Unit |
|
PTC HEATER1 |
 |
50A |
PTC Heater |
|
|
PTC HEATER2 |
 |
50A |
PTC Heater |
|
|
DCU1 |
 |
50A |
DCU (Dosing Control Unit) |
|
|
FUEL FILTER HEATER |
 |
30A |
FUEL FILTER HEATER |
|
|
FUSE |
TRAILER1 |
 |
50A |
Trailer Connector |
|
FUEL PUMP |
 |
20A |
Fuel Pump Relay |
|
|
4WD |
 |
20A |
AWD ECM (Engine Control Module) |
|
|
AMS |
 |
10A |
Battery Sensor |
|
|
ECU4 |
 |
10A |
Power train Control Module |
|
|
E-SHIFTER2 |
 |
10A |
E-SHIFTER |
|
|
ECU5 |
 |
10A |
Not Used |
|
|
Air ConditionerON1 |
 |
10A |
Blower Relay, Air Conditioner Control Module |
|
|
TRAILER2 |
 |
20A |
Trailer Connector |
|
|
E-SHIFTER1 |
 |
30A |
SCU (System Control Unit) |
|
|
TAILGATE |
 |
40A |
Power Tailgate Unit |
|
|
EOP |
 |
40A |
Not Used |
|
|
B+2 |
 |
50A |
ICU Junction Block (IPS06/IPS07/IPS08/IPS09/IPS10/IPS11) |
|
|
B+1 |
 |
60A |
ICU Junction Block (IPS01/IPS02/IPS03/IPS04/IPS05) |
|
|
DCU2 |
 |
20A |
DCU (Dosing Control Unit) |
|
|
DCU3 |
 |
20A |
DCU (Dosing Control Unit) |
|
|
DCU4 |
 |
20A |
DCU (Dosing Control Unit) |
|
|
DCT1 |
 |
40A |
DCT (Dual Clutch Transmission) |
|
|
DCT2/E-CLUTCH |
 |
40A |
DCT (Dual Clutch Transmission)/ ECLUTCH |
|
|
B+4 |
 |
50A |
ICU Junction Block (Fuse - DOOR LOCK, S/HEATER (DRV/PASS), AIRBAG2, MODULE9, IBU2, P/WINDOW SAFETY LH, E-SHIFTER2, TAILGATE, BRAKE SWITCH, Long Term Load Latch Relay) |
|
* 1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
PCB Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
IG2 |
 |
30A |
IG2 Relay |
|
IG1 |
 |
30A |
IG1 Relay, ACC Relay |
|
FR WIPER2 |
 |
7.5A |
Front Wiper (Low) Relay, ECM (Engine Control Module), IBU (Integrated Body Control Unit) |
|
SENSOR1 |
 |
20A |
Ignition Coil #1~#4 |
|
SENSOR7 |
 |
7.5A |
GLOW Control Unit |
|
ECU3 |
 |
10A |
Powertrain Control Module |
|
SENSOR5 |
 |
15A |
Powertrain Control Module |
|
TCU2 |
 |
10A |
Transmission Control Module |
|
SENSOR3 |
 |
20A |
Powertrain Control Module |
|
ECU1 |
 |
20A |
Powertrain Control Module |
|
SENSOR2 |
 |
15A |
Oxygen Sensor (UP/DOWN) |
|
FR WIPER1 |
 |
30A |
Wiper Main Relay, Front Wiper (Low) Relay |
|
RR WIPER |
 |
15A |
Wiper Main Relay, ICU Junction Block (Rear Wiper Relay) |
|
HORN |
 |
15A |
Horn Relay |
|
Air ConditionerON2 |
 |
10A |
Air Conditioner Comp Relay |
|
FCA |
 |
10A |
Front Radar |
|
SENSOR4 |
 |
10A |
Fuel Filter Heater Relay, Fuel Pump Relay |
|
SENSOR6 |
 |
15A |
Mild Hybrid Starter Generator, Powertrain Control Module |
|
ECU2 |
 |
15A |
Powertrain Control Module |
|
TCU1 |
 |
15A |
Powertrain Control Module |
|
ABS3/EPB3 |
 |
10A |
ESP (Electronic Stability Program (Electronic Stability Program) Control Module |
|
POWER OUTLET2 |
 |
20A |
Front Power Outlet |
|
POWER OUTLET1 |
 |
20A |
Luggage Power Outlet |
|
ACC |
 |
20A |
ACCESSORY POWER |
|
MDPS2*1 |
 |
10A |
Motor Driven Power Steering Unit |
|
AFS |
 |
10A |
ADAPTIVE FRONT LIGHTING SYSTEM |
Relay
Refer to the following table for the relay type.
|
Relay Name |
Symbol |
TYPE |
|---|---|---|
|
Rear Heated Relay |
 |
MICRO |
|
Start Relay |
 |
MICRO |
|
Fuel Pump Relay |
 |
MICRO |
|
PTC Heater Relay #1 |
 |
MICRO |
|
Fuel Filter Heating Relay |
 |
MICRO |
|
Blower Relay |
 |
MICRO |
|
DCU Relay |
 |
MICRO |
|
PTC Heater Relay2 |
 |
MICRO |

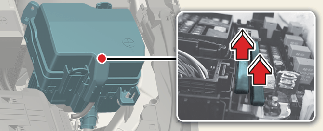

Engine compartment fuse panel (Battery terminal cover)
