Blind-Spot Collision Warning settings

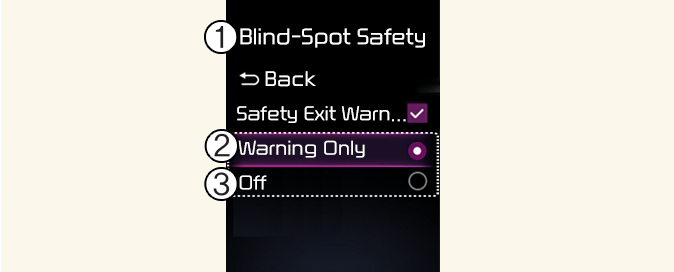

Blind-spot safety

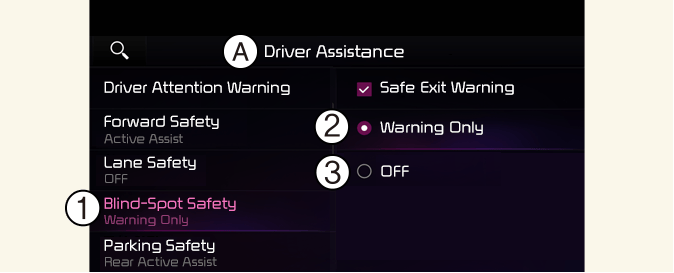

A: Driver assistance

  1. Blind-spot safety

  2. Warning only

  3. Off

With the engine on, select User settings → Driver assistance → Blind-spot safety on the instrument cluster, or select Settings → Vehicle → Driver assistance → Blind-spot safety on the Infotainment system to set whether or not to use each function.

  • Warning only: Blind-Spot Collision Warning will warn the driver with audible warning will be applied depending on the collision risk levels. Braking will not be assisted, so driver operate the vehicle directly.

  • Off: Blind-Spot Collision Warning will turn off.

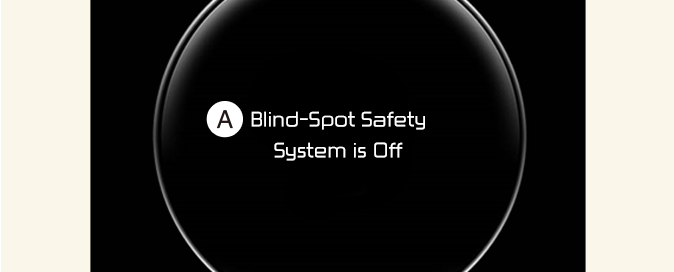

A: Blind-Spot Safety System is Off

If 'Blind-Spot Safety' function turn on (select except for 'Off' function), when the engine is restarted, the outside rearview mirror will blink for 3 seconds. It means the function is operated.

When the engine is restarted with Blind-Spot Collision Warning off, the 'Blind-Spot Safety System is Off' message will appear on the cluster.

Warning timing

A: Driver assistance

  1. Warning timing

  2. Normal

  3. Late

With the vehicle on, select User settings → Driver assistance → Warning timing on the instrument cluster, or select Settings → Vehicle → Driver assistance → Warning timing on the Infotainment system to change the initial warning activation time for Blind-Spot Collision Warning.

To select the Warning time Normal or Late.

  • Normal: Use under normal driving conditions. If it feels too sensitive, set the warning timing to Late.

  • Late: The warning timing will be late

CAUTION

  • The setting of the Warning timing applies to all functions of Blind-Spot Collision Warning.

  • Even though Normal is selected for Warning Timing, if the front vehicle suddenly stops, the initial warning activation time may seem late.

  • Select Late for Warning Timing when traffic is light and when driving speed is slow.

NOTICE

  • If the vehicle is restarted, Warning timing will maintain the last setting.

  • If you change the Warning timing, the Warning timing of other Driver Assistance systems may change.

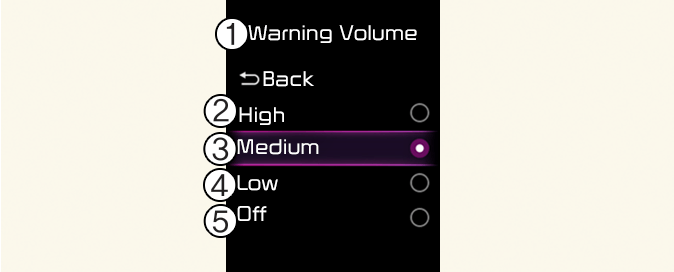

Warning methods

  1. Warning volume

  2. High

  3. Medium

  4. Low

  5. Off

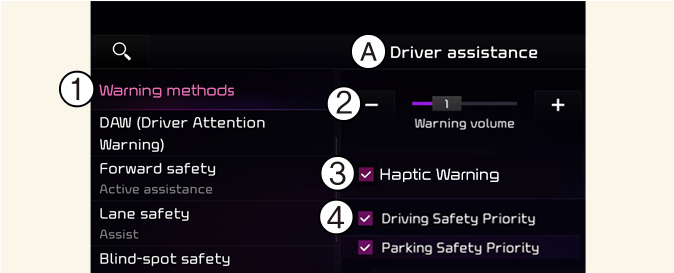

A: Driver assistance

  1. Warning methods

  2. Warning volume

  3. Haptic warning

  4. Driving safety priority

Warning methods can be set when the vehicle is in ON position.

  • Warning volume: Select User settings → Driver assistance → Warning volume on the instrument cluster, or select Settings → Vehicle → Driver assistance → Warning methods → Warning volume on the infotainment system, and adjust the warning volume.

    Even if you set the warning volume to 0, Warning volume will keep its volume in 1. (If steering wheel vibration equipped)

  • Haptic warning: Select User settings → Driver assistance → Haptic warning on the instrument cluster or select Settings → Vehicle → Driver assistance → Warning methods → Haptic warning on the infotainment system, and set the steering wheel vibration warning. (if equipped)

  • Driving safety priority: Select Settings → Vehicle → Driver assistance → Warning methods → Driving Safety Priority on the infotainment system. The audio volume is reduced for safe driving while a warning sounds.

NOTICE

  • Ensure that Warning methods you have set may apply to the Warning methods of other driver assistance systems.

  • Warning methods will maintain its last setting even if the vehicle is restarted.

  • The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

  • With the warning volume is 0, if you deselect Haptic warning, the warning volume will be automatically adjusted with volume 2.

  • With the Haptic warning is deselected, if you adjust the warning volume to 0, the Haptic warning will be automatically selected.

  • Descriptions of each driver assistance system may be slightly different from the owner's manual after updating the software of your infotainment system.

    In this case, scan the QR code in the infotainment system manual to access the web manual for checking the changes.

  • Depending on your region or infotainment system software version, the menu may be displayed as Warning Volume, Warning Sound and Haptic or Warning Methods.
