LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

TYPE A


	Mode
	Trip Computer	Turn By Turn (TBT)*	User Settings*
Up/Down	Drive Information*	Route Guidance	Illumination
	Drive Information*	Route Guidance	Service Reminder
	AUTO STOP*	Destination Info	Fuel Ecnomy Unit
			Temperature Unit

TYPE B


	Mode
	Trip Computer	Turn By Turn (TBT)*	User Settings*	Information/Master Warning
Up/Down	Fuel Economy	Route Guidance	Driver Assistance	TPMS
	Fuel Economy	Route Guidance	Lights	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info	Destination Info	Door
	Drive Information*		Convenience
	Transmission Temperature		Service Interval
	AUTO STOP*		Other Features
			Languages
			Default

The information provided may differ depending on which functions are applicable to your vehicle.

: if equipped

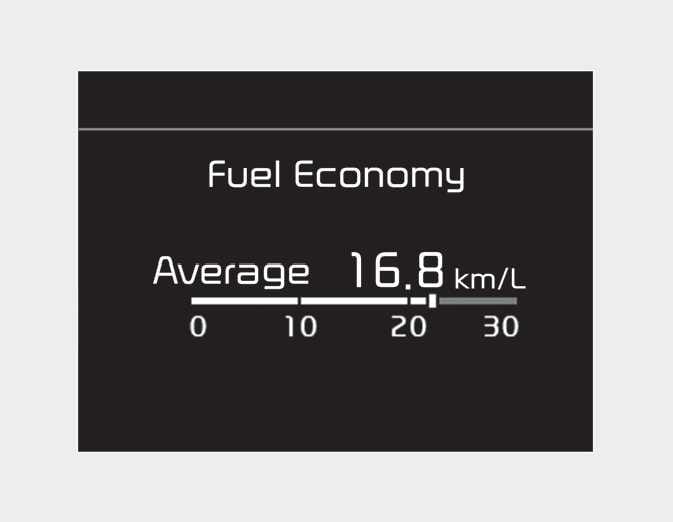

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

For more details, refer to Trip information (trip computer).

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Information mode

This mode displays the state of:

Tyre pressure

For more details, refer to each system information in Driving your vehicle.

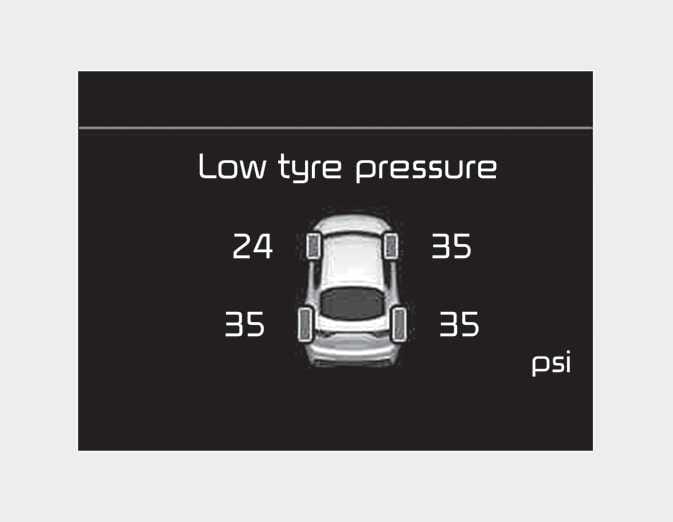

Tyre pressure status

For more details, refer to Tyre Pressure Monitoring System (TPMS).

Master warning mode

This warning light informs the driver the following situations.

LED headlamp malfunction: (if equipped)
Lamp malfunction

At this time, a Master Warning icon ( ) will appear beside the User Settings icon ( ), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

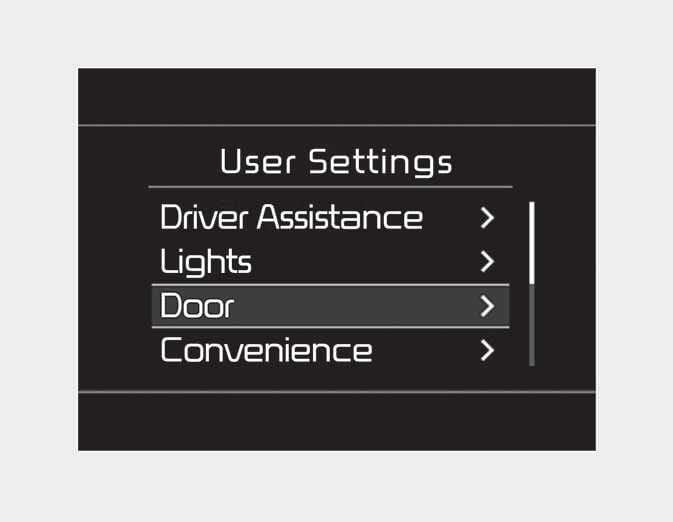

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Driver Asssistance
Lights
Door
Convenience
Service Interval
Other
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1.Driver Assistance (if equipped)


Items	Explanation
Parking Safety	Parking Distance Warning Auto On To select the function. For more details, refer to Forward/Reverse Parking Distance Warning (PDW)

2. Lights (if equipped)


Items	Explanation
Illumination	The instrument cluster illumination can be adjusted.
One touch turn indicator	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. For more details, refer to Lighting.
Head lamp delay	If this item is checked, the headlamp delay function will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

3. Door (if equipped)


Items	Explanation
Auto lock	Off: The auto door unlock operation will be cancelled. Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Enable on shift (if equipped with IVT): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position (with the Engine ON, it is activated).
Auto unlock	Off: The auto door unlock operation will be cancelled. On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position. On shift to P (if equipped with IVT): All doors will be automatically unlocked if the gear is shifted to the P (Park) position (with the Engine ON, it is activated).

The information provided may differ depending on which functions are applicable to your vehicle.

4. Convenience (if equipped)


Items	Explanation
Welcome Mirror/Light	On door unlock / On driver approach To select the welcome mirror/light function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Wiper/Lights display	If this item is checked, the wiper/lights display will be activated.
Icy road warning	If this item is checked, the icy road warning will be activated.

The information provided may differ depending on which functions are applicable to your vehicle.

5. Service interval (if equipped)


Items	Explanation
Enable service interval	If this item is checked, the Service Interval function will be activated.
Adjust interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

6. Other (if equipped)


Items	Explanation
Fuel economy auto reset	Off: The average fuel economy will not reset. After ignition / After refuelling: The average fuel economy will reset automatically after ignition/refuelling.
Fuel economy unit	Km/L, L/100Km To select the Fuel economy unit. For more details, refer to Trip information (trip computer).
Temperature unit	C°/F° To select the Temperature unit.
Tyre Pressure Unit	psi, kPa, bar To select the Tyre Pressure Unit

The information provided may differ depending on which functions are applicable to your vehicle.

7. Language (if equipped)


Items	Explanation
Language	To select language.

8. Reset (if equipped)


Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
