Luggage board (if equipped)

You can place a first aid kit, a reflector triangle, tools, etc. in the box for easy access.

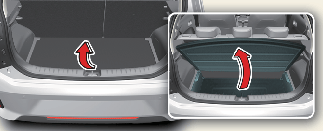

Grasp the handle on the top of the cover and lift it.

Increase cargo space (if equipped)

If you want to increase cargo space,

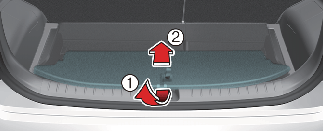

  1. Grasp the handle on the top of the cover and lift it.

  2. Fold(1) the rear part of the luggage board frontward(2).

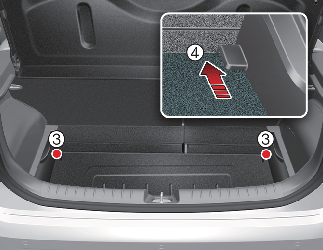

  3. Pull the luggage board hinge(3) to the end of sliding slot and it will fall down lower to increase cargo space.

  4. Slide it frontward(4).
