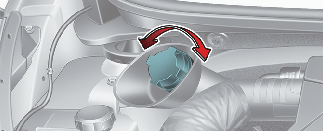

Gasoline reservoir in the engine room (Flex fuel vehicle, For Brazil and Paraguay)
If your vehicle is FFV (Flex fuel vehicle), it needs to be checked and the reservoir should be filled in with the gasoline for cold start when the outside temperature is low (below 20°C).
The nominal capacity of the gasoline reservoir for cold start is 0.8 liters and the reservoir is located in the engine room.
Fill in the reservoir with gasoline for cold start until it reaches the MAX line. If the gas line overflows, clean up the overflowed fuel with the towel.


Refueling
-
If pressurized fuel sprays out, it can cover your clothes or skin and thus subject you to the risk of fire and burns. Always remove the fuel cap carefully and slowly. If the cap is venting fuel or if you hear a hissing sound, wait until the condition stops before completely removing the cap.
-
Do not "top off" after the nozzle automatically shuts off when refueling.
-
Always check that the fuel cap is installed securely to prevent fuel spillage in the event of an accident.

Refueling dangers
Automotive fuels are flammable materials. When refueling, please note the following guidelines carefully. Failure to follow these guidelines may result in severe personal injury, severe burns or death by fire or explosion.
-
Read and follow all warnings at the gas station facility.
-
Before refueling note the location of the Emergency Gasoline Shut-Off, if available, at the gas station facility.
-
Before touching the fuel nozzle, you should eliminate potentially dangerous static electricity discharge by touching another metal part of the vehicle, a safe distance away from the fuel filler neck, nozzle, or other gas source.
-
Do not get back into a vehicle once you have begun refueling since you can generate static electricity by touching, rubbing or sliding against any item or fabric (polyester, satin, nylon, etc.) capable of producing static electricity. Static electricity discharge can ignite fuel vapors resulting in rapid burning. If you must reenter the vehicle, you should once again eliminate potentially dangerous static electricity discharge by touching a metal part of the vehicle, away from the fuel filler neck, nozzle or other gasoline source.
-
When using an approved portable fuel container, be sure to place the container on the ground prior to refueling. Static electricity discharge from the container can ignite fuel vapors causing a fire.
Once refueling has begun, contact with the vehicle should be maintained until the filling is complete.
Use only approved portable plastic fuel containers designed to carry and store gasoline.
-
Do not use cellular phones while refueling. Electric current and/or electronic interference from cellular phones can potentially ignite fuel vapors causing a fire.
-
When refueling, always shut the engine off. Sparks produced by electrical components related to the engine can ignite fuel vapors causing a fire. Once refueling is complete, check to make sure the filler cap and filler door are securely closed, before starting the engine.
-
DO NOT use matches or a lighter and DO NOT SMOKE or leave a lit cigarette in your vehicle while at a gas station especially during refueling. Automotive fuel is highly flammable and can, when ignited, result in fire.
-
If a fire breaks out during refueling, leave the vicinity of the vehicle, and immediately contact the manager of the gas station and then contact the local fire department. Follow any safety instructions they provide.

-
Make sure to refuel your vehicle according to the More Details.
-
If the fuel filler cap requires replacement, please make sure that you use parts designed for replacement in your vehicle.
An incorrect fuel filler cap can result in a serious malfunction of the fuel system or emission control system. For more detailed information, Kia recommends to contact an authorized Kia dealer/service partner
-
Do not spill fuel on the exterior surfaces of the vehicle. Any type of fuel spilled on painted surfaces may damage the paint.
-
If the fuel filler cap requires replacement, use only Kia Genuine Parts or those of an equivalent standard for your vehicle. An incorrect fuel filler cap can result in a serious malfunction of the fuel system or emission control system.
-
After refueling, make sure the fuel cap is installed securely to prevent fuel spillage in the event of an accident.
