Engine compartment

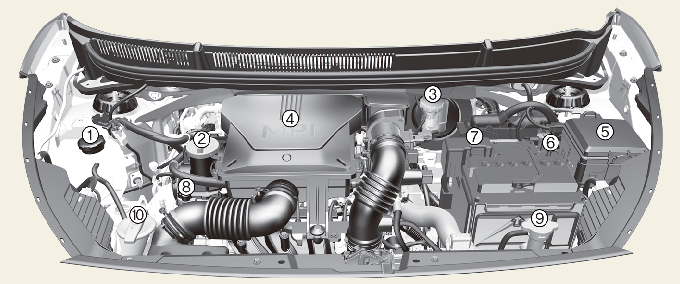

(Gasoline) 1.0 MPI

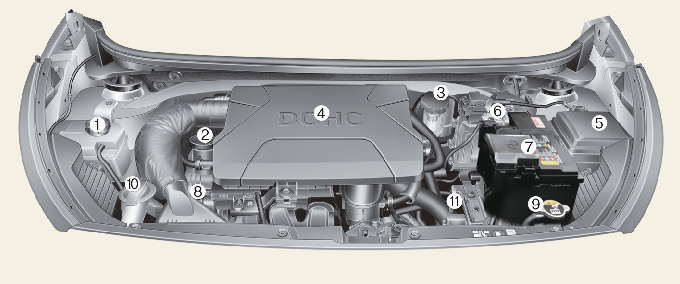

(Gasoline) 1.2 MPI

* The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake / clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

  11. Automatic transmission fluid dipstick

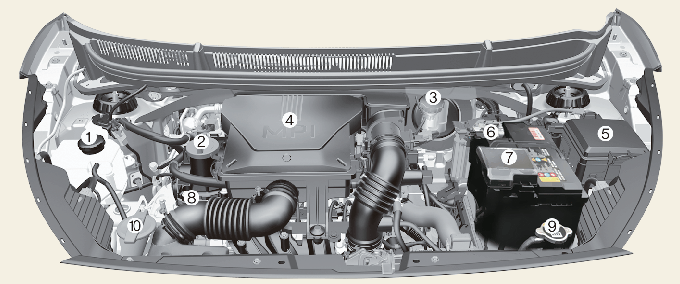

Smartstream G1.0

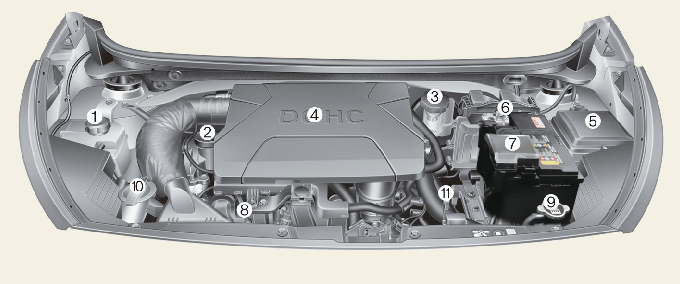

Smartstream G1.2

* The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake / clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

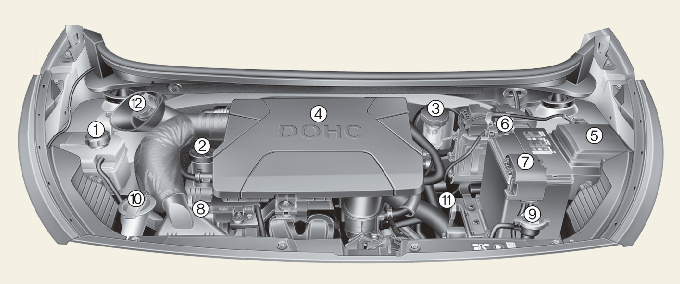

(Gasoline) 1.0 FFV

* The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake / clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

  11. Automatic transmission fluid dipstick

  12. Gasoline reservoir
