Auto defogging system

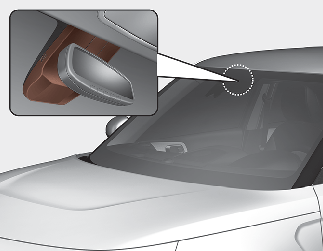

Auto defogging reduces the possibility of fogging up the inside of the windscreen by automatically sensing the moisture of inside the windscreen.
This indicator appears when the auto defogging system senses the moisture of inside the windscreen and operates.
If more moisture is in the vehicle, higher steps operate as follow.
-
For European region
-
Blowing air flow toward the windscreen
-
Increasing air flow toward the windscreen
-
Operating the air conditioning.
-
Outside air position
-
-
Except European region
-
Operating the air conditioning
-
Outside air position
-
Blowing air flow toward the windscreen
-
Increasing air flow toward the windscreen
-
To cancel or reset the Auto Defogging System
Press the front windscreen defroster button for 3 seconds when the START/STOP button is in the ON position.
When the ADS system is cancelled, Indicator on the button will blink 3 times per 0.5 sec or "ADS OFF" will blink 3 times per 0.5 sec and "ADS OFF" will be displayed on the LCD of audio.
When the ADS system is reset, Indicator on the button will blink 6 times per 0.25 sec or "ADS OFF" will blink 6 times per 0.25 sec and "ADS OFF" will be disappeared on the LCD of audio.
