Rear View Monitor settings
Camera settings

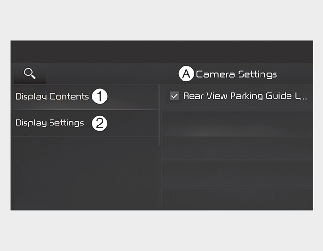

A: Camera Settings
-
Display Contents
-
Display Settings (if equipped)
You can change Rear View Monitor 'Display Contents' by touching the setup icon (
) on the screen whilst Rear View Monitor is operating, or selecting Driver assistance → Parking safety → Camera settings from the Settings menu whilst the vehicle is on.
-
Display Contents: To change the settings of Extended Rear View Monitor and Rear View Parking Guide Lines.
-
Display Settings: To change the screen's brightness and contrast.
The settings menu may not be depending on the specifications of the vehicle specifications.
Extended Rear View Monitor
If Extended Rear View Monitor is selected, the Rear View keeps displaying when shifting from R (Reverse) to N (Neutral) or D (Drive).
Rear View Parking Guide
If Rear View Parking Guide Lines is selected, the rear view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal guideline shows the distance of 0.5 m (1.6 ft.), 1 m (3.3 ft.) and 2.3 m (7.6 ft.) from the vehicle.
If Rear View Parking Guide Lines is selected, the With the vehicle on, select top view parking guide lines will be displayed at the left side of the infotainment system screen.
The horizontal scale of rear top view paring guide indicates the tailgate opening distance, 1.5 m from the vehicle.
Warning Methods

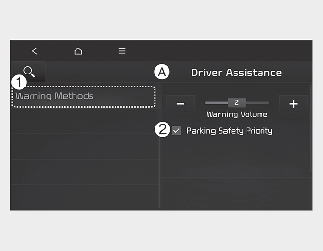

A: Driver Assistance
-
Warning Methods
-
Parking Safety Priority
With the vehicle on, select Settings → Vehicle → Driver Assistance → Warning Methods on the infotainment system to change the Warning Sound.
-
Parking Safety Priority: For safe parking, the audio volume will temporarily decrease whilst Rear View Monitor is operating.
Warning Methods will maintain its last setting even if the vehicle is restarted.
