Air Conditioning refrigerant label

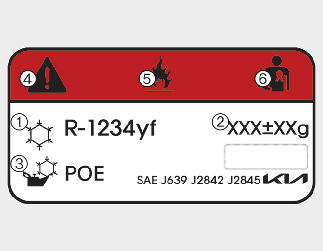

Example

* The actual Air Conditioning refrigerant label in the vehicle may differ from the illustration.

Each symbols and specification on air conditioning refrigerant label means as below ;

  1. Classification of refrigerant

  2. Amount of refrigerant

  3. Classification of Compressor lubricant

  4. Caution

  5. Flammable Refrigerant

  6. To requires Registered to Service Air Conditioning system

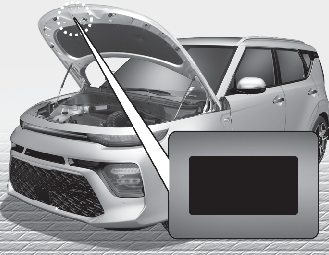

You can find out which air conditioning refrigerant is applied your vehicle at the label inside of the motor room.

Refer More Details for more detail on the location of air conditioning refrigerant label.

CAUTION

AC Repair

It is important that the correct type and amount of oil and refrigerant is used, otherwise damage to the vehicle may occur. To prevent damage, the air conditioning system in your vehicle should only be serviced by trained and certified technicians.
