Manual climate control system: (if equipped)

The manual climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

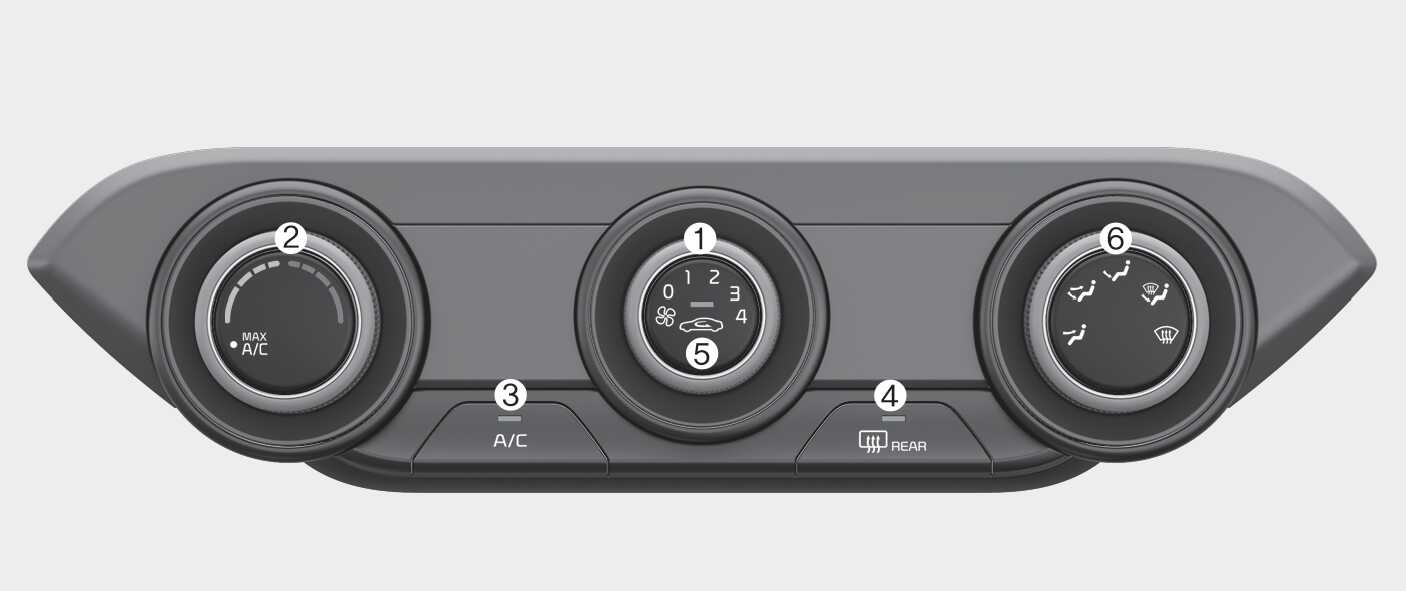

Figure 1. Type A
OBD048300

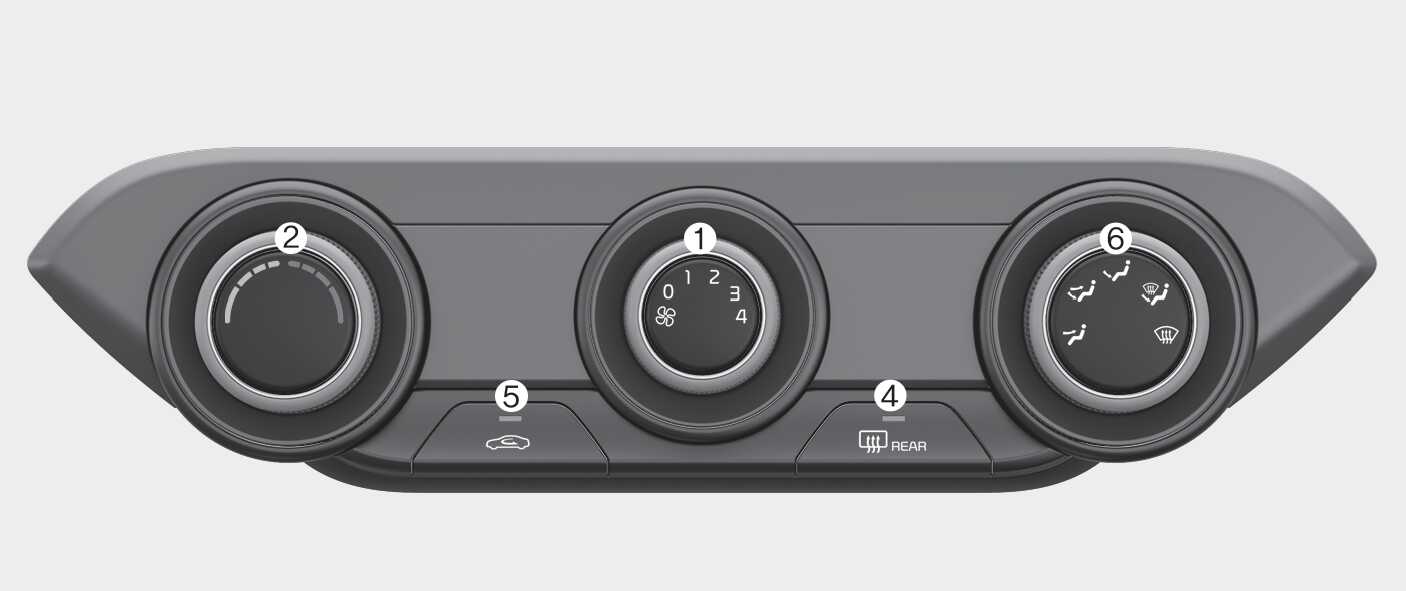

Figure 2. Type B
OBD048301L

  1. Fan speed control knob

  2. Temperature control knob

  3. Air conditioning button (if equipped)

  4. Rear window defroster button

  5. Air intake control button

  6. Mode selection knob

CAUTION

Operating the blower when the ignition switch or ENGINE START/STOP button is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
