Engine compartment

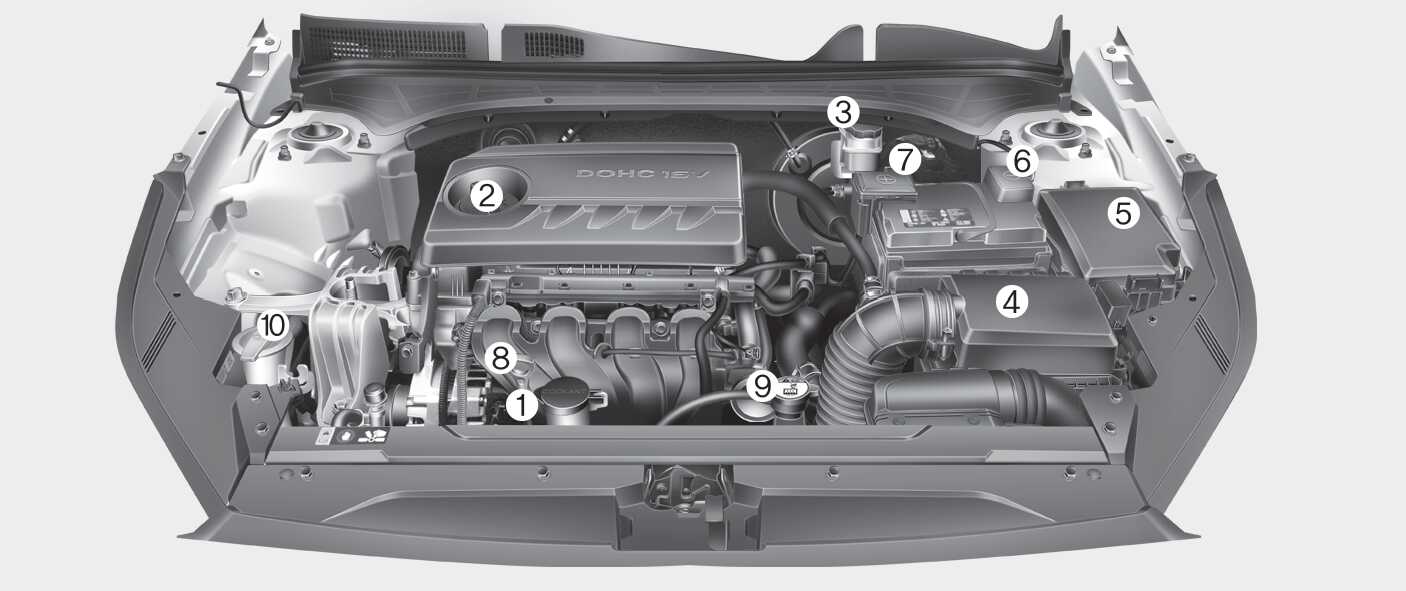

Figure 1. (Gasoline) 1.6 MPI
OBD078100L

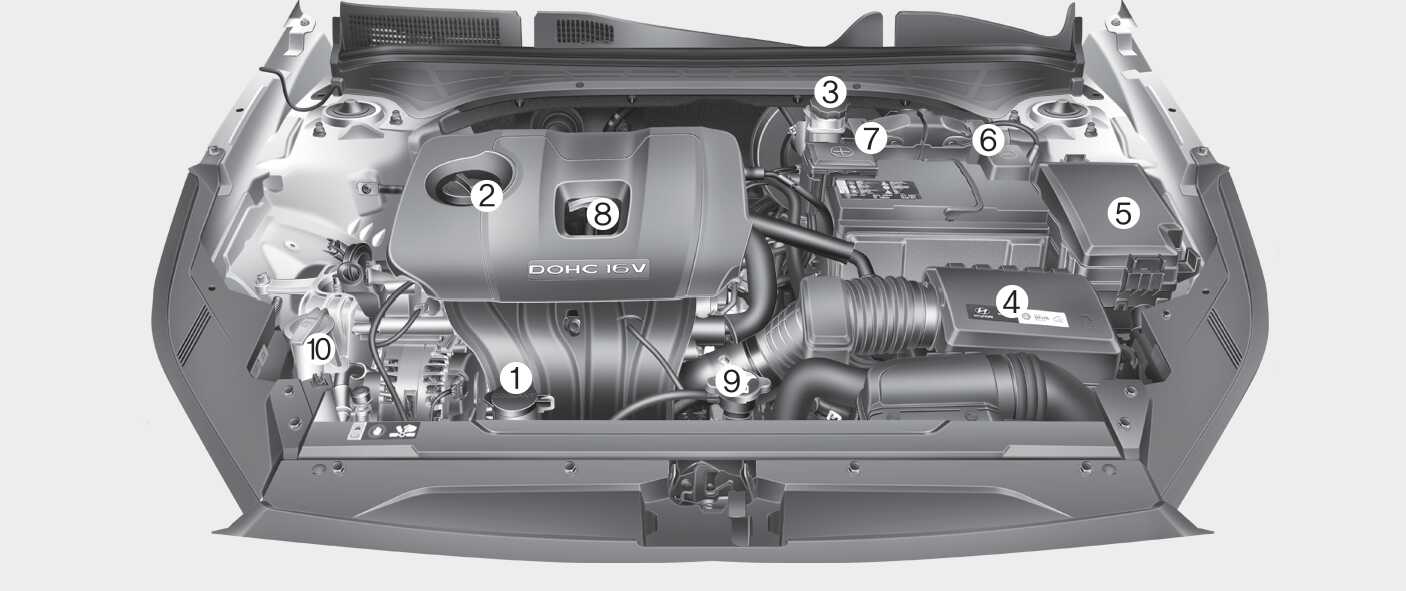

Figure 2. (Gasoline) 2.0 MPI
OBD078101L

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine Coolant

  2. Engine oil filler cap Engine oil (Gasoline)

  3. Brake / clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil (Gasoline)

  9. Radiator cap Checking the coolant level

  10. Windshield washer fluid reservoir Washer fluid

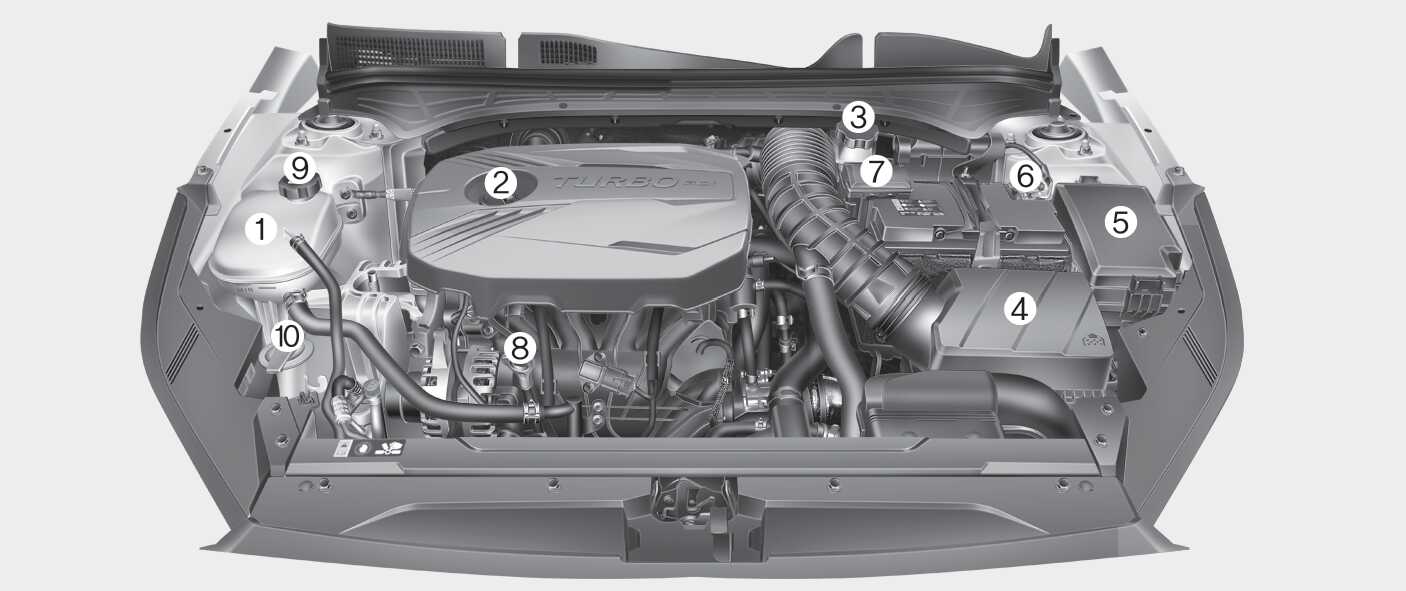

Figure 3. (Gasoline) 1.6 T-GDi
OBD078135L

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine Coolant

  2. Engine oil filler cap Engine oil (Gasoline)

  3. Brake / clutch fluid reservoir Brake/clutch fluid

  4. Air cleaner Air cleaner

  5. Fuse box Fuses

  6. Negative battery terminal Battery

  7. Positive battery terminal Battery

  8. Engine oil dipstick Engine oil (Gasoline)

  9. Radiator cap Checking the coolant level

  10. Windshield washer fluid reservoir Washer fluid
