Instrument cluster

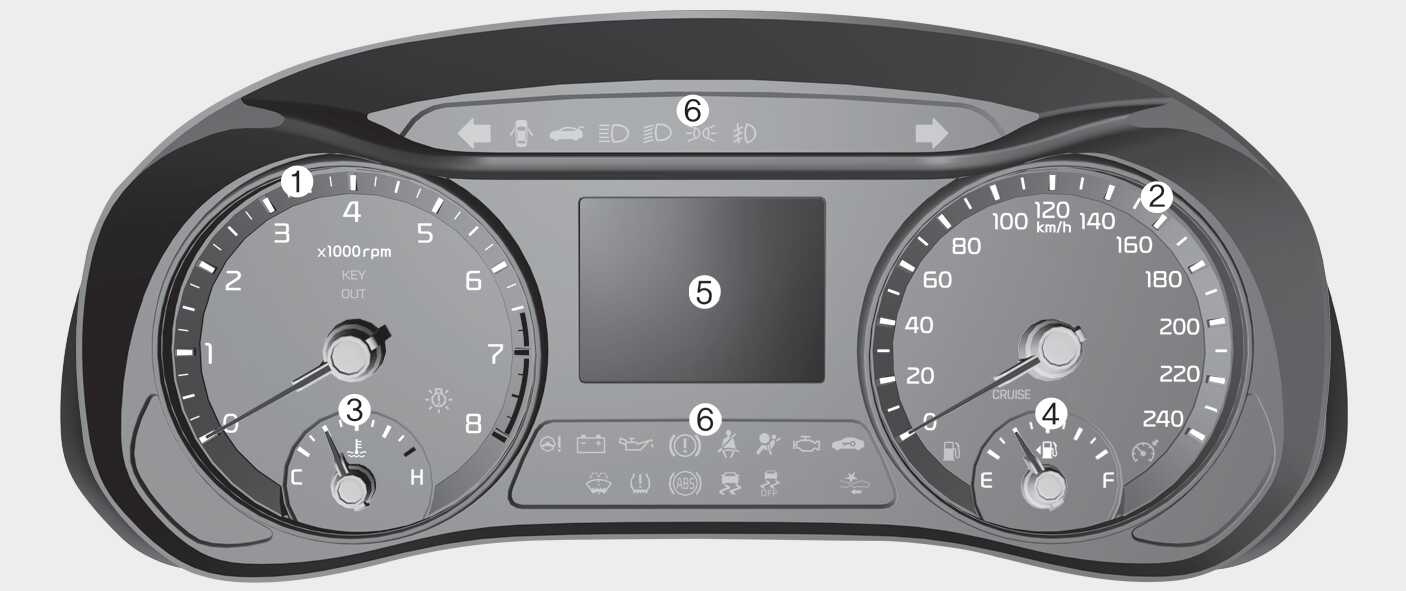

Figure 1. Type A
OBDM042289L

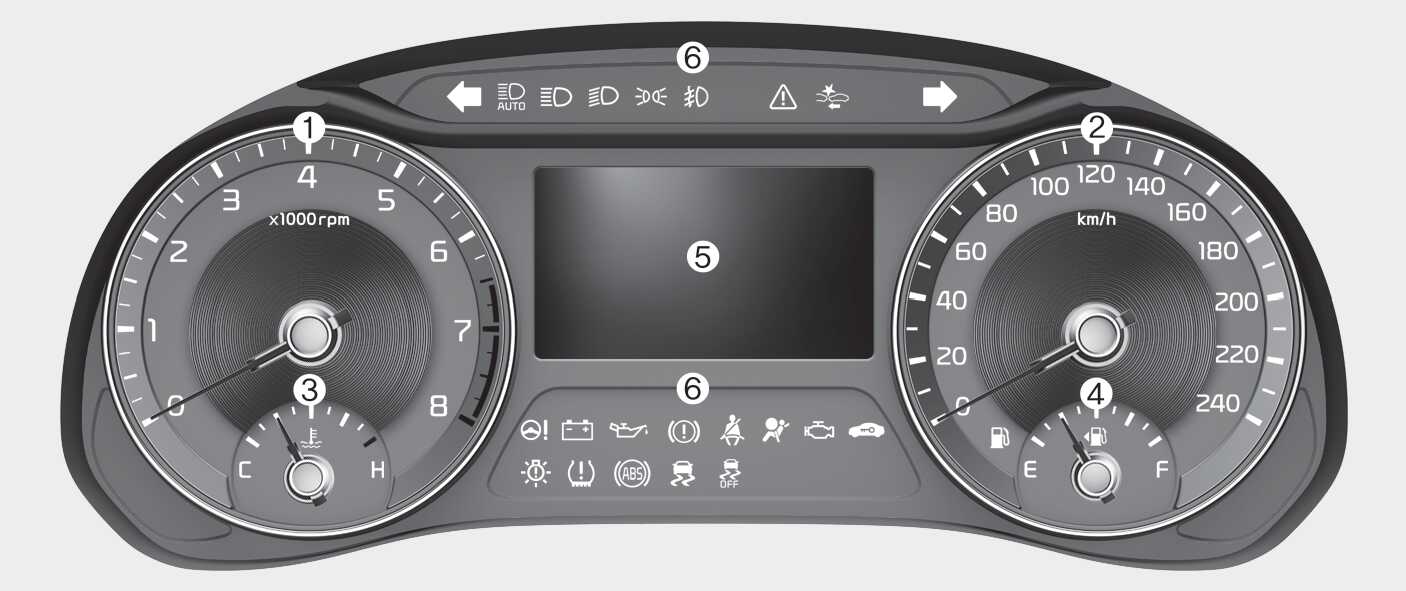

Figure 2. Type B
OBDM042264L

  1. Tachometer

  2. Speedometer

  3. Engine coolant temperature gauge

  4. Fuel gauge

  5. LCD display

  6. Warning and indicator lights

The actual cluster in the vehicle may differ from the illustration. For more details, refer to the Gauges.
