Engine compartment

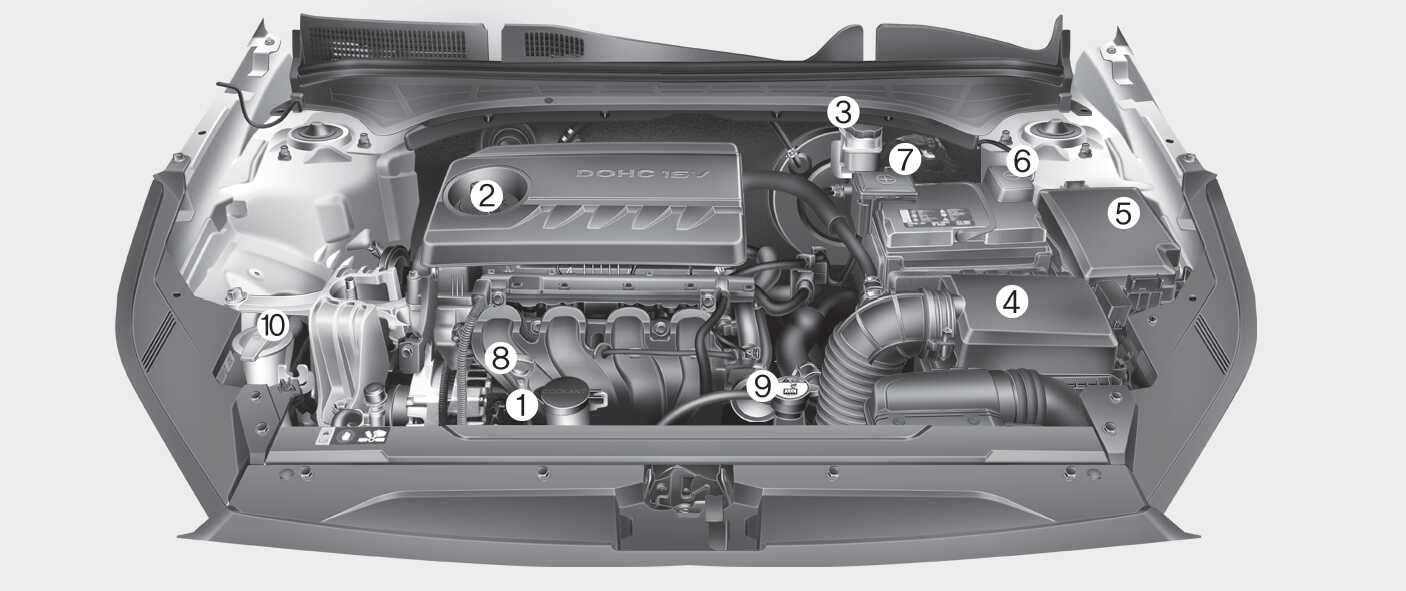

Figure 1. (Gasoline) 1.6 MPI
OBD078100L0

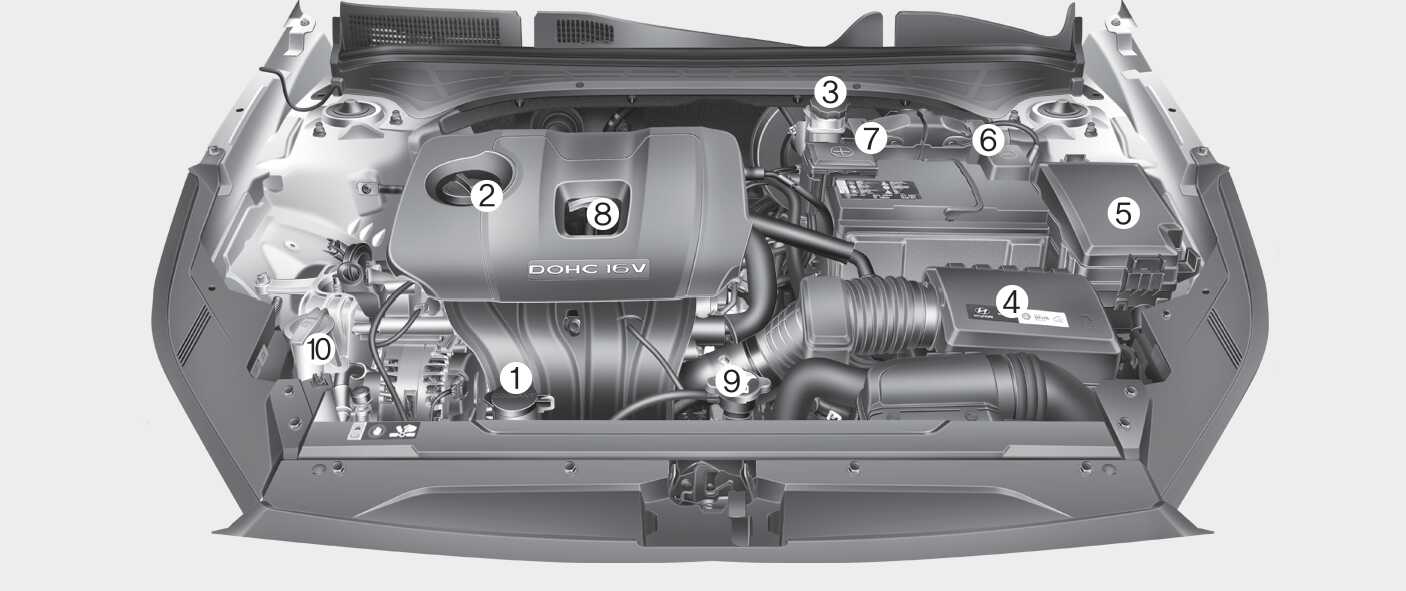

Figure 2. (Gasoline) 2.0 MPI
OBD078101L0

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake / clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir

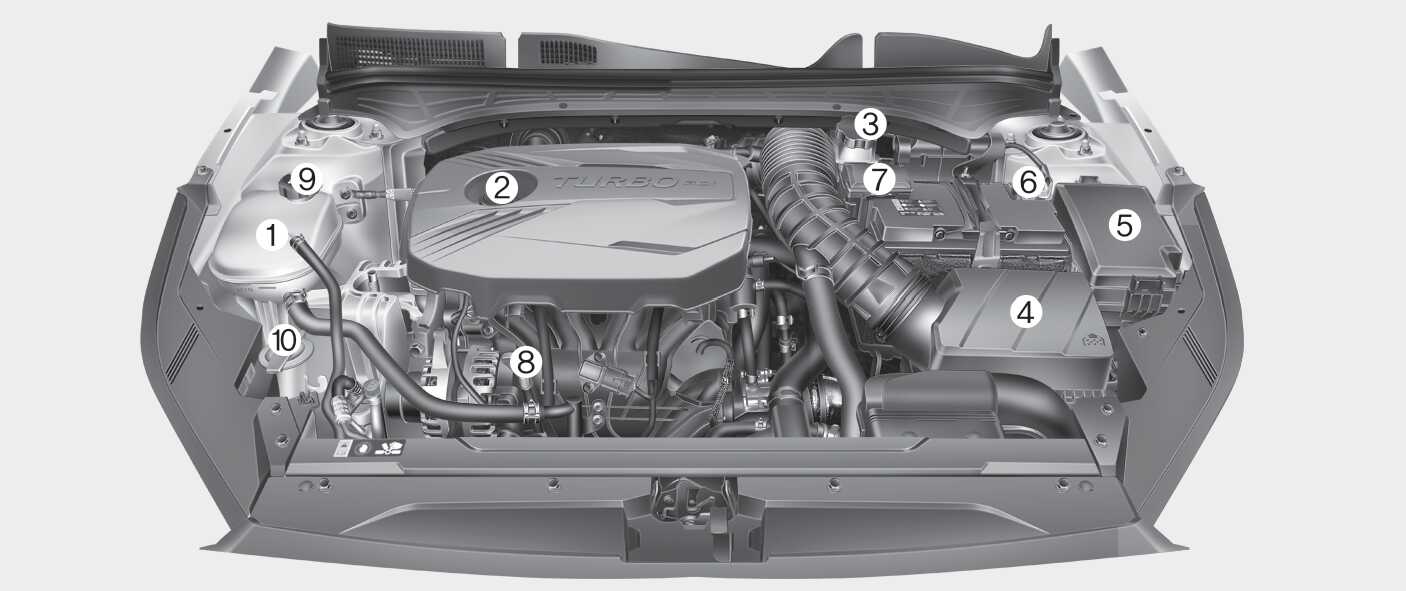

Figure 3. (Gasoline) 1.6 T-GDi
OBD071135L

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Engine oil filler cap

  3. Brake / clutch fluid reservoir

  4. Air cleaner

  5. Fuse box

  6. Negative battery terminal

  7. Positive battery terminal

  8. Engine oil dipstick

  9. Radiator cap

  10. Windshield washer fluid reservoir
