Exterior overview

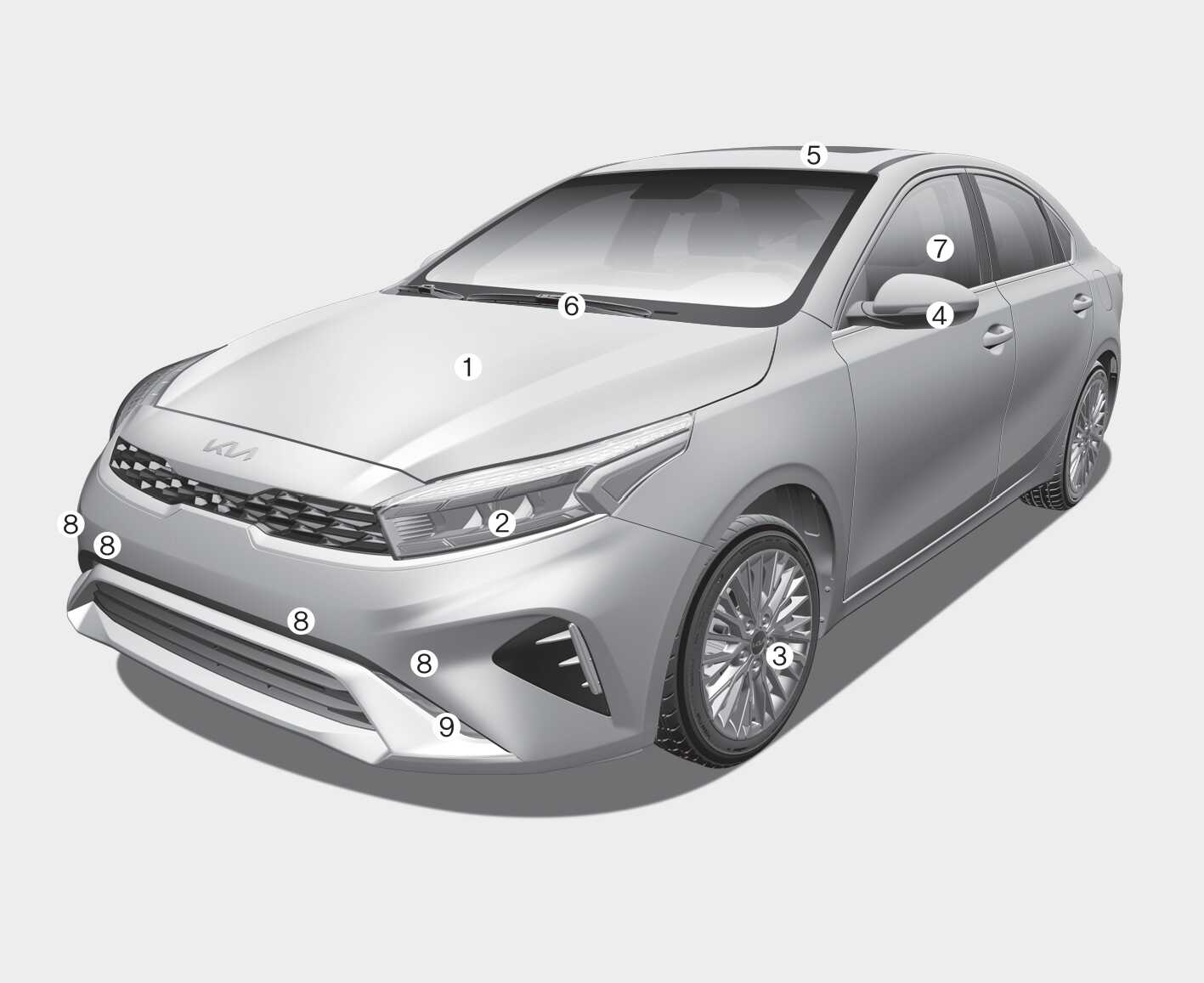

Figure 1. Front view
OBDM011001L

The actual shape may differ from the illustration.

  1. Hood Hood

  2. Head lamp (Features of your vehicle) Lighting

    Head lamp (Maintenance) Light bulb position (Front)

  3. Wheel and tire Tires and wheels, Tires and wheels

  4. Outside rear view mirror Outside rear view mirror

  5. Sunroof Sunroof

  6. Front windshield wiper blades (Features of your vehicle) Wipers and washers

    Front windshield wiper blades (Maintenance) Wiper blades

  7. Windows Windows

  8. Front ultrasonic sensors Forward/Reverse Parking Distance Warning (PDW)

  9. Front fog lamp Lighting

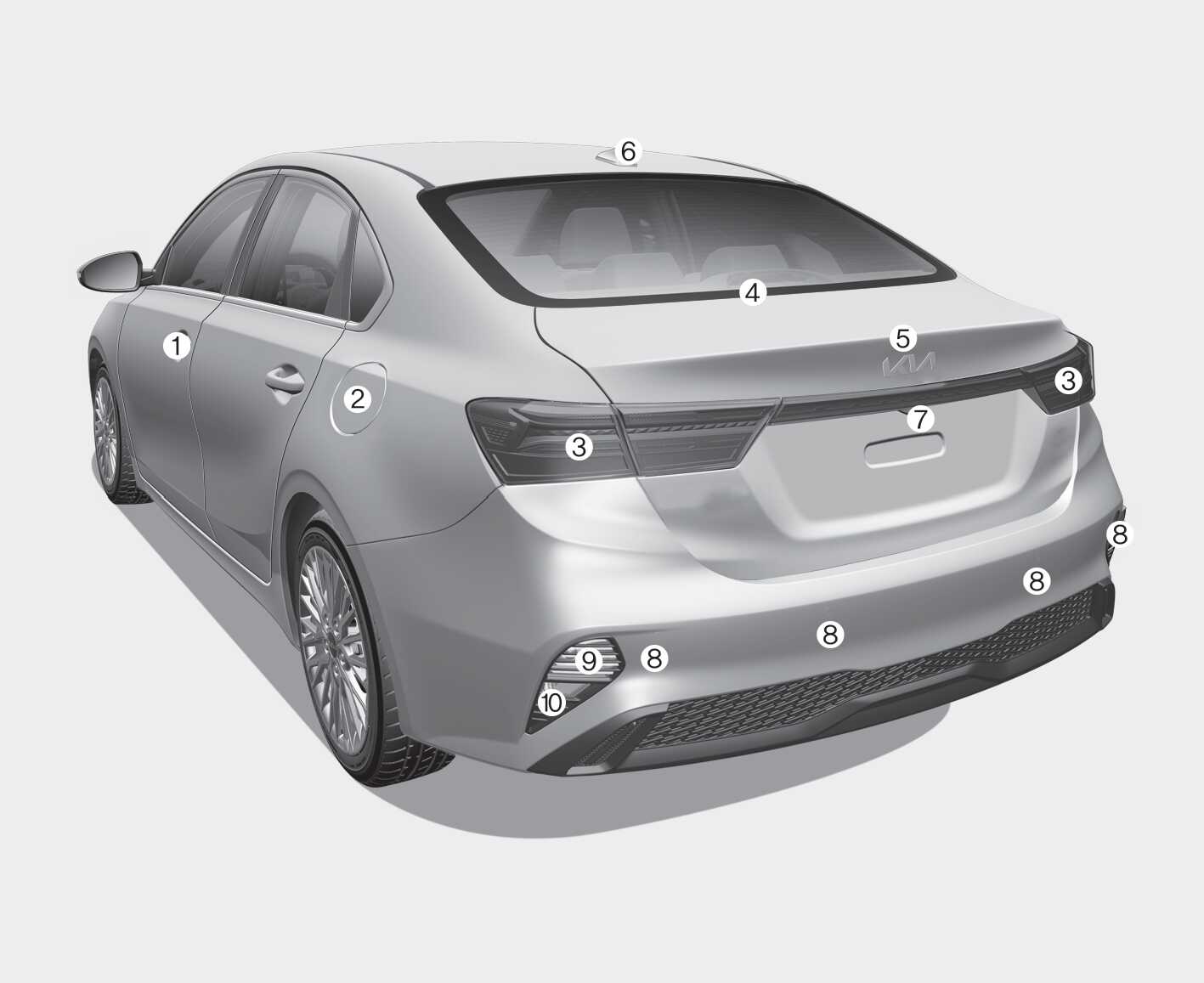

Figure 2. Rear view
OBDM011002L

The actual shape may differ from the illustration.

  1. Door locks Door locks

  2. Fuel filler door Fuel filler door

  3. Rear combination lamp (Maintenance) Light bulb position (Rear)

  4. High mounted stop lamp (Maintenance) Light bulb position (Rear)

  5. Trunk Trunk

  6. Antenna Antenna

  7. Wide-rear view camera Rear View Monitor (RVM)

  8. Rear ultrasonic sensors Reverse Parking Distance Warning (PDW), Forward/Reverse Parking Distance Warning (PDW)

  9. Rear turn signal lamp (Maintenance) Light bulb position (Rear)

  10. Back Up lamp (Maintenance) Light bulb position (Rear)
