Light bulb position (Rear)

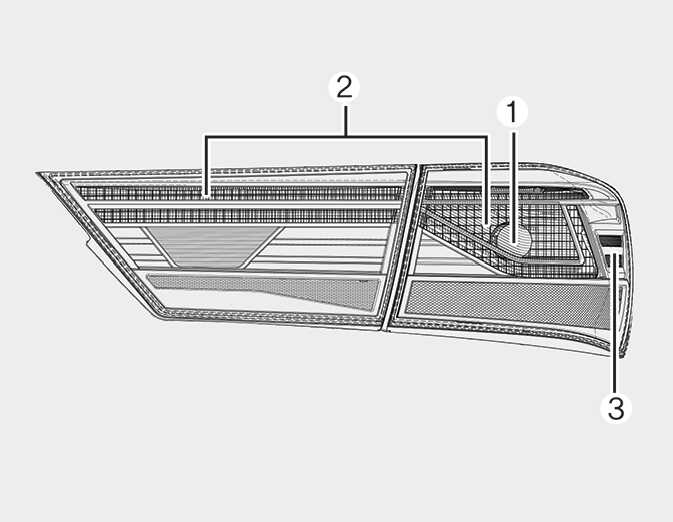

Figure 1. Rear combination lamp - Type A
OBDM071033L

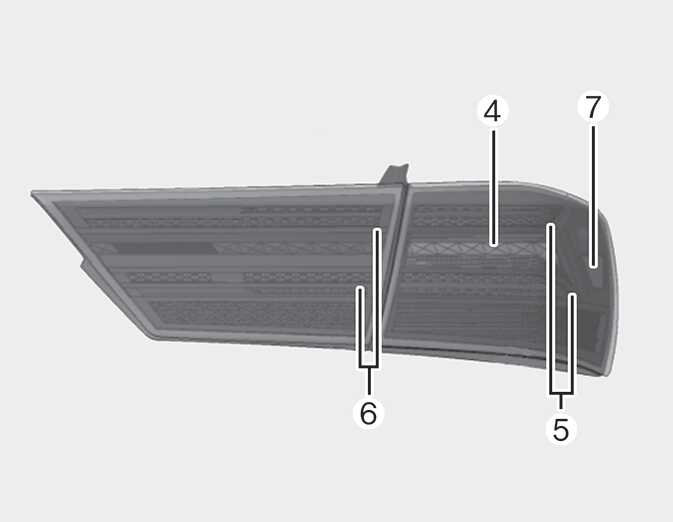

Figure 2. Rear combination lamp - Type B
OBDM071300L

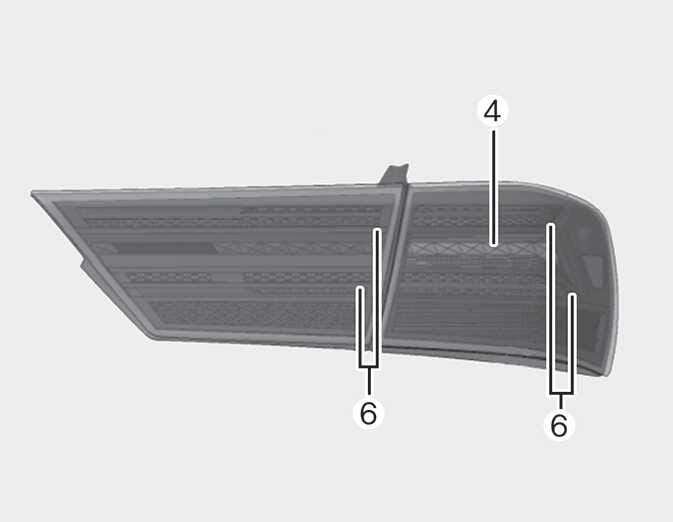

Figure 3. Rear combination lamp - Type C
OBDM071212L

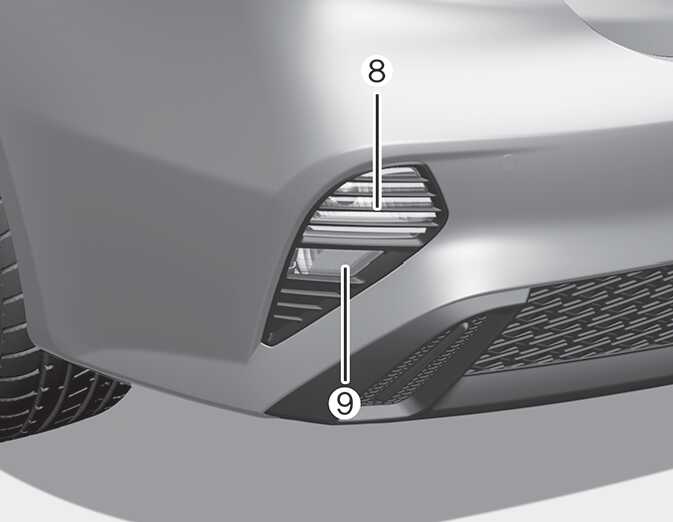

Figure 4. Rear turn signal lamp / Back up lamp
OBDM071035L

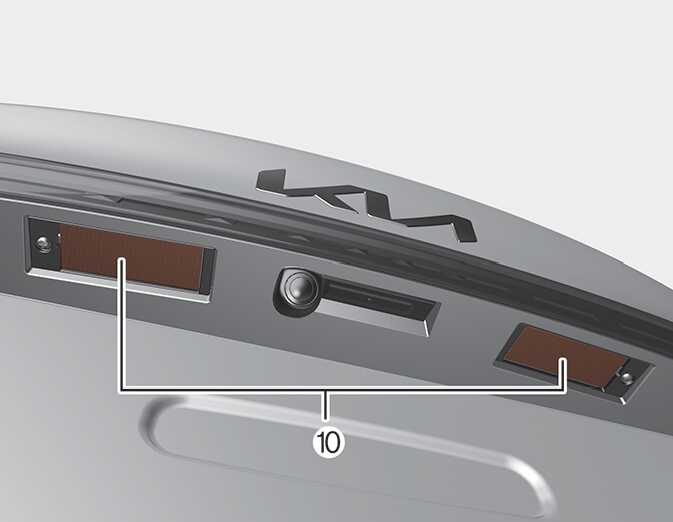

Figure 5. License plate lamp
OBDM071036L

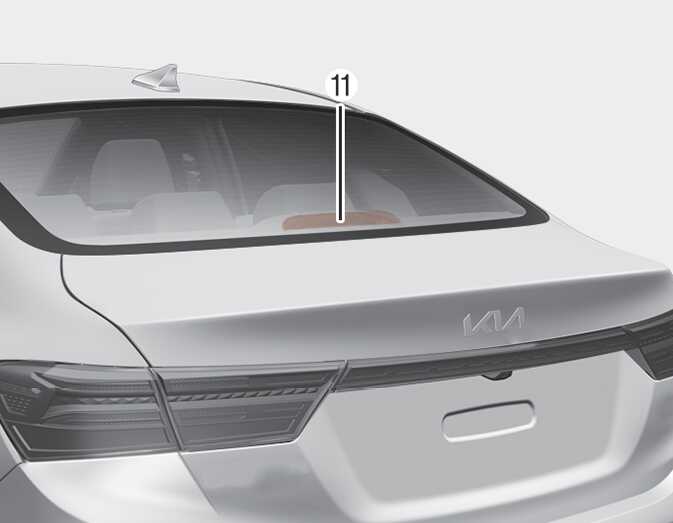

Figure 6. High mounted stop lamp
OBDM071037L

  1. Stop/Tail lamp (Bulb type)

  2. Tail lamp (Bulb type)

  3. Side marker (Bulb type)

  4. Stop lamp (LED type)

  5. Stop and Tail lamp (LED type)

  6. Tail lamp (LED type)

  7. Side marker (LED type)

  8. Rear turn signal lamp (Bulb type)

  9. Back Up lamp (Bulb type)

  10. License plate lamp (Bulb type)

  11. High mounted stop lamp (Bulb or LED type)
