LCD Display Control

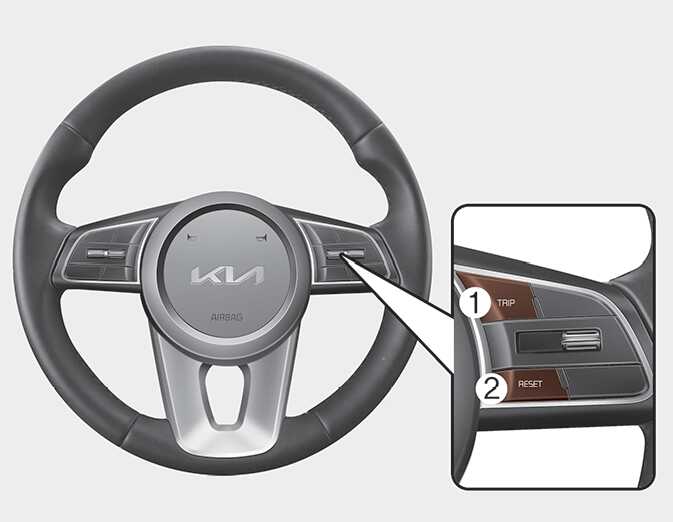

Figure 1. Type A
OBD041088L

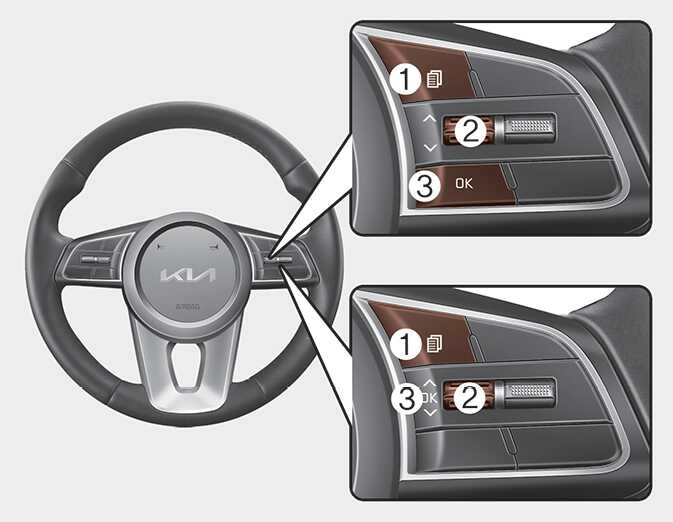

Figure 2. Type B
OBD041598

The LCD display modes can be changed by using the control buttons on the steering wheel.

  • Type A

    1. TRIP: TRIP button for changing modes.

    2. RESET: RESET button for resetting the selected item.

  • Type B

    1. : MODE button for change the LCD MODES.

    2. / : MODE scroll switch for select the items.

    3. OK: SET/RESET button for the set the items or reset the items.
