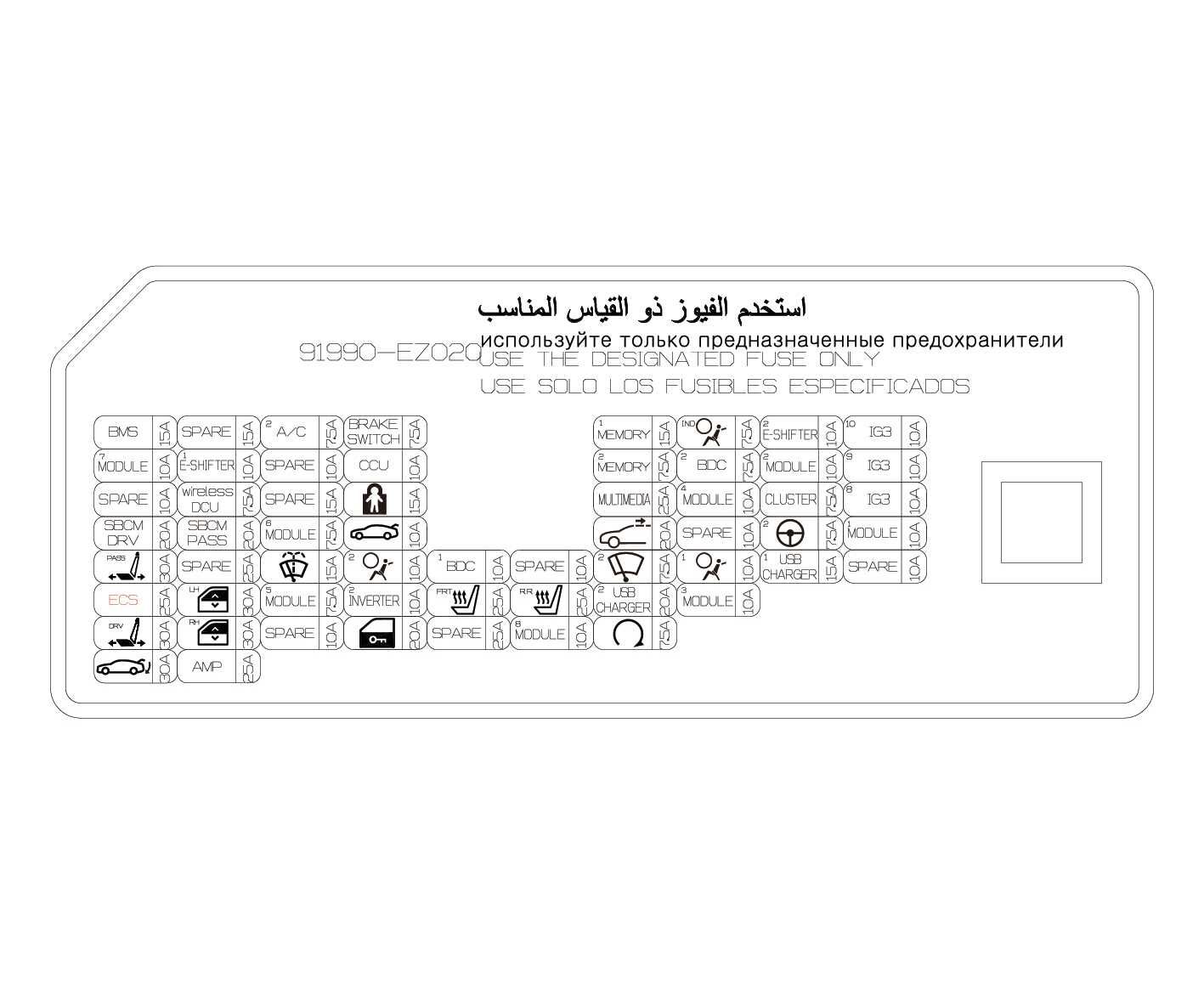

Driver's side fuse panel label
PDC Junction Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
BATTERY MANAGEMENT |
|
15A |
BMS |
|
SPARE |
|
15A |
Not Used |
|
A/C2 |
|
7.5A |
DATC (Dual Automatic Temperature Control), Front Heater Control, Rear Heater Control |
|
BRAKE SWITCH |
|
7.5A |
BDC (Body Domain Controller), Stop Lamp Switch |
|
MEMORY1 |
|
15A |
DATC (Dual Automatic Temperature Control), Front Heater Control, Rear Heater Control, ADAS Unit (Parking), BDC (Body Domain Controller : Parking Distance Warning Power), Mood Lamp Unit, Console Mood Lamp (Upper/Lower), Driver/Passenger Door Mood Lamp, ADP_CONTROLLER (Acoustic Design Platform), Front/Rear Corner Radar LH/RH, USB JACK |
|
A/BAG IND |
|
7.5A |
Overhead Console Lamp |
|
E-SHIFTER2 |
|
10A |
SBW (Shift-by-wire Control Unit) |
|
IG3 10 |
|
10A |
V2L_SIG (Vehicle to Load signal), ICCU (Integrated Charging Control Unit), VCMS (Vehicle Charge Management System), CCU (Central Communication Unit), Driver Seat Switch (Heater/Ventilation/Integrated memory system), Passenger Seat Switch (Heater/Ventilation), Rear LH/RH Safety Power Window Module |
|
MODULE7 |
|
10A |
Rain Sensor, Active Air Flap Actuator, ICC_UNIT (In Cabin Cam_UNIT), BDC (Body Domain Controller) OBD (On Board Diagnostics), VESS UNIT(Virtual Engine Sound System), REAR HEATED RELAY |
|
E-SHIFTER1 |
|
10A |
SBW (Shift-by-wire Control Unit) |
|
RESERVE |
10A |
Not Used |
|
|
CCU |
|
10A |
CCU (Central Communication Unit) |
|
MEMORY2 |
|
7.5A |
CCNC Keyboard Switch, Built In Cam UNIT DATC (Dual Automatic Temperature Control), Instrument Cluster, Head-Up Display, ADP_CONTROLLER (Acoustic Design Platform), BDC (Body Domain Controller), ETCS(Electric Toll Collection System) |
|
BDC2 |
|
7.5A |
BDC (Body Domain Controller) |
|
MODULE2 |
|
10A |
CCU (Central Communication Unit), DCU (Data Connectivity Unit), Stop Lamp Switch, Driver Power Window Switch Module |
|
IG3 9 |
|
10A |
DATC (Dual Automatic Temperature Control), CCNC (Connected Car Navigation Cockpit), DATC Control CDU (Climate Display Unit), PTC (Positive Temperature Coefficient) Heater Signal, In-car Particulate Matter Sensor,In-car Temperature Sensor |
|
RESERVE |
10A |
Not Used |
|
|
Wireless DCU |
|
7.5A |
DCU (Data Connectivity Unit) |
|
SPARE |
|
15A |
Not Used |
|
CHILD LOCK |
|
15A |
Rear LH/RH Door Power Child Lock/Unlock Motor |
|
MULTIMEDIA |
|
25A |
CCNC (Connected Car Navigation Cockpit) |
|
MODULE4 |
|
10A |
CCNC (Connected Car Navigation Cockpit), ICC_UNIT (In Cabin Cam_UNIT), I_S_MIRR_ECM (Electronic Chromic Mirror), CDU (Climate Display Unit), Front Console (WPC Wireless Power Charger), OBD (On Board Diagnostics), ADP_CONTROLLER (Acoustic Design Processor), Driver Power Seat Module, Passenger Power Seat Module, AMP (Amplifier), Built In Cam UNIT, Head Lamp Module LH/RH |
|
CLUSTER |
|
7.5A |
Instrument Cluster, Head-Up Display |
|
IG3 8 |
|
10A |
CCU (Central Communication Unit), Charging Display Lamp |
|
SBCM DRV |
|
20A |
Driver Side Body zone Control Module Driver |
|
SBCM PASS |
|
20A |
Passenger Side Body zone Control Module |
|
MODULE6 |
|
7.5A |
Head Lamp Module LH/RH |
|
TRUNK OPEN |
|
10A |
Trunk Lid Latch |
|
SUNROOF |
|
20A |
Sunroof Motor |
|
RESERVE |
10A |
Not Used |
|
|
MDPS2 |
|
7.5A |
MDPS (Motor Driven Power Steering) Signal |
|
MODULE1 |
|
10A |
AMP (Amplifier), Built In Cam UNIT, ADP_CONTROLLER (Acoustic Design Processor), BDC (Body Domain Controller), DCU (Data Connectivity Unit), CCU (Central Communication Unit), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch, ADAS Unit (Parking), C/PAD USB Charge_27W, OBD (On Board Diagnostics) |
|
P/SEAT PASS |
|
30A |
Passenger Power Seat Switch, Passenger Power Seat Module |
|
RESERVE |
25A |
Not Used |
|
|
WASHER |
|
15A |
Multi Function Switch, Integrated Circuit Module (Washer Front) |
|
AIR BAG2 |
|
10A |
ACU (Air bag Control Unit) |
|
BDC1 |
|
10A |
BDC (Body Domain Controller), Ultra WideBand & Bluetooth Low Energy MASTER/SLAVE, Ultra WideBand Trunk, Ultra WideBand Front LH/RH, Ultra WideBand Rear LH/RH |
|
RESERVE |
10A |
Not Used |
|
|
WIPER FRT2 |
|
7.5A |
BDC (Body Domain Controller), Wiper RLY |
|
AIR BAG1 |
|
10A |
ACU (Air bag Control Unit), ODS (Occupant Detection System) |
|
USB CHARGER1 |
|
15A |
Driver/Passenger Seat USB Charger |
|
RESERVE |
10A |
Not Used |
|
|
ECS |
|
25A |
ECS (Electronically Controlled Suspension) |
|
P/WINDOW LH |
|
30A |
FRT LH Safety Power Window Module, Rear LH Safety Power Window Module |
|
MODULE5 |
|
7.5A |
BDC (Body Domain Controller) |
|
INVERTER2 |
|
10A |
Rear Inverter |
|
S/HEATER FRT |
|
25A |
Driver/Passenger Seat Switch (Heater/Ventilation), |
|
S/HEATER RR |
|
25A |
Rear Seat Warmer Control Module |
|
USB CHARGER2 |
|
20A |
C/PAD USB Charge_100W |
|
MODULE3 |
|
10A |
Front View Camera, ADAS Driving ECU, C/PAD_SW_LWR, ADAS Unit (Parking), ECS (Electronically Controlled Suspension), SCM (Steering Column Module), Rear Inverter, Front/Rear Corner Radar LH/RH |
|
P/SEAT DRV |
|
30A |
Driver Power Seat Switch, Driver Power Seat Module |
|
P/WINDOW RH |
|
30A |
FRT RH Safety Power Window Module, Rear RH Safety Power Window Module |
|
RESERVE |
10A |
Not Used |
|
|
DOOR LOCK |
|
20A |
Driver/Passenger Door Latch Motor, Rear Door Latch Motor, CDM(Charging Door Module) |
|
RESERVE |
25A |
Not Used |
|
|
MODULE8 |
|
10A |
placement="inline" scale="15" Driver Power Seat Unit, Driver Power Seat Unit, Power Trunk Lid Module, Driver Power Window Switch Module |
|
START |
|
7.5A |
VPC (Vehicle Platform Controller), BDC (Body Domain Controller) |
|
POWER TRUNK |
|
30A |
Power Trunk Lid Module |
|
AMP |
|
25A |
AMP (Amplifier) |
