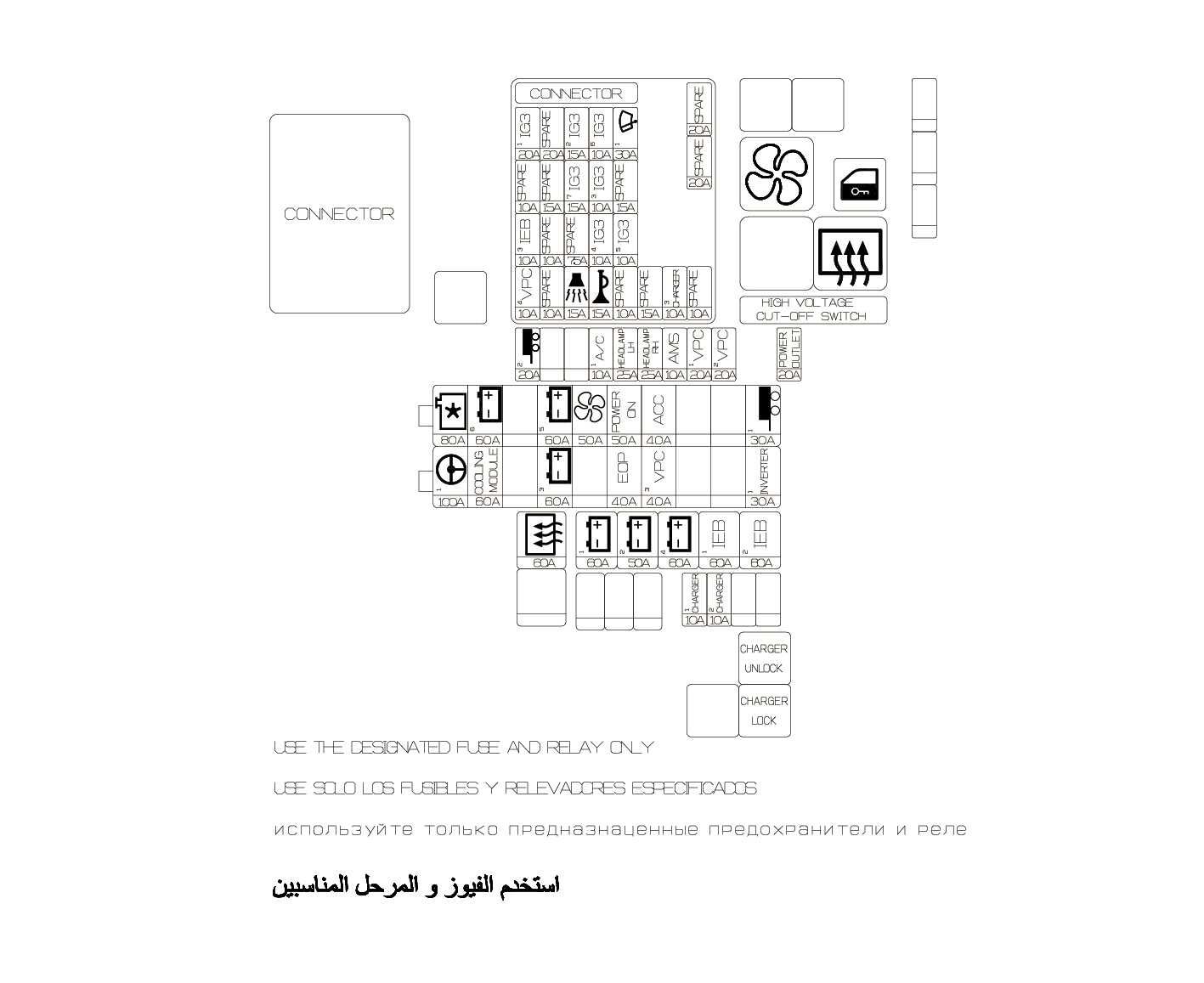

Motor compartment fuse panel
Circuit (P/R Junction Block)
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|---|
|
MULTI FUSE-1 |
MDPS1 |
|
100A |
MDPS Unit(Motor Driven Power Steering Unit) |
|
COOLING MODULE |
|
60A |
Refrigerant System Module |
|
|
B+3 |
|
60A |
PDC Junction Block (Fuse : BMS,POWER TRUNK,P/SEAT DRV, P/SEAT PASS, AMP, ECS, P/WINDOW LH, P/WINDOW RH, SBCM DRV, SBCM PASS, Wireless DCU, E-SHIFTER1, MODULE7) |
|
|
EOP |
40A |
Rear Inverter |
||
|
VPC3 |
|
40A |
VPC (Vehicle Platform Controller) |
|
|
INVERTER1 |
|
30A |
Frt Inverter |
|
|
MULTIFUSE-2 |
COOLING FAN |
|
80A |
Cooling Fan Motor |
|
B+6 |
|
60A |
PCB Block (IG3 Main Relay, Fuse : CHARGER3, HORN, B/ALARM, WIPER RLY, POWER ON RLY, IEB3, VPC4) |
|
|
B+5 |
|
60A |
PDC Junction Block (Fuse : S/HEATER RR, AIR BAG2, INVERTER2, MODULE8, SUNROOF, USB CHARGER2) |
|
|
BLOWER |
|
50A |
P/R Junciton Block (Blower Relay) |
|
|
POWER ON |
|
50A |
PCB Block (POWER ON RLY) |
|
|
ACC |
|
40A |
PCB Block (ACC ON RLY) |
|
|
TRAILER1 |
|
30A |
CTM(Can Trailer Module) |
|
|
FUSE |
B+1 |
|
60A |
PDC Junction Block (IPS3, IPS7, IPS2, IPS6, IPS5, IPS1, IPS4) |
|
B+2 |
|
50A |
PDC Junction Block (IPS9, IPS12, IPS11, IPS08, IPS10) |
|
|
B+4 |
|
60A |
PDC Junction Block (Long Term Latch Relay, IPS13, Fuse : MULTIMEDIA1, MEMORY1, MEMORY2, CHILD LOCK, BDC1, BRAKE SW, CCU, S/HEATER RR, P/.SEAT RR RH, DR LOCK, TAILGATE OPEN) |
|
|
IEB1 |
|
60A |
IEB UNIT(Integrated Electronic Brake Module) |
|
|
IEB2 |
|
60A |
IEB UNIT(Integrated Electronic Brake Module) |
|
|
TRAILER2 |
|
20A |
CTM(Can Trailer Module) |
|
|
A/C1 |
|
10A |
DATC (Dual Automatic Temperature Control) |
|
|
HEAD LAMP LH |
|
25A |
Head Lamp Module LH |
|
|
HEAD LAMP RH |
|
25A |
Head Lamp Module RH |
|
|
AMS |
|
10A |
12V Battery Sensor |
|
|
VPC1 |
|
20A |
VPC (Vehicle Platform Controller) |
|
|
VPC2 |
|
20A |
VPC (Vehicle Platform Controller) |
|
|
CHARGER1 |
|
10A |
CDM(Charging Door Module) |
|
|
CHARGER2 |
|
10A |
P/R Junciton Block (CHARGE LOCK RLY, CHARGER UNLOCK RLY) |
|
|
REAR HEATED |
|
60A |
P/R Junciton Block (Rear Heated RLY) |
|
|
HIGH VOLTAGE CUT-OFF SWITCH |
|
SHUNT FUSE |
HIGH VOLTAGE CUT-OFF SWITCH |
|
|
POWER OUTLET |
|
20A |
POWER OUTLET Frt |
|
PCB Block
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
IG3 1 |
|
20A |
PDC Junction Block (IG3_8, IG3_9, IG3_10) |
|
IG3 2 |
|
15A |
VPC (Vehicle Platform Controller) |
|
IG3 3 |
|
10A |
ICCU (Integrated Charging Control Unit) Signal |
|
IG3 4 |
|
10A |
Electric Compressor Signal, Refrigerant System Module, Cooling Fan Motor |
|
IG3 5 |
|
10A |
BMS |
|
IG3 6 |
|
10A |
Not Used |
|
IG3 7 |
|
15A |
VCMS (Vehicle Charge Management System) |
|
CHARGER3 |
|
10A |
ICCU (Integrated Charging Control Unit) Signal,VCMS (Vehicle Charge Management System) |
|
HORN |
|
15A |
Dual Horn HI/LOW |
|
B/ALARM HORN |
|
15A |
Burglar alarm Horn |
|
WIPER FRT1 |
|
30A |
PCB Block (Wiper Main Relay) |
|
IEB3 |
|
10A |
IEB UNIT(Integrated Electronic Brake Module) |
|
VPC4 |
|
10A |
VPC (Vehicle Platform Controller) |
|
Fuse Name |
Relay |
|---|---|
|
MAIN RELAY |
6P |
|
HORN |
4P |
|
B/ALARM HORN |
4P |
|
WIPER |
6P |
|
WIPER LO |
5P |
|
WIPER HI |
5P |
|
ACC |
6P |
|
POWER ON |
6P |
Relay
|
Relay Name |
Symbol |
TYPE |
|---|---|---|
|
REAR HEATED |
|
MINI |
|
CHARGER LOCK |
|
MICRO |
|
CHARGER UNLOCK |
|
MICRO |
|
DEAD LOCK |
|
MICRO |
|
BLOWER |
|
MINI |
