Wheel and tire installation

When removing and installing wheels and tires, use the tool for removing the hubcap inside the tool case to remove the hubcap.

The remover insertion hole is located at the top or edge of the hubcap.

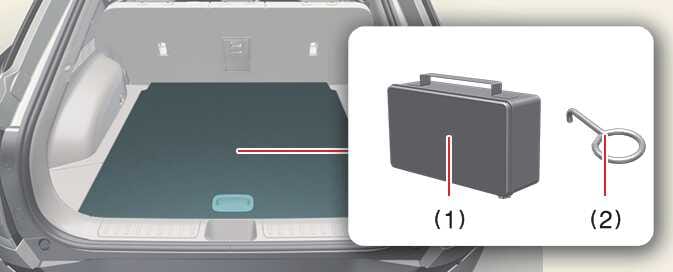

Dedicated remover storage position

OCV125007N

  1. TMK case

  2. Dedicated removal tool

How to replace the hubcap using a dedicated removal tool

OCVGT125001N

  1. Make sure to place the hubcap into the designated position when replacing the hubcap.

  2. The designated position of the hubcap depends on the shape of the wheel.

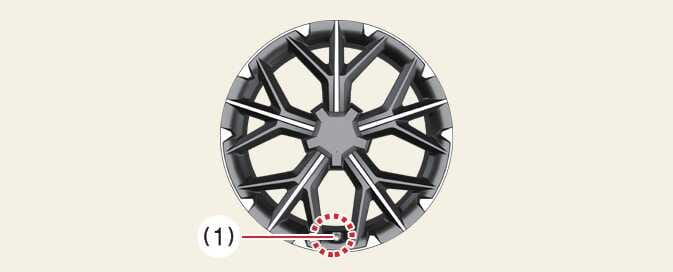

  3. Align the valve stem (1) hole in the hubcap with the emblem of the hubcap before installing.

    (1) Valve stem

OCV125008N
NOTE
OCVGT125001N

Take out the remover tool in the Tire Mobility Kit. Insert the tool to the hole and pull out the wheel cover.
