Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing the fuse/relay name and capacity.

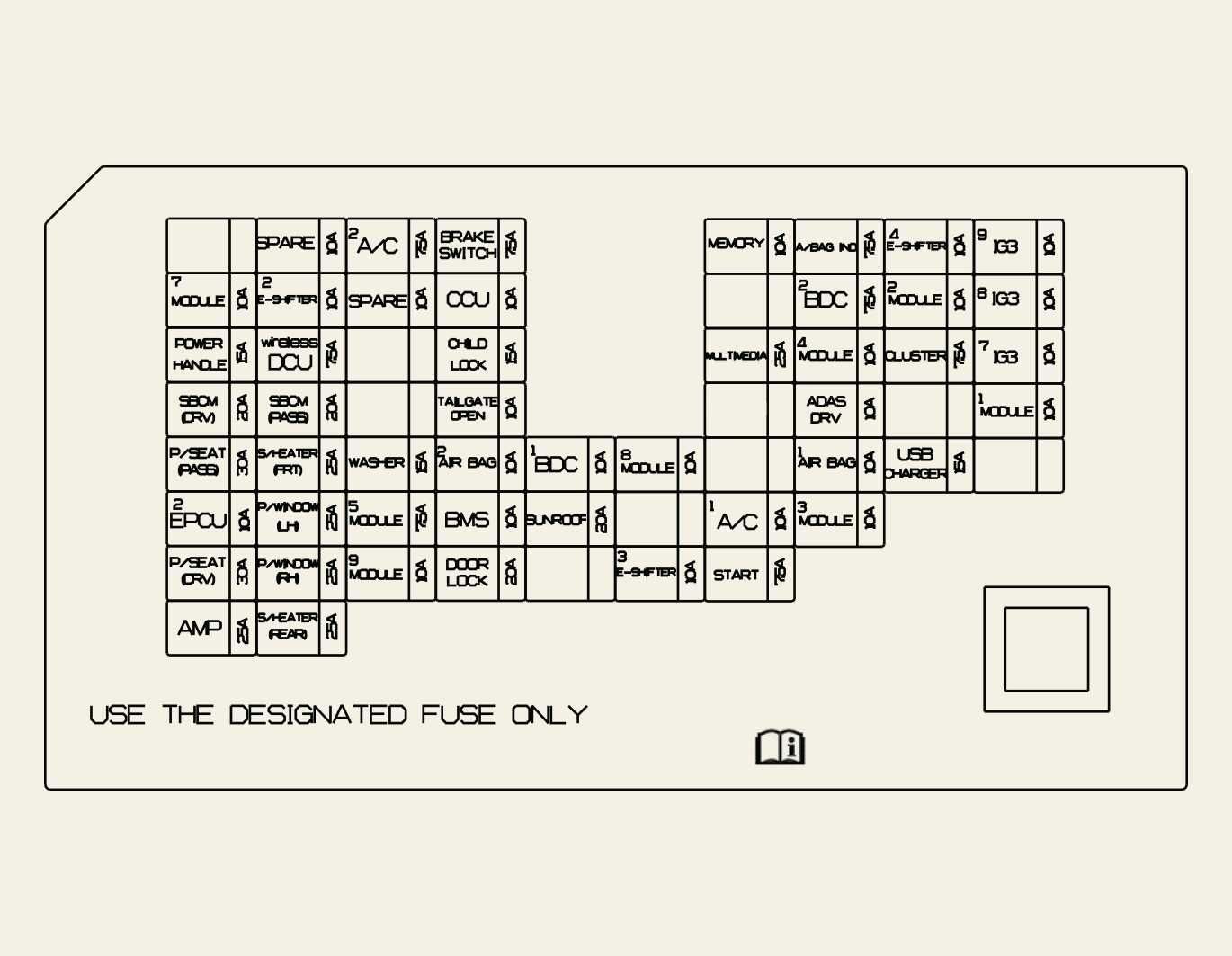

Driver side fuse panel

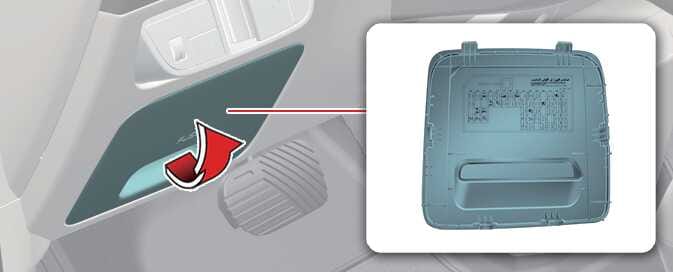

 OCV125017N |
Not all fuse panel descriptions in this manual may apply to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
CHILD LOCK |
15A |
Child Lock Relay, Child Unlock Relay |
|
A/BAG IND |
7.5A |
Overhead Console |
|
START |
7.5A |
VCU, BDC (Body Domain Controller) |
|
TAILGATE OPEN |
10A |
Liftgate Latch |
|
MODULE1 |
10A |
Multifunction Switch, BDC (Body Domain Controller), Stop Lamp Switch, Driver Door Module |
|
CLUSTER |
7.5A |
Head-Up Display, Instrument Cluster |
|
IG3 8 |
10A |
CCNC, FATC, INCAR SNSR, PTC |
|
IG3 7 |
10A |
BMS, Rear Inverter |
|
ECS |
15A |
Electronics Control Suspension |
|
MODULE3 |
10A |
Driver/Passenger Power Seat Module, Driver/Passenger Manual Seat Switch |
|
S/HEATER FRT |
25A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
WASHER |
15A |
Multifunction Switch |
|
IG3 9 |
10A |
CCU, ICCU, V2L UNIT, VCMS, Rear Electronic Oil Pump, SCU |
|
AIR BAG2 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
SUNROOF |
20A |
Sunroof Motor |
|
P/WINDOW LH |
25A |
Driver Safety Power Window Module (LHD), Passenger Safety Power Window Module (RHD), Rear Power Window Switch LH |
|
SPARE |
10A |
Not Used |
|
E-SHIFTER 3 |
10A |
Electronic ATM (Automatic Transmission) Shift Dial |
|
MODULE2 |
10A |
Front/Rear Corner Radar LH/RH, Front/Rear Inverter, ADAS Driving ECU, VESS (Virtual Engine Sound System) Unit, Front Radar, Front View Camera, ADAS Parking ECU, Console Upper Cover Switch |
|
USB CHARGER |
15A |
Driver/Passenger Seat USB Charger, Front Console USB Charger #1/#2 |
|
MEMORY |
10A |
Fuse - MEMORY2, Instrument Cluster, A/C Control Module, Console Mood Lamp (Upper/Lower), Console Floor Switch, Driver/Passenger Door Mood Lamp, Rear Door Mood Lamp LH/RH |
|
SPARE |
10A |
Not Used |
|
A/C2 |
7.5A |
A/C Control Module, High Pressure Valve, Refrigerants Valve #1/#2 P/R Junction Block (Blower Relay), BSA Chiller #1, A/C Coolant Valve |
|
AMP |
25A |
AMP (Amplifier) |
|
P/WINDOW RH |
25A |
Passenger Safety Power Window Module (LHD), Driver Safety Power Window Module (RHD), Rear Power Window Switch RH |
|
MODULE5 |
7.5A |
Data Link Connector, BDC (Body Domain Controller) |
|
BRAKE SWITCH |
7.5A |
Stop Lamp Switch, BDC (Body Domain Controller) |
|
P/SEAT DRV |
30A |
Driver Power Seat Switch, Driver Power Seat Module (With IMS (Integrated memory system)) |
|
A/C1 |
10A |
A/C Control Module |
|
AIR BAG1 |
10A |
SRS (Supplemental Restraint System) Control Module |
|
MODULE8 |
10A |
AMP (Amplifier), ADP, P/E Junction Block (Power Outlet Relay), BDC (Body Domain Controller), E-CALL Unit, ADAS Unit, Audio/Video & Navigation Keyboard, Audio/Video & Navigation Head Unit |
|
MULTIMEDIA |
25A |
Audio/Video & Navigation Head Unit |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay, Dead Lock Relay |
|
MODULE4 |
10A |
Hazard Lamp Switch, Multifunction Switch, Data Link Connector, Rain Sensor, UIP Siren, UIP Sensor, PTG Unit, Driver Door Module, Driver/Passenger Outside Mirror Unit |
|
P/SEAT PASS |
30A |
Passenger Power Seat Switch, Passenger Power Seat Module |
|
MODULE7 |
10A |
AFCU Driver/Passenger, Power Window Main SW, Active Air Flap RH/LH, ICC, ETCS, TILT TELE UNIT, BSA Chiller High Pressure Valve, Refrigerants Valve, A/C Coolant Valve |
|
POWER HANDLE |
15A |
Tilt Tele Unit |
|
SBCM DRV |
20A |
Driver Side Body zone Control Module Driver |
|
E-SHIFTER 2 |
10A |
SBW |
|
WIRELESS DCU |
7.5A |
DCU (Dosing Control Unit) |
|
SBCM PASS |
20A |
Passenger Side Body zone Control Module |
|
MODULE9 |
10A |
DRIVER/Passenger Power Seat Module |
|
CCU |
10A |
CCU (Central Communication Unit) |
|
BMS |
10A |
BMS (Battery Management System) |
|
BDC1 |
10A |
BDC (Body Domain Controller), UWB (Ultra Wide Band) |
|
E - LSD |
20A |
E-LSD |
|
BDC2 |
7.5A |
BDC (Body Domain Controller) |
|
S/HEATER RR |
25A |
Rear Seat Warmer Control Module |

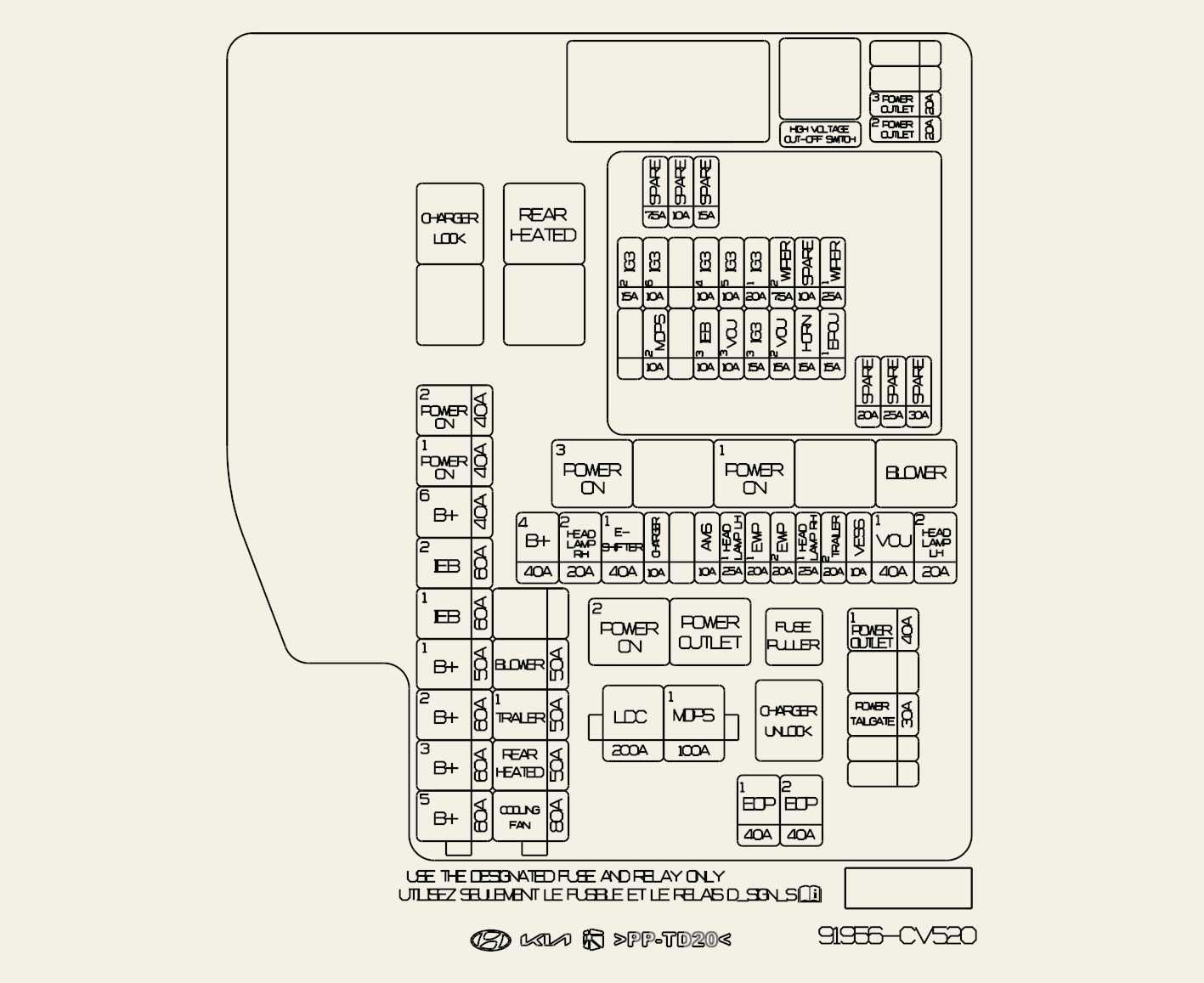

Motor compartment fuse panel

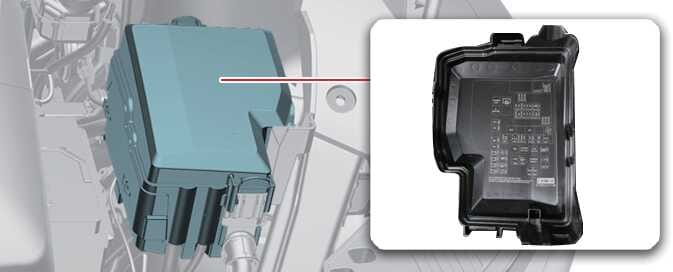

 OCV125018N |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
LDC |
200A |
P/R Junction Block (Fuse: POWER LIFTGATE, EOP1, EOP2, POWER OUTLET1) |
|
MDPS1*1 |
100A |
EPS Unit |
|
|
MULTI FUSE-3 |
B+6 |
40A |
PDC Junction Block (Fuse : MODULE8, AIR BAG2, BMS, E-SHIFTER3, MODULE9, A/C1) |
|
B+5 |
60A |
PCB Block (IG3 Main Relay, Fuse: EPCU1, VCU2, WIPER1, HORN) |
|
|
B+3 |
60A |
PDC Junction Block (Fuse: EPCU3, P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, P/WINDOW RH, AFCU, E-LSD, SUNROOF1, S/HEATER FRT, S/HEATER RR, AMP, MODULE8, LIFTGATE OPEN, CHILD LOCK) |
|
|
B+2 |
60A |
PDC Junction Block (IPS1, PS6, IPS8, IPS9, IPS10) |
|
|
B+1 |
50A |
PDC Junction Block (IPS2, IPS3, IPS5, IPS7, IPS13) |
|
|
IEB1 |
60A |
IEB Unit |
|
|
IEB2 |
60A |
IEB Unit |
|
|
POWER ON 1 |
40A |
P/R Junction Block (ACC Relay, IG1 Relay) |
|
|
POWER ON 2 |
40A |
P/R Junction Block (IG2 Relay) |
|
|
MULTI FUSE-2 |
COOLING FAN |
80A |
Cooling Fan Motor |
|
REAR HEATED |
50A |
P/R Junction Block (Rear Heated Relay) |
|
|
TRAILER1 |
50A |
Trailer Connector Unit |
|
|
BLOWER |
50A |
P/R Junction Block (Blower Relay) |
|
|
FUSE |
B+4 |
40A |
PDC Junction Block (Long Term Load Latch Relay, Fuse: BDC1, BRAKE SWITCH, AIR BAG2, A/C2, ECS, BATTERY MANAGEMENT, MODULE1, IAU, SPARE3 (B+)) |
|
E-SHIFTER1 |
40A |
P/R Junction Block (E-Shifter Relay, Fuse: E-SHIFTER2) |
|
|
CHARGER1 |
10A |
P/R Junction Block (Charger Lock/Unlock Relay), ICCU, VCMS |
|
|
CHARGER2 |
10A |
CDM |
|
|
AMS |
10A |
12V Battery Sensor |
|
|
EWP1 |
20A |
Electronic Water Pump #1 |
|
|
EWP2 |
20A |
Electronic Water Pump #2 |
|
|
TRAILER2 |
20A |
Not Used |
|
|
VESS |
10A |
VESS Unit |
|
|
VCU1 |
40A |
VCU |
|
|
POWER OUTLET1 |
40A |
P/R Junction Block (Power Outlet Relay) |
|
|
POWER TAILGATE |
30A |
PTG Unit |
|
|
EOP1 |
40A |
Rear Electronic Oil Pump |
|
|
EOP2 |
40A |
Front Electronic Oil Pump (AWD) |
|
|
E-SHIFTER2 |
10A |
P/R Junction Block (E-Shifter Relay), SCU, Electronic ATM Shift Dial |
|
|
POWER OUTLET3 |
20A |
Rear Power Outlet |
|
|
POWER OUTLET2 |
20A |
Front Power Outlet |
|
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
WIPER1 |
25A |
PCB Block (Wiper Main Relay) |
|
EPCU1 |
15A |
Front Inverter (AWD) |
|
SPARE |
10A |
Spare |
|
HORN |
15A |
PCB Block (Horn Relay) |
|
WIPER2 |
7.5A |
BDC |
|
VCU2 |
15A |
VCU |
|
IG3 1 |
20A |
PDC Junction Block (Fuse: IG3 7, IG3 8, IG3 9, IG3 10) |
|
IG3 3 |
15A |
Electronic Water Pump |
|
IG3 5 |
10A |
BMS Coolant 3Way Valve |
|
VCU3 |
10A |
VCU |
|
IG3 4 |
10A |
Front Inverter (AWD), Electronic Water Pump #1, #2, Electronic A/C Compressor |
|
IEB 3 |
10A |
IEB Unit |
|
IG3 6 |
10A |
Cooling Fan Motor, Front Electronic Oil Pump (AWD) |
|
MDPS2*1 |
10A |
EPS Unit |
|
IG3 2 |
15A |
VCU |
*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).
|
Relay No. |
Relay Name |
Type |
|---|---|---|
|
RLY. 1 |
CHARGER LOCK |
MICRO |
|
RLY. 2 |
E-SHIFTER |
MICRO |
|
RLY. 3 |
REAR HEATED |
MINI |
|
RLY. 5 |
ACC |
MICRO |
|
RLY. 7 |
IG1 |
MICRO |
|
RLY. 9 |
BLOWER |
MICRO |
|
RLY. 10 |
IG2 |
MICRO |
|
RLY. 11 |
POWER OUTLET |
MICRO |
|
RLY. 12 |
CHARGER UNLOCK |
MICRO |
