Type A

Type B

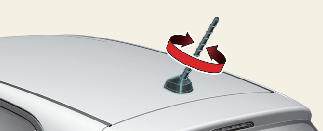

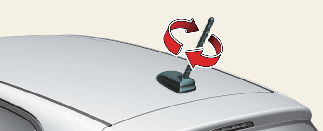

The micro-pole antenna receives an AM/FM signal. This antenna is a removable type.

To remove the antenna, turn it counterclockwise. To install the antenna, turn it clockwise.

CAUTION

Be careful not to damage the antenna or bend the antenna pole before entering the vehicle, such as an automated parking lot or a space with a low ceiling or an automatic washing machine. Turn the antenna counterclockwise when removing the pole.
Be careful not to contact the antenna when loading cargo on the roof rack. Antenna reception performance may be impaired.
When other accessories are attached to the antenna pole, antenna reception may decrease, and the pole may bend.

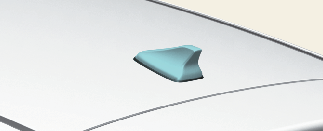

Shark-fin antenna transmit and receive signals such as AM/FM and GPS. Additional signals are sent and received according to vehicle options.

NOTICE

Be careful of antenna damage by checking the height of the vehicle before entering low-ceiling spaces such as automated parking lots or automated washing machines.
Be careful not to contact the antenna when loading cargo on the roof rack. Antenna transmission/reception performance may be degraded.
