Auto stop

To stop the engine in idle stop mode

Manual Transmission

  1. Decrease the vehicle speed to less than 5 km/h.

  2. Shift into N (Neutral) position.

  3. Release the clutch pedal.

Automated Manual Transmission

  1. Decrease the vehicle speed to 0 km/h.

  2. Depress the brake pedal with the shift lever in D (Drive) or N (Neutral).

The engine will stop and the green AUTO STOP indicator () on the instrument cluster will illuminate. If your vehicle is equipped with a supervision cluster, the notice will illuminate on the LCD display.

NOTICE

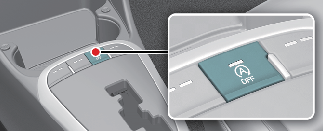

  • If you unfasten the seat belt or open the driver’s door (engine hood) in auto stop mode, the light on the ISG OFF button will illuminate and ISG system is deactivated. If your vehicle is equipped with a supervision cluster, the notice will illuminate on the LCD display. Turn the ignition switch or ENGINE START/STOP button to the START position to start the engine manually.

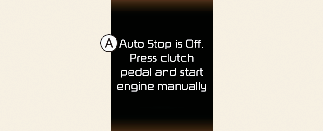

    A: Auto Stop is Off. Press clutch pedal and start engine manually

  • If you shift the gear from N (Neutral) to D (Manual mode) or R without depressing the brake pedal after stopping engine automatically, the engine does not restart automatically and a warning chime alarms. When this happens, press the brake pedal for auto start.

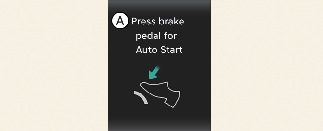

    A: Press brake pedal for Auto Start
