Fuse/relay panel description

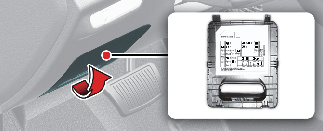

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

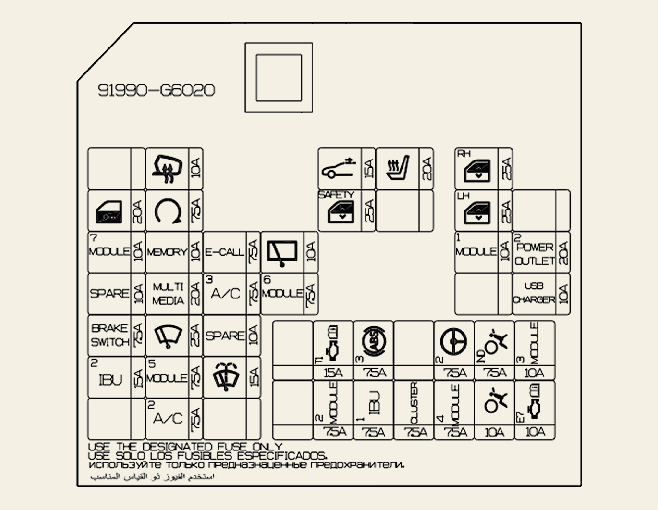

Driver’s side fuse panel
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
RESERVE |
- |
- |
|
|
HEATED MIRROR |
|
10A |
ECU, OUTSIDE MIRROR, MTC, FATC |
|
SUNROOF |
|
15A |
SUNROOF |
|
S/HEATER FRT |
|
20A |
FRT SEAT DRV, FRT SEAT PASS |
|
P/WINDOW RH |
|
25A |
POWER WINDOW RH |
|
SAFETY P/WINDOW |
|
25A |
SAFETY P/WINDOW ECU |
|
RESERVE |
- |
- |
|
|
DOOR LOCK |
|
20A |
DOOR LOCK ACTR, TAIL GATE UNLOCK ACTR |
|
START |
|
7.5A |
START RLY |
|
P/WINDOW LH |
|
25A |
POWER WINDOW LH |
|
RESERVE |
- |
- |
|
|
MODULE 7 |
|
10A |
OBD, TELE UNIT, ICC UNIT |
|
MEMORY |
|
10A |
MTC, FATC, CLUSTER, PHOTO SENSOR |
|
E-CALL |
|
7.5A |
E-CALL |
|
WIPER RR |
|
10A |
REAR WIPER MOTOR |
|
MODULE 1 |
|
10A |
E-CALL BUTTON, OUTSIDE MIRROR SWITCH, E-CALL LOW DC-DC CONVERTER, AUDIO, IBU |
|
POWER OUTLET 2 |
|
20A |
POWER OUTLET |
|
SPARE |
|
10A |
- |
|
MULTIMIDIA |
|
20A |
LOW DC-DC CONVERTER, AUDIO |
|
A/C 3 |
|
7.5A |
FATC |
|
MODULE 6 |
|
7.5A |
FRT SEAT DRV, FRT SEAT PASS |
|
RESERVE |
- |
- |
|
|
USB CHARGER |
|
10A |
FRT USB CHARGER RR USB CHARGER |
|
BRAKE SWITCH |
|
7.5A |
BRAKE SW, IBU |
|
WIPER FRT |
|
25A |
FRT WIPER MOTOR |
|
SPARE |
|
10A |
- |
|
RESERVE |
- |
- |
|
|
TCU 1 |
|
15A |
SPEED SENSOR, INHIBIT SW, AMT ECU, AMT SHIFT |
|
ABS 3 |
|
7.5A |
ABS UNIT, ESC UNIT, EPB UNIT |
|
RESERVE |
- |
- |
|
|
MDPS 2 |
|
7.5A |
MDPS |
|
A/BAG IND |
|
7.5A |
CLUSTER, MTC, FATC |
|
MODULE 3 |
|
10A |
FRT RADAR, C PAD SW, EPB SW, IBU, RR CONER RADAR FRT CAMERA |
|
IBU 2 |
|
15A |
IBU |
|
MODULE 5 |
|
7.5A |
IBU |
|
WASHER |
|
15A |
M_F_SW(WASHER MTR) |
|
RESERVE |
- |
- |
|
|
A/C 2 |
|
7.5A |
MTC, FATC, DUAL SW, BLOWER RLY, PTC RLY |
|
RESERVE |
- |
- |
|
|
RESERVE |
- |
- |
|
|
MODULE 2 |
|
7.5A |
BRAKE SW |
|
IBU 1 |
|
7.5A |
IBU |
|
CLUSTER |
|
7.5A |
CLUSTER |
|
MODULE 4 |
|
7.5A |
OBD, E-CALL, AUDIO, MTC, FATC, LOW DC-DC CONVERTER AMT SHIFT LEVER IND, HLLD, ROOM MIRROR, FRT SEAT DRV, FRT SEAT PASS, CONSOLE SW, ICC UNIT |
|
AIR BAG |
|
10A |
ACU |
|
ECU 7 |
|
10A |
ECU |

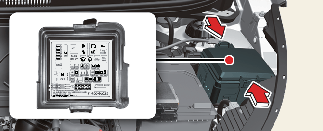

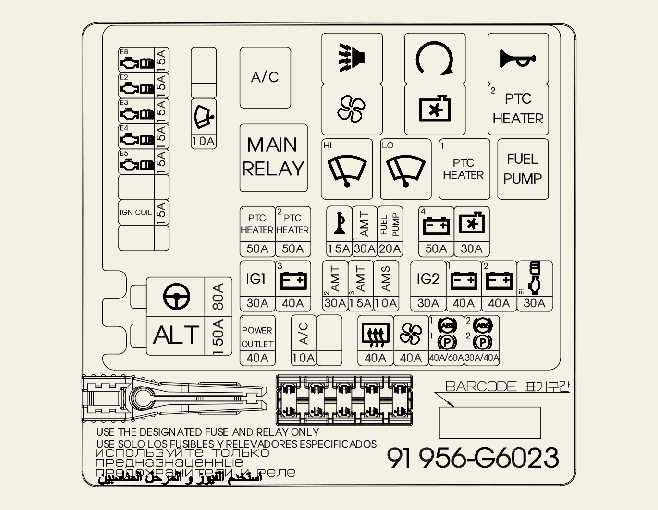

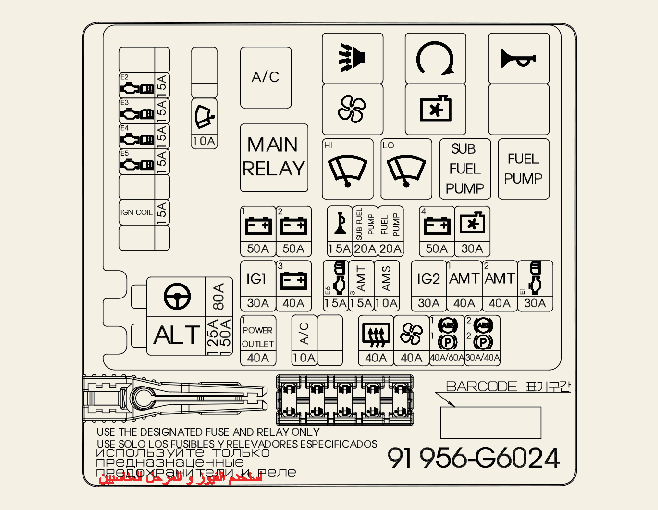

Engine compartment fuse panel
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|---|
|
MULTI FUSE |
ALT |
|
150A |
MPI ENG(NON-ISG : 125A, ISG : 150A), GDI ENG(150A) |
|
MDPS |
|
80A |
MDPS |
|
|
S/B LP FUSE |
PTC1 |
|
50A |
MPI ENG(ICU : IPS1, IPS2, IPS3, IPS4, IPS6), GDI ENG(PTC1) |
|
PTC2 |
|
50A |
MPI ENG(ICU : IPS7, IPS8, IPS9, IPS10, IPS12), GDI ENG(PTC2) |
|
|
B+4 |
|
50A |
ICU(PWINDOW RLY, FUSE : SAFETY P/WINDOW, SUNROOF, P/WINDOW LH, P/WINDOW RH, SEAT HEATER FRT) |
|
|
C/FAN |
|
30A |
COOLING FAN |
|
|
RR HTD |
|
40A |
REAR GLASS HEATED |
|
|
BLOWER |
|
40A |
BLOWER MOTOR |
|
|
ABS1/EPB1 |
|
40/60A |
ABS UNIT, ESC UNIT, EPB UNIT |
|
|
ABS2/EPB2 |
|
30/40A |
ABS UNIT, ESC UNIT, EPB UNIT |
|
|
S/B M FUSE |
IG1 |
|
30A |
ICU(FUSE : USB CHARGER, MODULE1, AIR BAG, MDPS2, CLUSTER, MODULE2, MODULE3, MODULE4, IBU1, A/BAG IND, ECU7, TCU, ABS3) |
|
B+3 |
|
40A |
ICU(LATCH RLY, FUSE : MULTI MEDIA, MEMORY, E-CALL) |
|
|
IG2 |
|
30A |
START MOTOR, B/ALARM RLY, ICU(FUSE: WIPER FRT, WASHER, WIPER RR, A/C2, MODULE5, MODULE6, START) |
|
|
B+1 |
|
40A |
MPI ENG(AMT_ECU), GDI ENG(ICU : IPS1, IPS2, IPS3, IPS4, IPS6) |
|
|
B+2 |
|
40A |
MPI ENG(AMT_ECU), GDI ENG(ICU : IPS7, IPS8, IPS9, IPS10, IPS12) |
|
|
ECU1 |
|
30A |
MAIN RLY(ECU PWR ETC), FUSE : ECU2, ECU3 |
|
|
P/OUTLET1 |
|
40A |
POWER OUTLET |
|
|
MICRO FUSE |
HORN |
|
15A |
HORN, B/A HORN |
|
AMT1 |
|
30A |
GDI(AMT ECU) |
|
|
F/PUMP |
|
20A |
FUEL PUMP |
|
|
AMT2 |
|
30A |
GDI(AMT ECU) |
|
|
AMT3 |
|
15A |
AMT ECU |
|
|
AMS |
|
10A |
BATT SENSOR |
|
|
A/CON |
|
10A |
A/C COMPRESSOR |
|
|
WIPER |
|
10A |
ECU, IBU |
|
|
ECU2 |
|
15A |
ECU |
|
|
ECU3 |
|
15A |
ECU |
|
|
ECU4 |
|
15A |
ENG SENSOR |
|
|
ECU5 |
|
15A |
ECU, INJECTOR |
|
|
IGN COIL |
|
15A |
IGNITION COIL |
|
|
Relay Name |
Symbol |
Type |
|---|---|---|
|
MAIN |
|
MINI |
|
A/CON |
|
MICRO |
|
B/A HORN |
|
MICRO |
|
START |
|
H/C MICRO |
|
HORN |
|
MICRO |
|
BLOWER |
|
H/C MICRO |
|
C/FAN |
|
H/C MICRO |
|
PTC2(GDI) |
|
H/C MICRO |
|
WIPER FRT HI |
|
H/C MICRO |
|
WIPER FRT LO |
|
H/C MICRO |
|
PTC1(GDI) |
|
H/C MICRO |
|
F/PUMP |
|
MICRO |
|
Fuse Name |
Symbol |
Fuse Rating |
Circuit Protected |
|
|---|---|---|---|---|
|
MULTI FUSE |
ALT |
|
125/150A |
MPI ENG(NON-ISG : 125A, ISG : 150A), GDI ENG(150A) |
|
MDPS |
|
80A |
MDPS |
|
|
S/B LP FUSE |
B+1 |
|
50A |
MPI ENG(ICU : IPS1, IPS2, IPS3, IPS4, IPS6), GDI ENG(PTC1) |
|
B+2 |
|
50A |
MPI ENG(ICU : IPS7, IPS8, IPS9, IPS10, IPS12), GDI ENG(PTC2) |
|
|
B+4 |
|
50A |
ICU(PWINDOW RLY, FUSE : SAFETY P/WINDOW, SUNROOF, P/WINDOW LH, P/WINDOW RH, SEAT HEATER FRT) |
|
|
C/FAN |
|
30A |
COOLING FAN |
|
|
RR HTD |
|
40A |
REAR GLASS HEATED |
|
|
BLOWER |
|
40A |
BLOWER MOTOR |
|
|
ABS1/EPB1 |
|
40/60A |
ABS UNIT, ESC UNIT, EPB UNIT |
|
|
ABS2/EPB2 |
|
30/40A |
ABS UNIT, ESC UNIT, EPB UNIT |
|
|
S/B M FUSE |
IG1 |
|
30A |
ICU(FUSE : USB CHARGER, MODULE1, AIR BAG, MDPS2, CLUSTER, MODULE2, MODULE3, MODULE4, IBU1, A/BAG IND, ECU7, TCU, ABS3) |
|
B+3 |
|
40A |
ICU(LATCH RLY, FUSE : MULTI MEDIA, MEMORY, E-CALL) |
|
|
IG2 |
|
30A |
START MOTOR, B/ALARM RLY, ICU(FUSE: WIPER FRT, WASHER, WIPER RR, A/C2, MODULE5, MODULE6, START) |
|
|
AMT1 |
|
40A |
MPI ENG(AMT_ECU), GDI ENG(ICU : IPS1, IPS2, IPS3, IPS4, IPS6) |
|
|
AMT2 |
|
40A |
MPI ENG(AMT_ECU), GDI ENG(ICU : IPS7, IPS8, IPS9, IPS10, IPS12) |
|
|
ECU1 |
|
30A |
MAIN RLY(ECU PWR ETC), FUSE : ECU2, ECU3 |
|
|
P/OUTLET1 |
|
40A |
POWER OUTLET |
|
|
MICRO FUSE |
HORN |
|
15A |
HORN, B/A HORN |
|
SUB F_PUMP |
|
20A |
FFV(SUB FUEL PUMP) |
|
|
F/PUMP |
|
20A |
FUEL PUMP |
|
|
ECU6 |
|
15A |
MPI(ECU) |
|
|
AMT3 |
|
15A |
AMT ECU |
|
|
AMS |
|
10A |
BATT SENSOR |
|
|
A/CON |
|
10A |
A/C COMPRESSOR |
|
|
WIPER |
|
10A |
ECU, IBU |
|
|
ECU2 |
|
15A |
ECU |
|
|
ECU3 |
|
15A |
ECU |
|
|
ECU4 |
|
15A |
ENG SENSOR |
|
|
ECU5 |
|
15A |
ECU, INJECTOR |
|
|
IGN COIL |
|
15A |
IGNITION COIL |
|
|
Relay Name |
Symbol |
Type |
|---|---|---|
|
MAIN |
|
MINI |
|
A/CON |
|
MICRO |
|
B/A HORN |
|
MICRO |
|
START |
|
H/C MICRO |
|
HORN |
|
MICRO |
|
BLOWER |
|
H/C MICRO |
|
C/FAN |
|
H/C MICRO |
|
WIPER FRT HI |
|
H/C MICRO |
|
WIPER FRT LO |
|
H/C MICRO |
|
SUB F/PUMP(FFV) |
|
MICRO |
|
F/PUMP |
|
MICRO |
