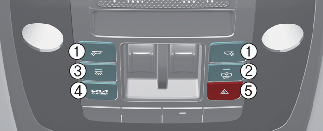

• / (1): Turn on and off the interior lights independently.

• (2): DOOR mode

  • The map lamp and interior lamps illuminate when a door is opened. The lamps go out after approximately 30 seconds. (without pressing the DOOR button (2))

  • The map lamp and interior lamps come on for approximately 30 seconds when doors are unlocked with a smart key if the doors are not opened.

  • The map lamp and interior lamps will stay on for approximately 10 minutes if a door is opened and the ENGINE START/STOP button in the ACC or OFF position.

  • The map lamp and interior lamps will stay on continuously if the door is opened and the ENGINE START/STOP button in the ON position.

  • The map lamp and interior lamps will turn off immediately if the ENGINE START/STOP button is changed to the ON position or all doors are locked.

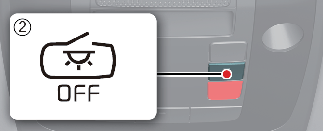

  • To turn off the DOOR mode, press the DOOR button (2) once again (not pressed).

  • The rear room lamp cannot be operated separately if the 1st row DOOR mode button () is pressed.

  • When the 1st row button () is pressed, the rear room lamps turn on simultaneously. In this case, room lamp cannot be turned off separately.

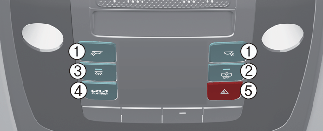

• (3): Press this switch to turn the front and rear interior lamps on and off.

For Telematics function

• Kia Connect (4): Kia Connect (Voice local search) button

• (5): Roadside assist button
