Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may apply to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

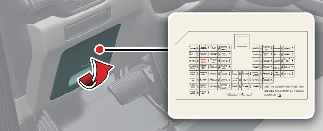

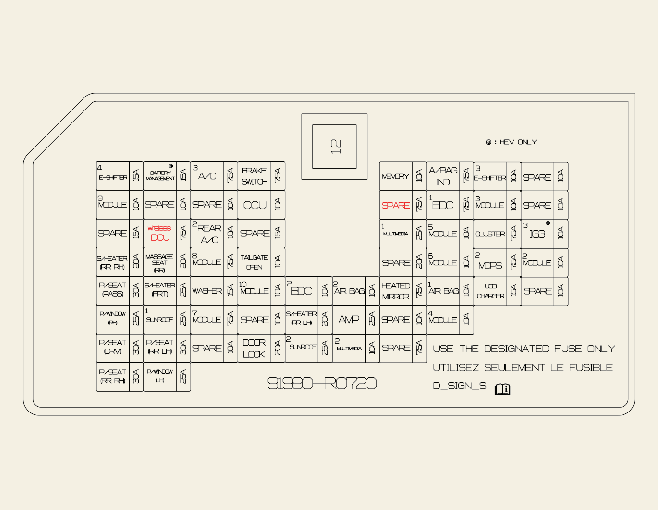

Driver's side fuse panel
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
E-SHIFTER 4 |
15A |
SCU (Shift-by-wire Control Unit) (B+) |
|
BATTERY MANAGEMENT |
15A |
BMS (Battery Management System) (B+) |
|
A/C 3 |
7.5A |
DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Engine Room Junction Block (Front Blower Relay, PTC Heater2 Relay) |
|
BRAKE SWITCH |
7.5A |
BDC (Body Domain Controller), Stop Lamp Switch |
|
MEMORY |
10A |
Instrument Cluster, DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Advanced Driver Assistance Systems Parking ECU, Crash Pad Switch, Console Switch (Upper), Built-in Cam Unit, Rear A/C Control Switch, Mood Lamp Module, BDC (Body Domain Controller) |
|
A/BAG IND |
7.5A |
Passenger Airbag Indicator (IG1) |
|
E-SHIFTER 3 |
10A |
SCU (Shift-by-wire Control Unit) (IG1) |
|
SPARE |
10A |
Not Used |
|
MODULE 9 |
10A |
ETCS( Electronic Toll Collection System), Key Inter Lock Solenoid, FRONT TRAY USB INDICATOR, Hazard Switch, ATM (Automatic Transmission)shift dial, Rain Sensor |
|
SPARE |
10A |
Not Used |
|
SPARE |
10A |
Not Used |
|
CCU |
10A |
CCU (Central Communication Unit) |
|
SPARE |
7.5A |
Not Used |
|
BDC 1 |
7.5A |
BDC (Body Domain Controller) (IG1) |
|
MODULE 3 |
10A |
DCU (Data Connectivity Unit), CCU (Central Communication) Unit, DAU (Door Area Unit) |
|
SPARE |
10A |
Not Used |
|
SPARE |
15A |
Not Used |
|
Wireless DCU |
7.5A |
DCU (Data Connectivity Unit) (B+) |
|
REAR A/C 2 |
10A |
DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Engine Room Junction Block (Rear Blower Relay) |
|
SPARE |
15A |
Not Used |
|
MULTIMEDIA |
25A |
CCNC (Connected Car Navigation Cockpit) |
|
MODULE5 |
10A |
ETCS (Electronic Toll Collection System), I_S_MIRR_DCM (Digital Center Mirror), I_S_MIRR_ECM (Electronic Chromic Mirror), DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), CCNC (Connected Car Navigation Cockpit), Built-in Cam Unit, FRONT TRAY WIRELESS CHARGER, Front Console (FPM Finger Print Module), Power Window Switch RL/RH, AMP (Amplifier) (BOSE), Head Lamp Module LH/RH |
|
CLUSTER |
7.5A |
Instrument Cluster, HUD (Head-Up Display) |
|
IG3 3 |
10A |
CCU (Central Communication Unit) (IG3) |
|
REAR RH S/HEAT |
20A |
2nd Seat Warmer Control Module, 2nd Seat RH Air Ventilation Control Module |
|
REAR MASSAGE SEAT |
20A |
2nd Seat Massage Module |
|
MODULE 8 |
7.5A |
AC Inverter Module, AC Inverter (Rear), Engine Room Junction Block (Windshield Heated Glass 1/2 Relay), Powernet Domain Controller extended, 20AH (20HR)[BATTERY LITHIUM TYPE-SUB] |
|
TAIL GATE |
10A |
Tail Gate Open Relay |
|
SPARE |
20A |
Not Used |
|
MODULE 6 |
10A |
Overhead Console Indicator, Powernet Domain Controller extended |
|
MDPS 2*1 |
7.5A |
MDPS (Motor Driven Power Steering) |
|
MODULE 2 |
10A |
AMP (Amplifier) (BOSE), Air Cleaner, DCU (Data Connectivity Unit), Advanced Driver Assistance Systems Parking ECU, Built-in Cam Unit, BDC (Body Domain Controller), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch |
|
PASSENGER P/SEAT |
30A |
Passenger Walk-In Module, Passenger Power Seat Switch |
|
FRONT S/HEAT |
25A |
Front Seat Warmer Control Module, Front Seat Air Ventilation Control Module |
|
WASHER |
15A |
Multi Function Switch |
|
MODULE 10 |
10A |
Power Tail Gate Module, Driver/Passenger Door Outside Handle Antenna, Front Air Ventilation Seat Control Module, 2nd Seat LH/RH Relax Module |
|
BDC 2 |
10A |
BDC (Body Domain Controller) (B+), DAU (Door Area Unit), Driver/Passenger Door Outside Handle Antenna, Ultra Wide Band & Bluetooth Low Energy MASTER/SLAVE, Ultra Wide Band Front LH/RH, Ultra Wide Band Rear LH/RH |
|
AIR BAG2 |
10A |
ACU (Airbag Control Unit), ODS (Occupant Detection System) |
|
HEATED MIRROR |
7.5A |
Driver/Passenger Outside Handle |
|
AIR BAG 1 |
10A |
Airbag Control Unit (IG1) |
|
USB CHARGER |
15A |
Driver/Passenger Seat USB Charger, Luggage USB Charger LH, Luggage USB Charger Unit, FRONT TRAY USB CHARGER |
|
SPARE |
10A |
Not Used |
|
PASSENGER P/WINDOW |
25A |
Rear Power Window Switch RH, Rear Safety Power Window Module RH, Passenger Power Window Switch, Passenger Safety Power Window Module |
|
SUNROOF 1 |
25A |
Front Sunroof Motor |
|
MODULE 7 |
7.5A |
BDC (Body Domain Controller) (IG2) |
|
SPARE |
10A |
Not Used |
|
REAR LH S/HEAT |
20A |
2nd Seat Warmer Control Module, 2nd Seat LH Air Ventilation Control Module |
|
AMP |
25A |
AMP (Amplifier) (BOSE) |
|
SPARE |
10A |
Not Used |
|
MODULE 4 |
10A |
Crash Pad Switch, Advanced Driver Assistance Systems Parking ECU, Front/Rear Corner Radar LH/RH, Front View Camera, Console Switch (Upper) |
|
DRIVER P/SEAT |
30A |
Driver IMS (Integrated Memory System) Control Module, Driver Power Seat Switch |
|
REAR LH P/SEAT |
30A |
2nd Seat LH Relax Module |
|
SPARE |
10A |
Not Used |
|
DOOR LOCK |
20A |
Door Lock Relay, Door Unlock Relay, FUEL FILLER OPENER |
|
SUNROOF 2 |
25A |
Rear Sunroof Motor |
|
MULTIMEDIA 2 |
10A |
CCRC (Connected Car Rear Cockpit) |
|
SPARE |
7.5A |
Not Used |
|
REAR RH P/SEAT |
30A |
2nd Seat RH Relax Module |
|
DRIVER P/WINDOW |
25A |
Rear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Power Window Switch, Driver Safety Power Window Module |
* 1. MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).

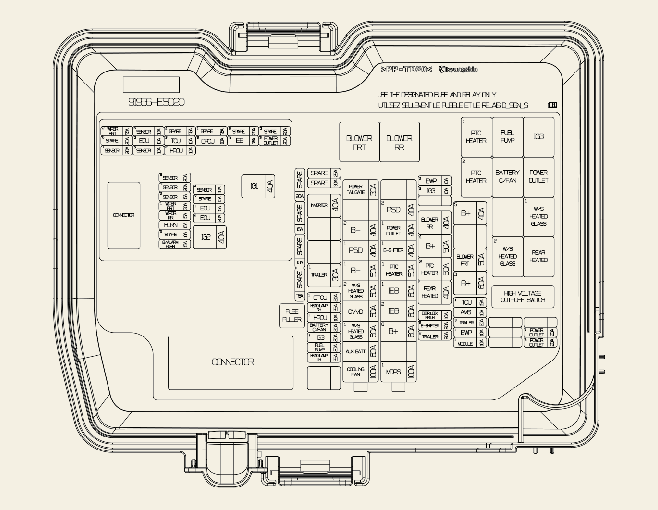

Engine compartment fuse panel
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
MULTI FUSE-1 |
COOLING FAN |
100A |
Cooling Fan Motor |
|
AUX BATT |
60A |
Parking Lithium Battery |
|
|
W/S HEATED GLASS1 |
50A |
Front Heated Glass LH |
|
|
CVVD |
50A |
Continuously Variable Vavle Duration |
|
|
W/S HEATED GLASS2 |
50A |
Front Heated Glass RH |
|
|
B+1 |
50A |
PDC JUNCTION BLOCK (IPS) |
|
|
PSD1 |
40A |
Power Sliding Door1 |
|
|
B+2 |
40A |
PDC JUNCTION BLOCK (IPS) |
|
|
SPARE |
40A |
NOT USED |
|
|
POWER TAILGATE |
30A |
Power Tailgate |
|
|
SPARE |
30A |
NOT USED |
|
|
MULTI FUSE-2 |
MDPS1*1 |
100A |
MDPS Unit (Motor Driven Power Steering Unit) |
|
SPARE |
80A |
NOT USED |
|
|
B+6 |
60A |
POWER (AFTER MAIN RELAY) |
|
|
IEB2 |
60A |
Integrated Electric Brake2 |
|
|
IEB1 |
60A |
Integrated Electric Brake1 |
|
|
PTC HEATER1 |
50A |
Positive Temperature Coefficient Heater1 |
|
|
E-SHIFTER1 |
40A |
VCU (Vehicle Control Unit) |
|
|
POWER OUTLET1 |
40A |
Power Outlet 1 |
|
|
PSD2 |
40A |
Power Sliding Door2 |
|
|
B+ |
30A |
NOT USED |
|
|
FUSE |
B+3 |
60A |
PDC JUNCTION BLOCK(E-SHIFTER, P/SEAT RH, P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, P/WINDOW RH, S/HEATER RH, S/HEATER FRT, P/SEAT REAR LH, SUNROOF, S/HEATER REAR RH, MASSAGE SEAT RR, WIRELESS DCU, CUPHOLER FRT, MODULE9 |
|
FRONT BLOWER |
50A |
Front Blower Motor |
|
|
SPARE |
50A |
NOT USED |
|
|
B+5 |
40A |
PDC JUCTION BLOCK(AMP, AIG BAG2, MODULE10, MULTIMEDIA2, CUPHOLDER REAR) |
|
|
REAR BLOWER |
40A |
Rear Blower Motor |
|
|
B+4 |
50A |
PDC JUNCTION BLCOK(LONG TERM LATCH RELAY, SHORT TERMLOAD, BDC2, BRAKE SWITCH, SUNROOF2, S/HEATER RR LH, DR LOCK, TAILGATE LATCH) |
|
|
PTC HEATER2 |
50A |
Positive Temperature Coefficient Heater2 |
|
|
REAR HEATED |
40A |
REAR HEATED GLASS, O/S MIRROR HEATED GLASS |
|
|
INVERTER |
40A |
Inverter |
|
|
SPARE |
40A |
NOT USED |
|
|
SPARE |
40A |
NOT USED |
|
|
TRAILER1 |
30A |
Trailer1 |
|
|
SPARE |
20A |
NOT USED |
|
|
AMS |
10A |
12V Battery Sensor |
|
|
E-SHIFTER2 |
20A |
VCU (Vehicle Control Unit) |
|
|
DOOR LOCK RR LH |
10A |
DOOR LOCK REAR LH |
|
|
TRAILER2 |
20A |
Trailer2 |
|
|
FUEL PUMP |
20A |
Fuel Pump Relay, Fuel Heater Relay |
|
|
HEAD LAMP LH |
25A |
Head Lamp Module LH |
|
|
TRAILER3 |
20A |
Trailer3 |
|
|
TCU1 |
15A |
Transmission Control Unit |
|
|
EWP1 |
10A |
Electric Water Pump1 |
|
|
MODULE1 |
10A |
VESS (Virtual Engine Sound System) |
|
|
HEAD LAMP RH |
25A |
Head Lamp Module RH |
|
|
OPCU1 |
20A |
Oil Pump Control Unit1 |
|
|
IG3 1 |
20A |
IGNITION3 1 |
|
|
HPCU1 |
10A |
Hybrid Power Control Unit |
|
Fuse Name |
Fuse rating |
Circuit Protected |
|
|---|---|---|---|
|
FUSE |
BATTERY C/FAN |
20A |
Battery Cooling Fan |
|
SPARE |
10A |
NOT USED |
|
|
SPARE |
10A |
NOT USED |
|
|
EWP2 |
10A |
Electric Water Pump2 |
|
|
IG3 2 |
10A |
IGNTION3 2 |
|
|
SPARE |
20A |
NOT USED |
|
|
SPARE |
10A |
NOT USED |
|
|
SPARE |
10A |
NOT USED |
|
|
POWER OUTLET3 |
20A |
Front Power Outlet |
|
|
POWER OUTLET4 |
20A |
Rear Power Outlet |
* 1. MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering).
|
Fuse Name |
Fuse rating |
Circuit Protected |
|---|---|---|
|
ECU1 |
15A |
Engine Control Unit1 |
|
ECU2 |
20A |
Engine Control Unit2 |
|
SENSOR1 |
20A |
Ignition Coil |
|
SENSOR2 |
15A |
Oxygen Sensor UP/DOWN, Oil Level Sensor |
|
SENSOR3 |
20A |
ECM (Engine Control Module) Power |
|
SENSOR9 |
20A |
Air Pump |
|
SENSOR4 |
10A |
Oil Control Valve, Variable Oil Pump Solenoid, Purge Control Solenoid Valve, Oil Level Sensor, ELCM, RCV, Cooling Fan Ignition, Fuel Pump Relay |
|
SENSOR5 |
10A |
NOT USED |
|
SPARE6 |
20A |
NOT USED |
|
SPARE7 |
15A |
NOT USED |
|
SPARE5 |
10A |
NOT USED |
|
HORN |
15A |
Horn |
|
B/ALARM HORN |
15A |
Burglar Alarm Horn |
|
WIPER FRT1 |
30A |
Wiper Front1 |
|
WIPER FRT2 |
7.5A |
Wiper Front2 |
|
WIPER RR |
15A |
Rear Wiper |
|
IG2 |
40A |
Ignition2 Relay |
|
IG1 |
40A |
Ignition1 Relay |
|
POWER OUTLET2 |
20A |
Power Outlet2 |
|
SPARE3 |
20A |
NOT USED |
|
ECU3 |
10A |
Engine Control Unit Ignition |
|
SENSOR6 |
10A |
CVVD (Continuously Variable Vavle Duration), Electric Water Pump Ignition |
|
HPCU2 |
15A |
Hybrid Power Control Unit2 |
|
IEB3 |
7.5A |
Integrated Electric Brake3 |
|
SPARE |
7.5A |
NOT USED |
|
SPARE1 |
7.5A |
NOT USED |
|
OPCU2 |
10A |
Oil Pump Control Unit2 |
|
TCU2 |
10A |
Transmission Control Unit |
|
SPARE2 |
20A |
NOT USED |
|
Relay Name |
Type |
|---|---|
|
BLOWER RELAY |
MINI |
|
BLOWER RR RELAY |
MINI |
|
BATTERY C/FAN RELAY |
MICRO |
|
FUEL PUMP RELAY |
MICRO |
|
W/S HEATED GLASS1 RELAY |
MICRO |
|
FUEL HEATER RELAY |
MICRO |
|
IG3 RELAY |
MICRO |
|
PTC HEATER1 RELAY |
MICRO |
|
PTC HEATER2 RELAY |
MICRO |
|
POWER OUTLET RELAY |
MICRO |
|
REAR HEATED RELAY |
MICRO |
|
W/S HEATED GLASS2 RELAY |
MICRO |
|
SPARE |
MICRO |

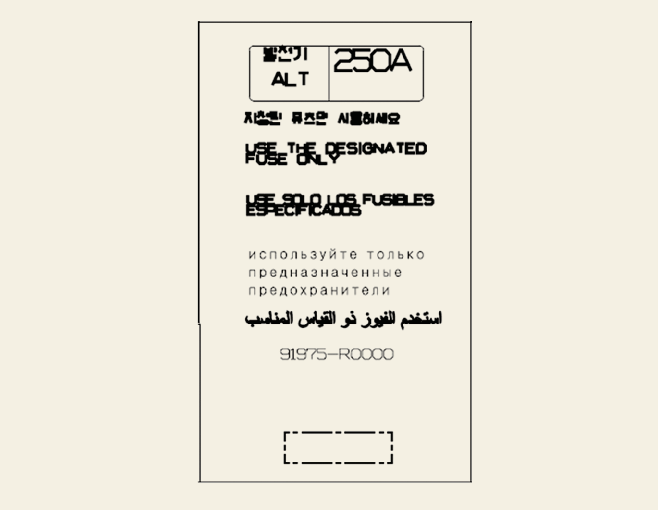

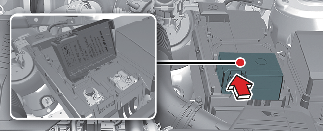

Engine compartment fuse panel (Battery terminal cover)
