Engine compartment

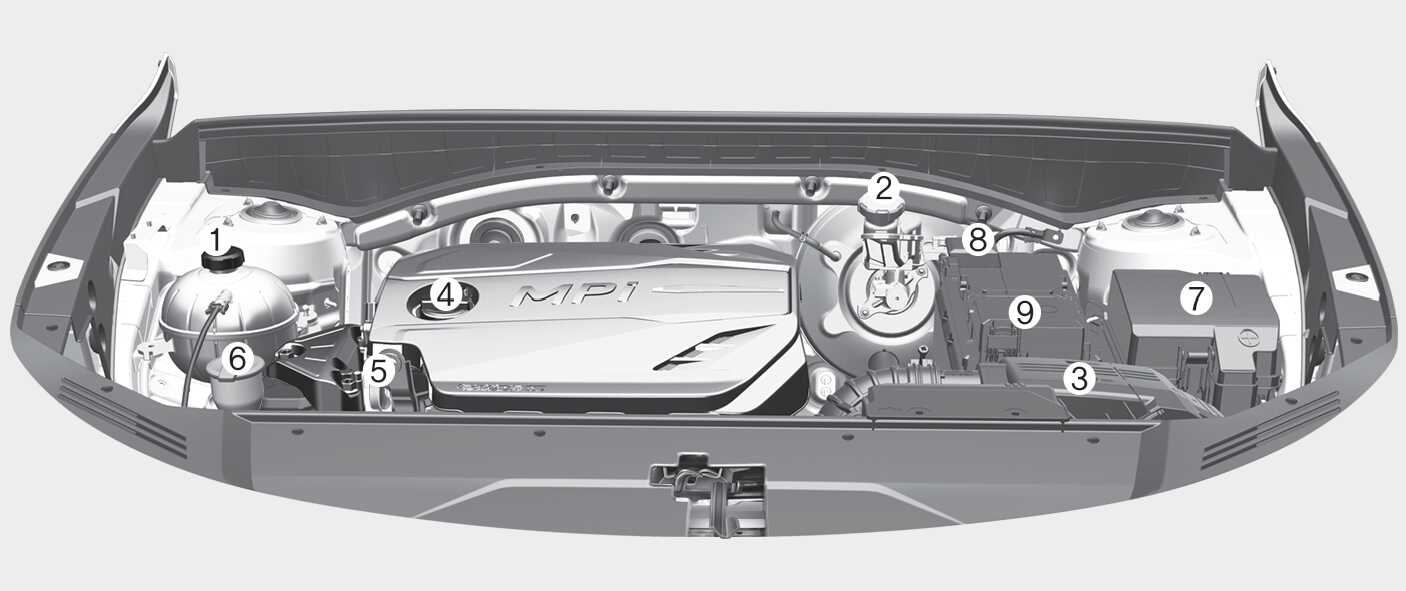

Figure 1. Smartstream G2.5
OMQ4070082L

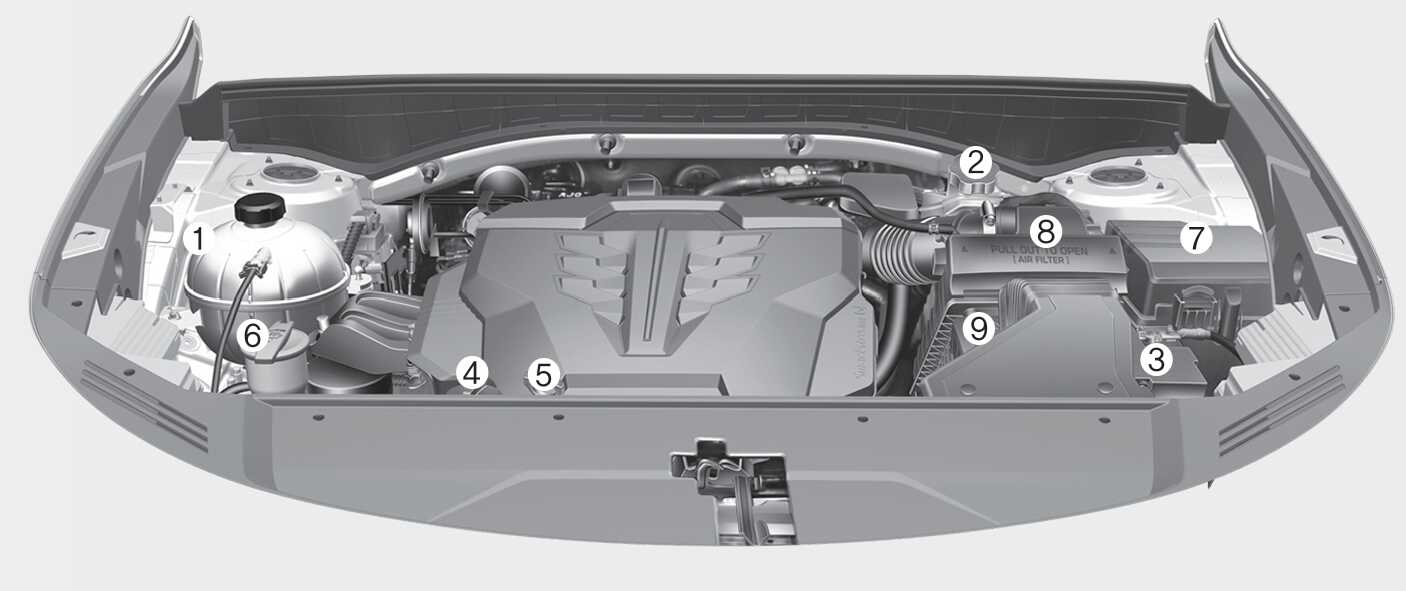

Figure 2. Smartstream G3.5
OMQ4070115BR

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Brake fluid reservoir Brake fluid

  3. Air cleaner Air cleaner

  4. Engine oil filler cap Engine oil (Gasoline)

  5. Engine oil dipstick Engine oil (Gasoline)

  6. Windshield washer fluid reservoir Washer fluid

  7. Fuse box Fuses

  8. Negative battery terminal Jump-starting, Battery

  9. Positive battery terminal Jump-starting, Battery

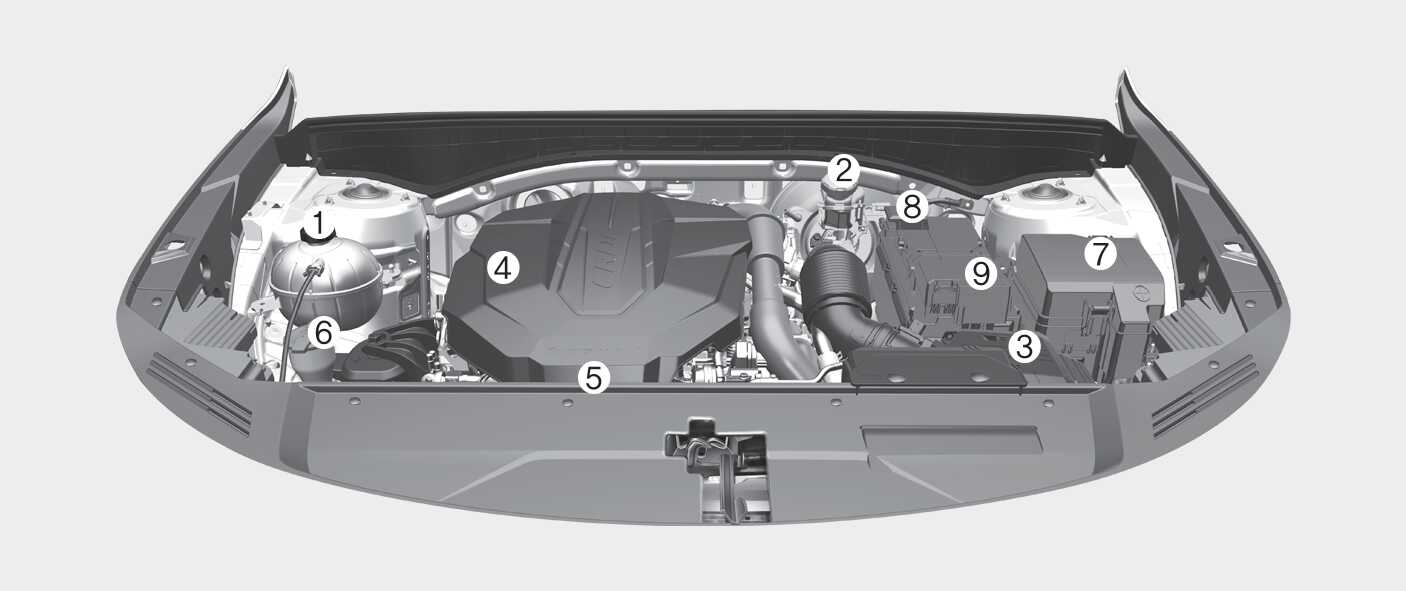

Figure 3. Smartstream D2.2
OMQ4070002

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir Engine coolant

  2. Brake fluid reservoir Brake fluid

  3. Air cleaner Air cleaner

  4. Engine oil filler cap Engine oil (diesel)

  5. Engine oil dipstick Engine oil (diesel)

  6. Windshield washer fluid reservoir Washer fluid

  7. Fuse box Fuses

  8. Negative battery terminal Jump-starting, Battery

  9. Positive battery terminal Jump-starting, Battery
