Engine compartment

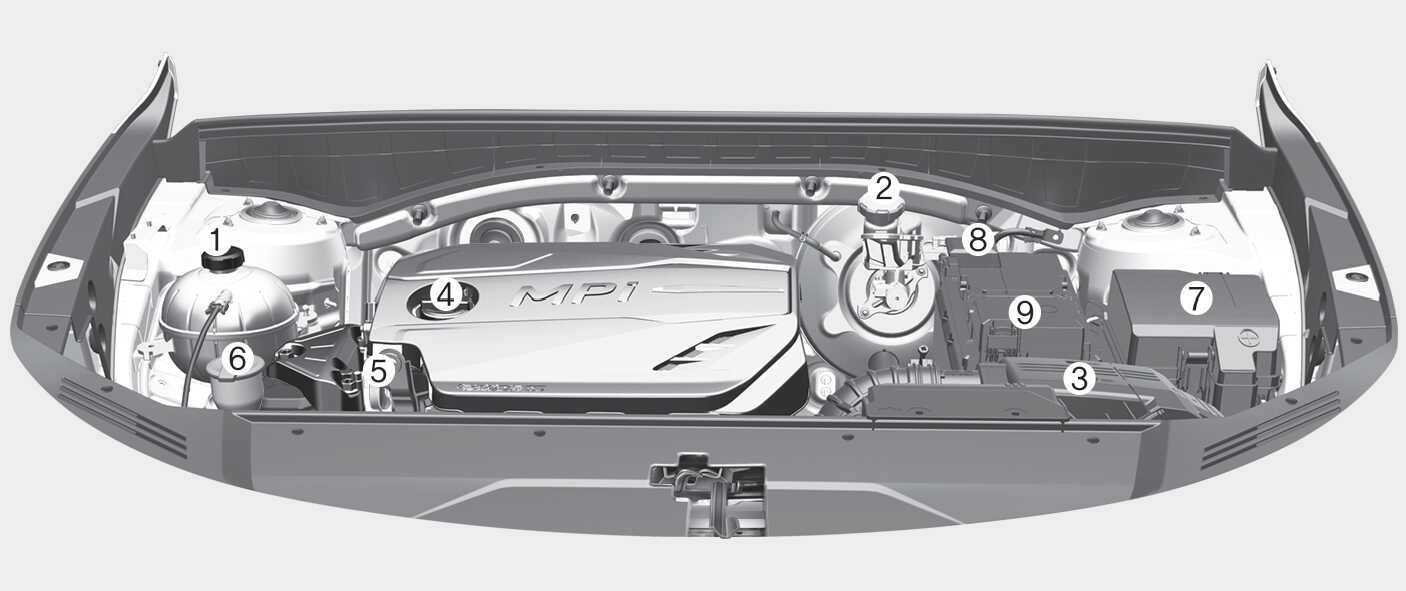

Figure 1. Smartstream G2.5
OMQ4070082L0

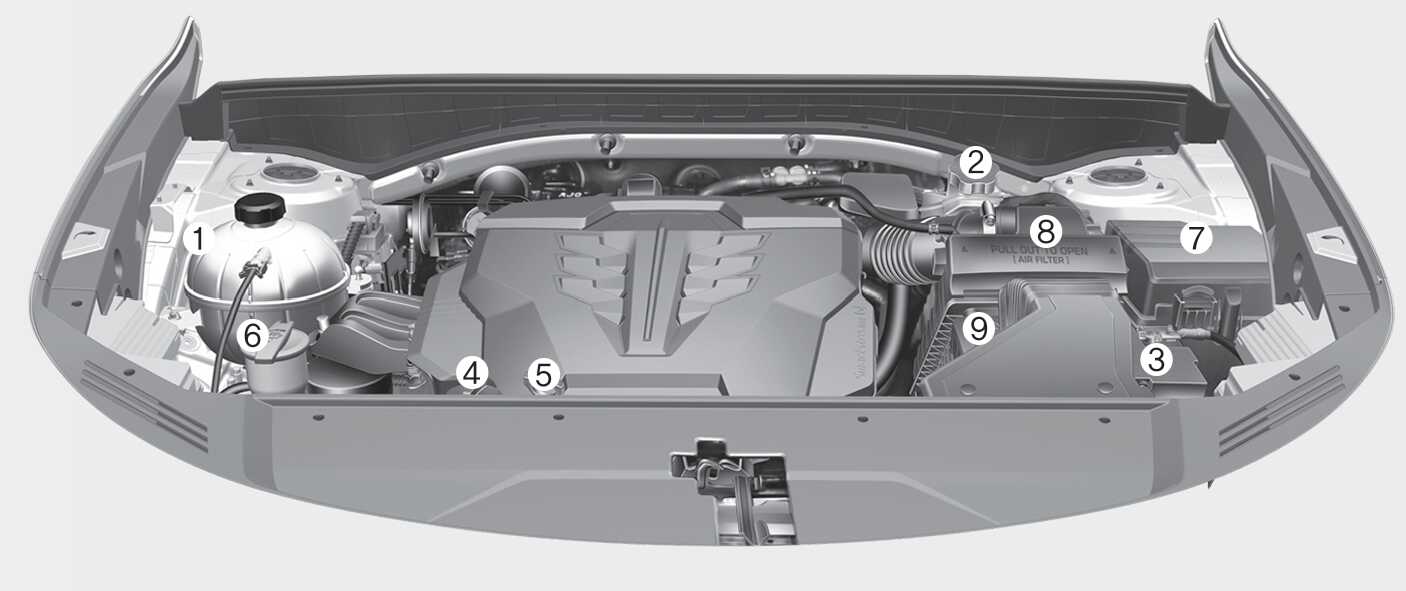

Figure 2. Smartstream G3.5
OMQ4070115BR0

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Brake fluid reservoir

  3. Air cleaner

  4. Engine oil filler cap

  5. Engine oil dipstick

  6. Windshield washer fluid reservoir

  7. Fuse box

  8. Negative battery terminal

  9. Positive battery terminal

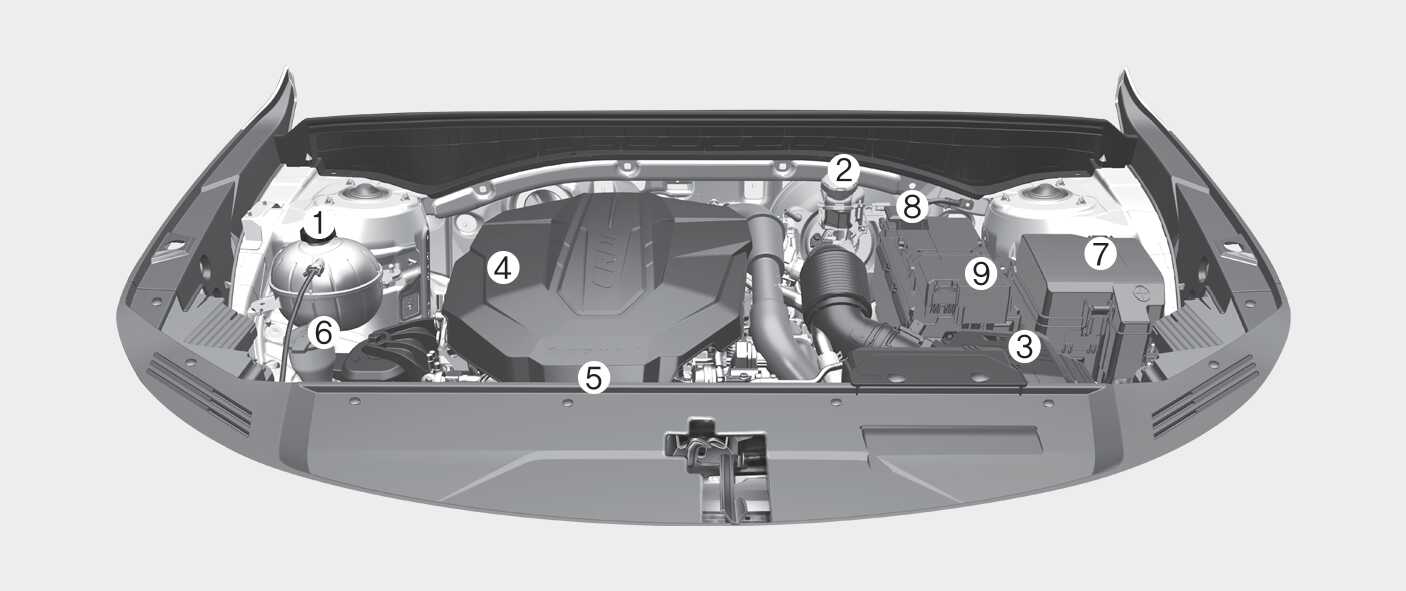

Figure 3. Smartstream D2.2
OMQ40700020

The actual engine room in the vehicle may differ from the illustration.

  1. Engine coolant reservoir

  2. Brake fluid reservoir

  3. Air cleaner

  4. Engine oil filler cap

  5. Engine oil dipstick

  6. Windshield washer fluid reservoir

  7. Fuse box

  8. Negative battery terminal

  9. Positive battery terminal
