Instrument cluster

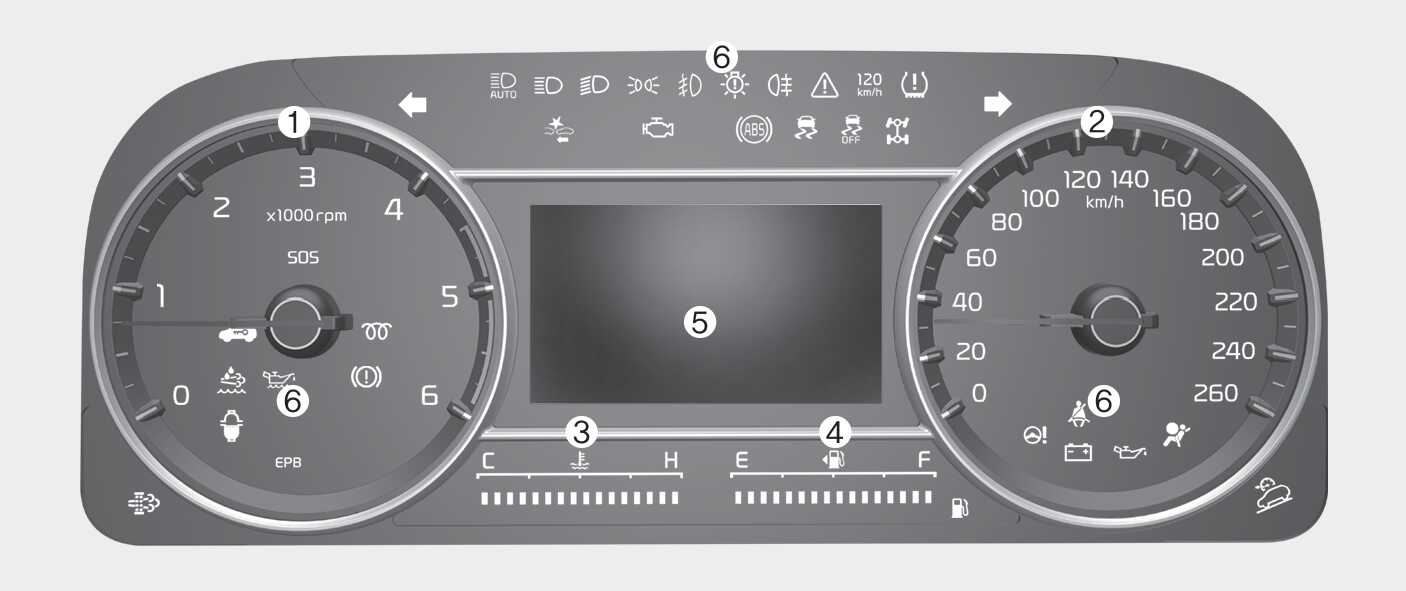

Figure 1. Conventional cluster (Type A)
OMQ4040100L

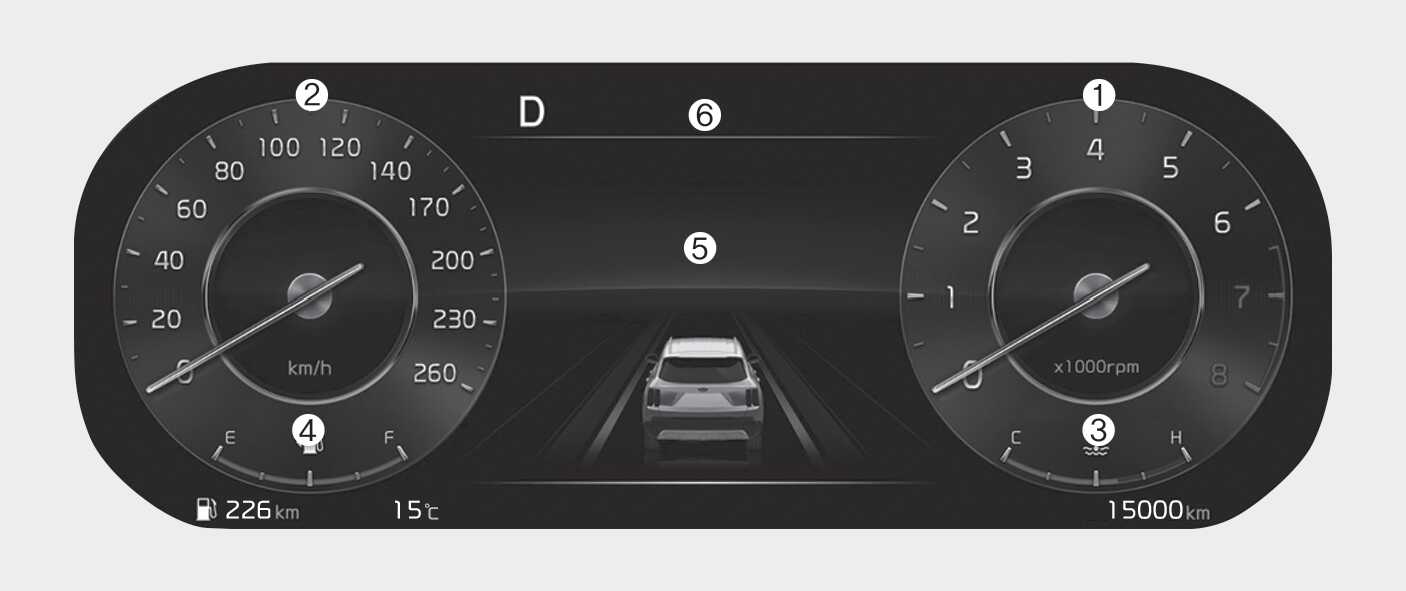

Figure 2. Full LCD cluster (Type B)
OMQ4040101

The actual cluster in the vehicle may differ from the illustration.

  1. Tachometer

  2. Speedometer

  3. Engine coolant temperature gauge

  4. Fuel gauge

  5. LCD display (including Trip computer)

  6. Warning and indicator lights
