Manual climate control system: (if equipped)

The manual climate control system uses cooling and heating to help maintain a pleasant environment inside the vehicle.

Figure 1. Type A
OMQ4040300

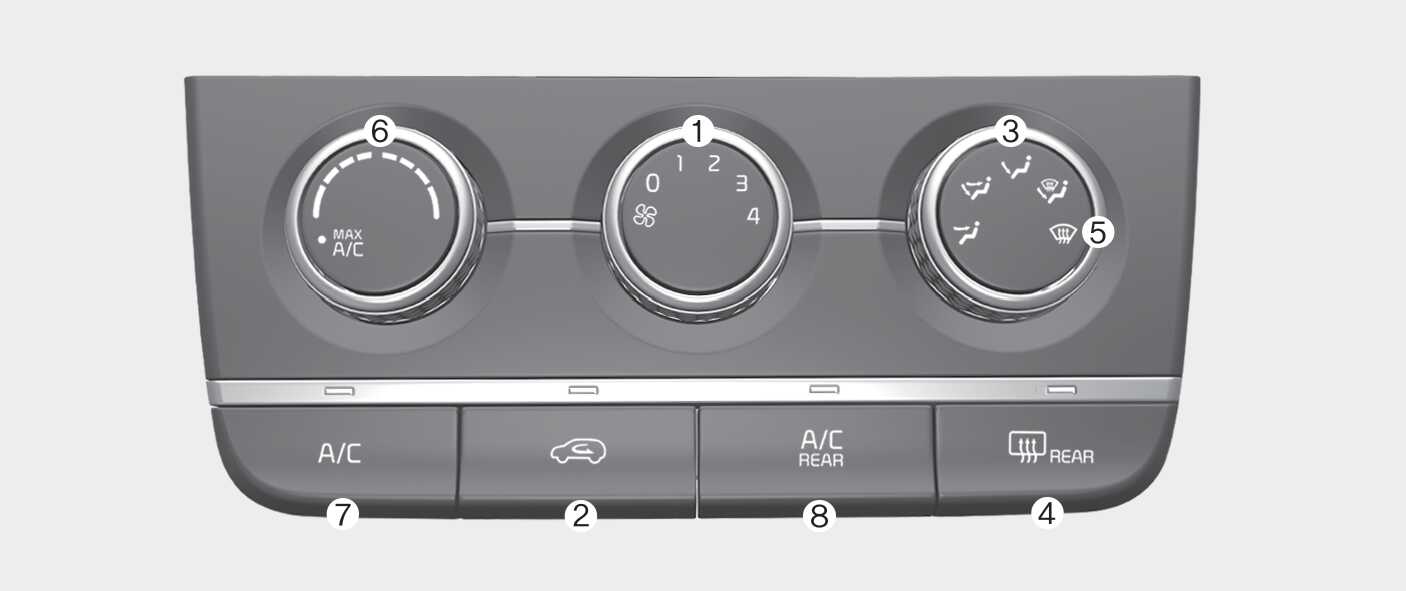

Figure 2. Type B
OMQ4040301
Figure 3. 3rd row seat
OMQ4040302

  1. Fan speed control knob

  2. Air intake control button

  3. Mode selection knob

  4. Rear window defroster button

  5. Front windshield defroster button

  6. Temperature control knob

  7. Air conditioning (A/C) button

  8. 3rd row seat Air conditioning ON/OFF button (if equipped)

  9. 3rd row seat Air conditioning Fan speed control knob (if equipped)

CAUTION

Operating the blower when the ignition switch or ENGINE START/STOP button is in the ON position could cause the battery to discharge. Operate the blower when the engine is running.
