Conditions and operation of the front passenger ODS
|
Condition detected by the occupant detection system |
Indicator/Warning light |
Devices |
|
|---|---|---|---|
|
" PASSENGER AIR BAG OFF" indicator light |
SRS warning light |
Front passenger air bag |
|
|
1. Adult 1 |
Off |
Off |
Activated |
|
2. Child Restraint System (CRS) with child under 12 months old 234 |
On |
Off |
Deactivated |
|
3. Unoccupied |
On |
Off |
Deactivated |
|
4. Malfunction in the system |
Off |
On |
Activated |
1. The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/her as a child depending on his/her physique and posture.
2. Do not allow children under 13 to ride in the front passenger seat. When a larger child who has outgrown a CRS sits in the front passenger seat, the system may recognize him/her as an adult depending upon his/her physique or sitting position.
3. Never install a CRS on the front passenger seat.
4. The PASSENGER AIR BAG OFF (
) indicator may turn on or off when a child above 12 months to 12 years old (with or without a CRS) sits in the front passenger seat. This is a normal condition.
-
Do not install a child restraint seat in the passenger seat when the seat is heavily soaked with any type of liquid.
-
Do not modify the ODS. This may damage the system and prevent its proper function in a collision.
-
Do not use car seat cushions that cover up the surface of the seat and aftermarket manufactured passenger seat heaters.
-
After conducting car interior cleaning using steam or detergent, the seat should be dried properly. Afterward, check for normal operation of the PASSENGER AIR BAG OFF (
) and air bag warning lights. -
Any service related to the passenger seat and the ODS must be done at an authorized Kia dealership.
-
After the passenger seat has been removed or installed for repair purposes, check for normal operation of the PASSENGER AIR BAG OFF(
) and air bag warning lights with a person seated or not seated in the passenger seat. -
When the PASSENGER AIR BAG OFF (
) symbol is appeared, the passenger air bag system will not operate. The passenger air bag system will operate when necessary if the symbol is not illuminated. -
Do not modify or replace the front passenger seat. Don't place anything on or attach anything such as a blanket, front seat cover or aftermarket seat heater to the front passenger seat. This can adversely affect the Occupant Detection System.
Occupant Detection System
Riding in an improper position adversely affects the Occupant Detection System and may result in the deactivation of the front passenger airbag. It is important for the driver to instruct the passenger as to the proper seating instructions as contained in this manual.
-

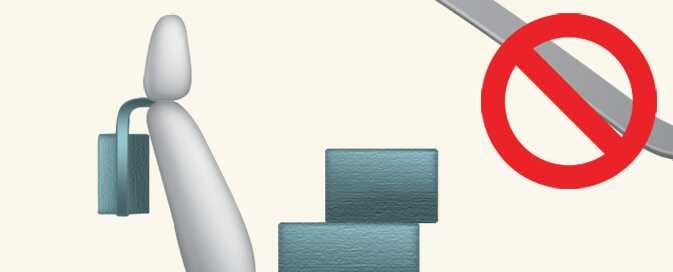

Do not place a heavy load in the front passenger seatback pocket or on the front passenger seat.
ONQ5021044 -

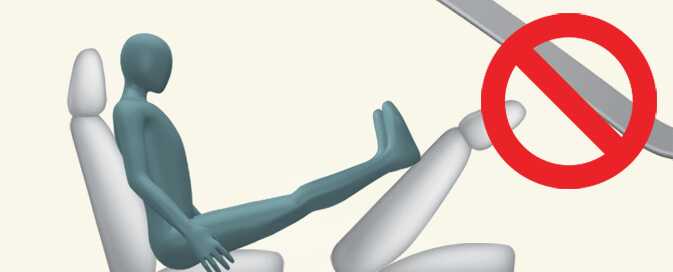

Do not place feet on the front passenger seatback.
ONQ5021045 -

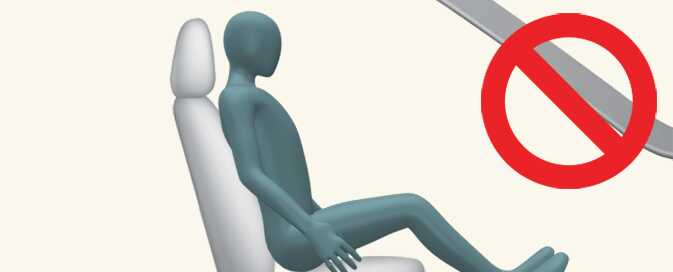

Never sit with hips shifted towards the front of the seat.
ONQ5021047 -

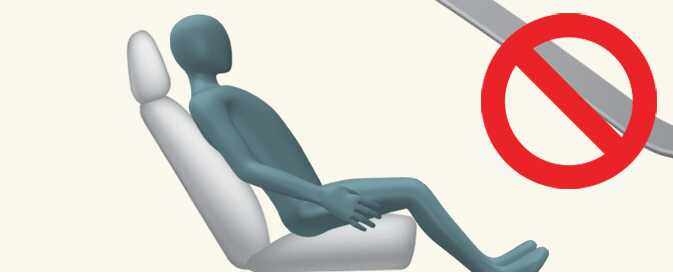

Never excessively recline the front passenger seatback.
ONQ5021049 -

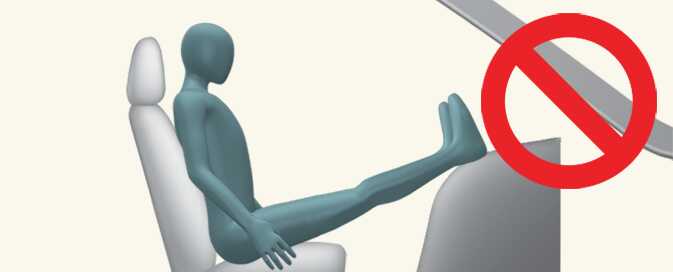

Never place feet on the instrument panel.
ONQ5021046 -
Never lean on the door or center console.
-

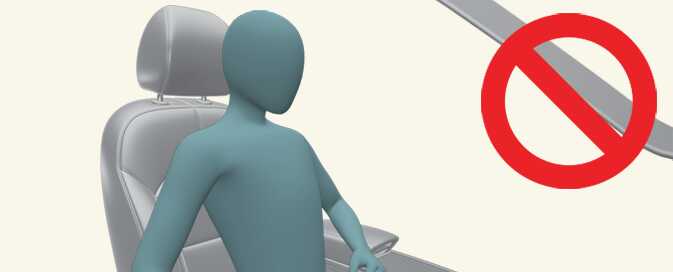

Never sit on one side of the front passenger seat.
ONQ5021048 -
Do not use car seat accessories such as thick blankets and cushions which cover up the car seat surface.
-
Do not place electronic devices such as laptops or DVD players or heavy objects such as a large quantity of water bottles on the passenger seat.
-

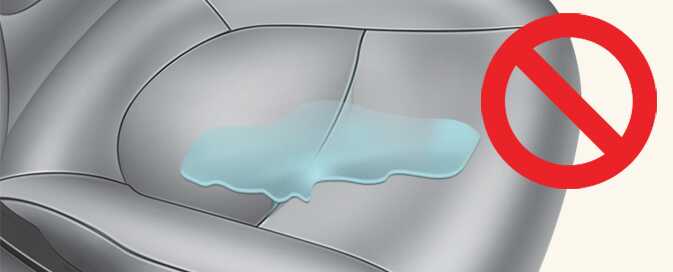

Wet passenger seat:
Do not spill liquid in the passenger seat. Spilled liquid on the passenger seat may cause the air bag warning light to appear or malfunction. If any liquid is spilled, make sure the seat has been completely dried before driving with a passenger on that seat.
ONQ5021052
 OCV031081 |

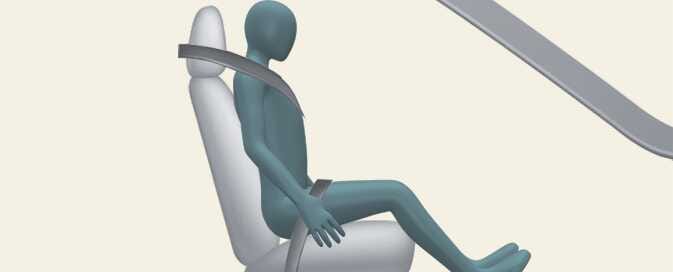

When an adult is seated in the front passenger seat, if the PASSENGER AIR BAG OFF () indicator is on, change the ENGINE START/STOP button to the OFF position and ask the passenger to sit properly (sitting upright with the seatback in an upright position, centered on the seat cushion with their seat belt on, legs comfortably extended and their feet on the floor). Restart the vehicle and have the person remain in that position. This will allow the system to detect the person and to enable the passenger air bag.
If the PASSENGER AIR BAG OFF () indicator is still on, ask the passenger to move to the rear seat.
PASSENGER AIR BAG OFF () light
Do not allow an adult passenger to ride in the front seat when the PASSENGER AIR BAG OFF () indicator is illuminated, because the air bag will not deploy in the event of a collision. Have the passenger reposition in the seat. Failure to properly positionyourself may lead to air bag deactivation resulting in air bag non-deployment in a collision. If the PASSENGER AIR BAG OFF () indicator remains illuminated after repositioned properly and the vehicle is restarted, have the passenger move to the rear seat because the passenger's front air bag will not deploy.
The PASSENGER AIR BAG OFF () indicator does not illuminate if
the front passenger seat is occupied. The occupant detection sensor will then
classify the front passenger after several more seconds.
-
Even though your vehicle is equipped with the Occupant Detection System, never install a Child Restraint System in the front passenger's seat. A deploying air bag can forcefully strike a child resulting in serious injuries or death.
Any child under age 13 should ride in the rear seat. Children too large for child restraints should use the available lap/shoulder belts. No matter what type of crash, children of all ages generally speaking are safer when restrained in the rear seat.
If the ODS is not working properly, the Supplemental Restraint System (SRS) air bag warning light on the instrument panel will appear because the passenger's front air bag is connected with the ODS. If there is a malfunction of the ODS the PASSENGER AIR BAG OFF () indicator will not appear. In this case, the passenger's front airbag will inflate in frontal impact crashes even if there is no occupant in the front passenger seat.
