How to connect detachable connector

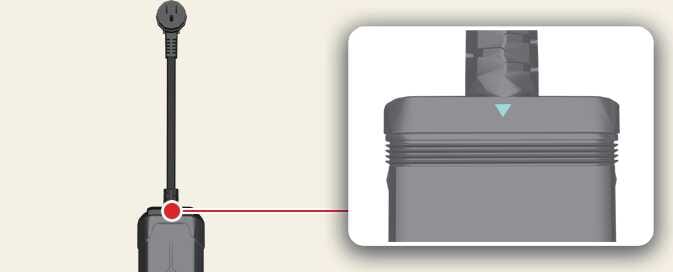

Connect the detachable connector to control box controller socket.

Check the arrow on the top of the connector is no longer visible.

ONQ5PQ015017N

The power lamp (green) illuminates when the ICCB is powered on.

NOTE

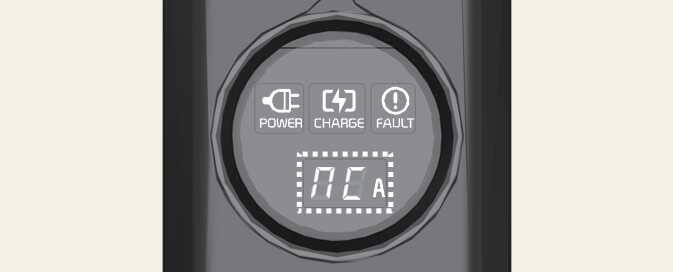

If “NC” is displayed on the ICCB display panel or if the arrow is still visible reconnect the detachable connector properly.

ONQ5PQ015016N
