Energy flow
The hybrid system informs you about energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

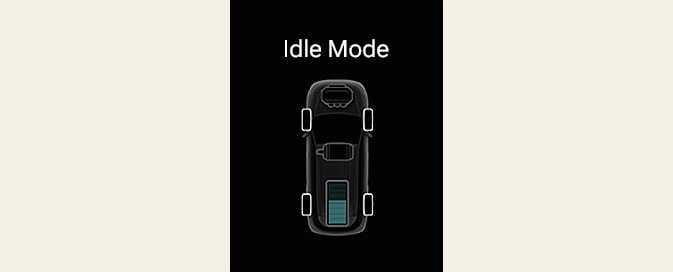

Vehicle stop
 OMQ4PHQ013024L |
The vehicle is stopped.
(No energy flow)

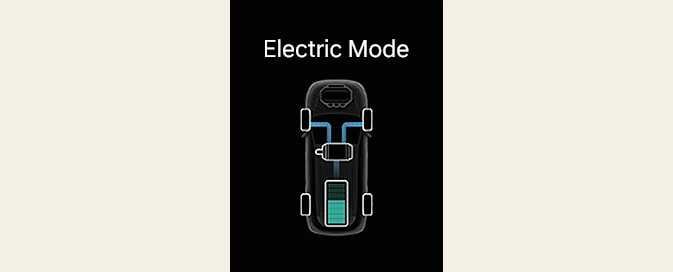

EV propulsion
 OMQ4PHQ013025L |
Only motor power is used to drive the vehicle.
()

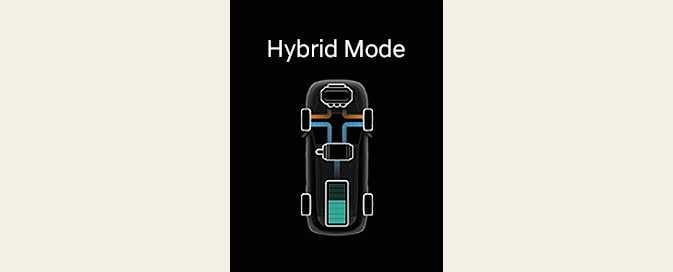

Power assist
 OMQ4PHQ013026L |
Both the motor and the engine power are used to drive the vehicle.
()

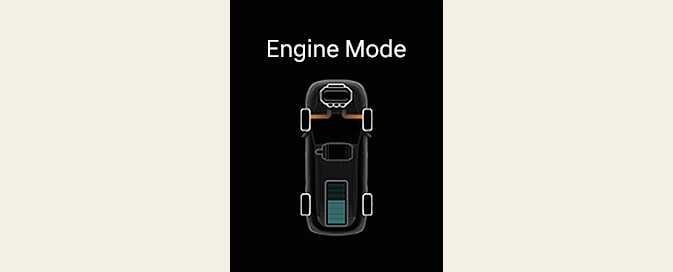

Engine only propulsion
 OMQ4PHQ013027L |
Only the engine power is used to drive the vehicle.
()

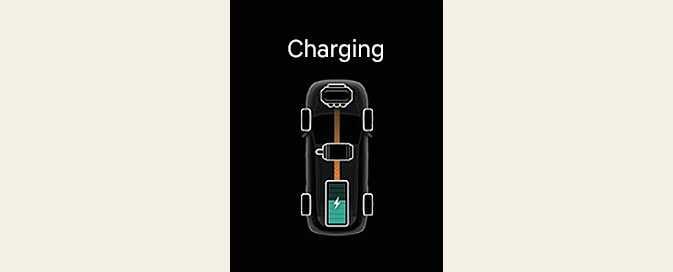

Engine generation
 OMQ4PHQ013028L |
When the vehicle is stopped, the high-voltage battery is charged by the engine.
()

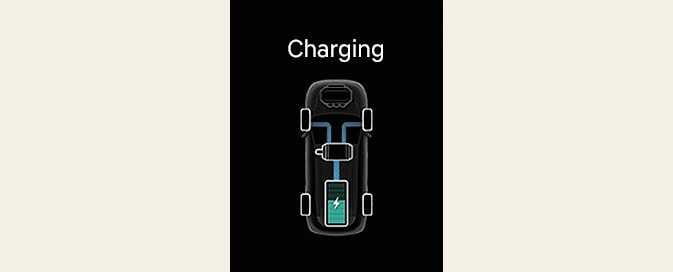

Regeneration
 OMQ4PHQ013034L |
The high-voltage battery is charged by the regenerative brake system.
()

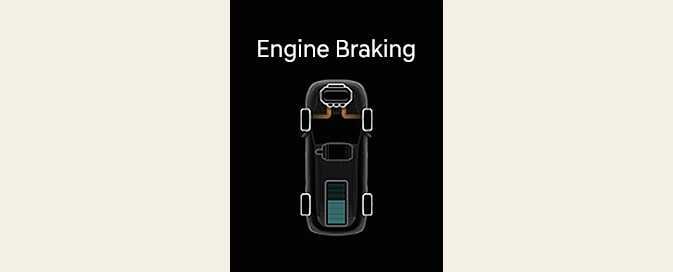

Engine brake
 OMQ4PHQ013029L |
Engine braking is used to decelerate the vehicle.
()

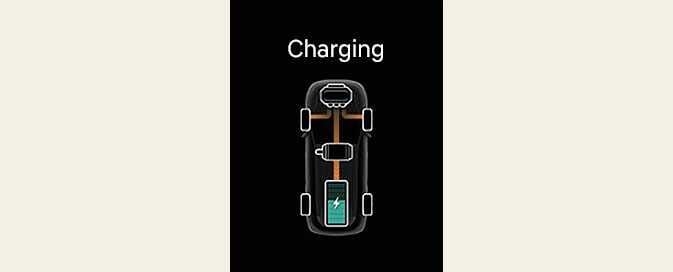

Power reserve
 OMQ4PHQ013030L |
The engine is simultaneously used to drive the vehicle and to charge the high-voltage battery.
()

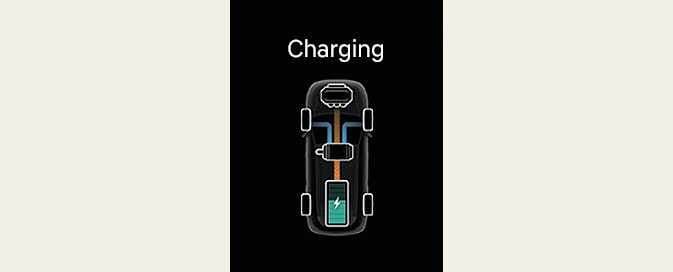

Engine generation/motor drive
 OMQ4PHQ013032L |
The engine charges the high-voltage battery. Motor power is used to drive the vehicle.
()
Engine generation/regeneration
|
OMQ4PHQ013032L |
The engine and regenerative brake system charges the high-voltage battery.
()
Engine brake/regeneration
|
OMQ4PHQ013032L |
The engine braking is simultaneously used to decelerate the vehicle and to charge the high-voltage battery.
()

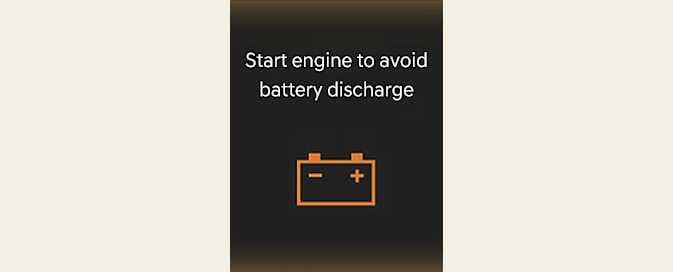

Start engine to avoid battery discharge
 OMQ4PHQ013043L |
If the engine is not turned on with the ENGINE START/STOP button in ACC or ON for a while, the battery can be discharged. Turn on the engine to prevent 12V battery from discharge.
